The Muscle of The Drone: A Complete Guide To The FPV Electronic Speed Controller (ESC)

If the flight controller is the brain of an FPV drone, then the Electronic Speed Controller (ESC) is unquestionably its muscle. While the FC processes data and decides what needs to be done, the ESC is the workhorse that actually executes those commands. It takes low-power control signals, converts them into high-current bursts of three-phase electricity, and precisely spins the brushless motors at the required speeds. Without a reliable ESC, even the most finely tuned flight controller is useless—the motors simply won't turn. This article provides an in-depth look at what an ESC is, how it works, the key specifications to consider, and how to choose the right one for your FPV build.

What is an FPV ESC?

An FPV ESC is an electronic circuit board designed to control the speed and direction of a brushless DC motor. In a multirotor drone, each motor typically has its own dedicated ESC (or they are combined into a single 4-in-1 board). The ESC receives throttle signals from the flight controller, usually in digital protocols like DShot, and then rapidly switches the battery's DC power on and off across the motor's three phases to generate a rotating magnetic field. This magnetic field interacts with the motor's permanent magnets, causing the rotor to spin.

The Inner Workings: How Does an ESC Drive a Motor?

Unlike a brushed motor that uses mechanical brushes to switch polarity, a brushless motor requires electronic commutation—the ESC must know the motor's rotor position to apply power to the correct coils at the exact right time. This is achieved through one of two methods:

1. Sensorless (Standard for FPV): The ESC uses Back EMF (Electromotive Force) to detect the rotor's position. As the motor spins, the unpowered phase generates a small voltage. By monitoring this voltage, the ESC determines where the rotor is and when to energize the next coil. This method is lightweight, cost-effective, and ideal for high-speed FPV applications.

2. Sensored (Rare in FPV): Some ESCs use physical Hall-effect sensors inside the motor to track rotor position. While this provides better low-speed torque and smoother startup, it adds weight and complexity, making it less popular for racing and freestyle drones.

The ESC's operation revolves around a high-frequency switching process driven by MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) . These tiny electronic switches turn the battery voltage on and off thousands of times per second, creating a sinusoidal current waveform that drives the motor smoothly. The faster the switching frequency, the more precise the motor control and the quieter the operation.

Key Firmware: BLHeli and Its Evolutions

The ESC's intelligence is governed by firmware. In the FPV world, the dominant player is BLHeli and its open-source variants. Over the years, this firmware has evolved significantly:

• BLHeli_S: The first mainstream digital protocol, providing reliable performance with good compatibility.

• BLHeli_32: A major leap forward. It runs on 32-bit microprocessors (as opposed to 8-bit), offering higher resolution, smoother throttle response, active braking, and a user-friendly configuration interface (BLHeliSuite) for tuning parameters like timing, PWM frequency, and startup power.

• AM32: An emerging open-source alternative that is gaining traction for its transparency and performance on 32-bit hardware.

Critical ESC Specifications to Consider

Choosing the right ESC is crucial for both performance and reliability. Here are the most important specs you need to understand:

• Current Rating (Amps - A): This is the maximum continuous current the ESC can handle. It is typically written as "35A," "45A," or "60A." Always choose an ESC with a current rating that exceeds the maximum current your motors will draw at full throttle. Undersizing can lead to overheating and catastrophic failure (often resulting in a mid-flight "desync"). A good rule of thumb is to allow a 15-20% safety margin.

• Voltage Rating (Battery Cell Count - S): The ESC must support your battery voltage. Most modern ESCs are rated from 2S (7.4V) up to 8S (33.6V). Always check the maximum voltage limit before connecting your battery.

• Protocol Support: Modern FPV ESCs use digital protocols to communicate with the flight controller. DShot (specifically DShot600, DShot1200, or DShot3000) is the gold standard. It offers high refresh rates, digital error-checking, and does not require calibration (unlike older analog protocols like PWM or Oneshot). Higher DShot numbers mean faster data transmission, which translates to quicker motor response.

• Form Factor:

  • Individual ESCs: Four separate boards, each wired to its own motor. These are mounted on the arms of the drone for better heat dissipation but require more soldering and add wiring clutter.

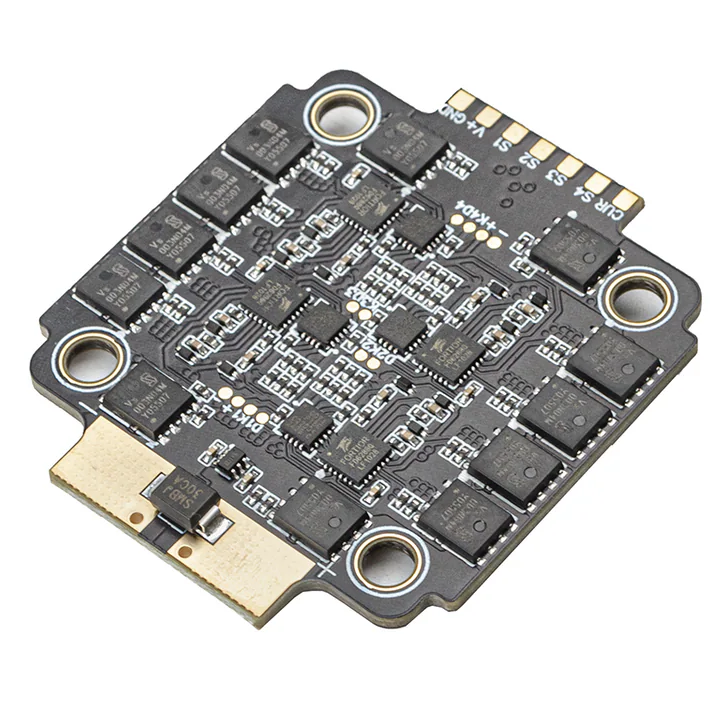

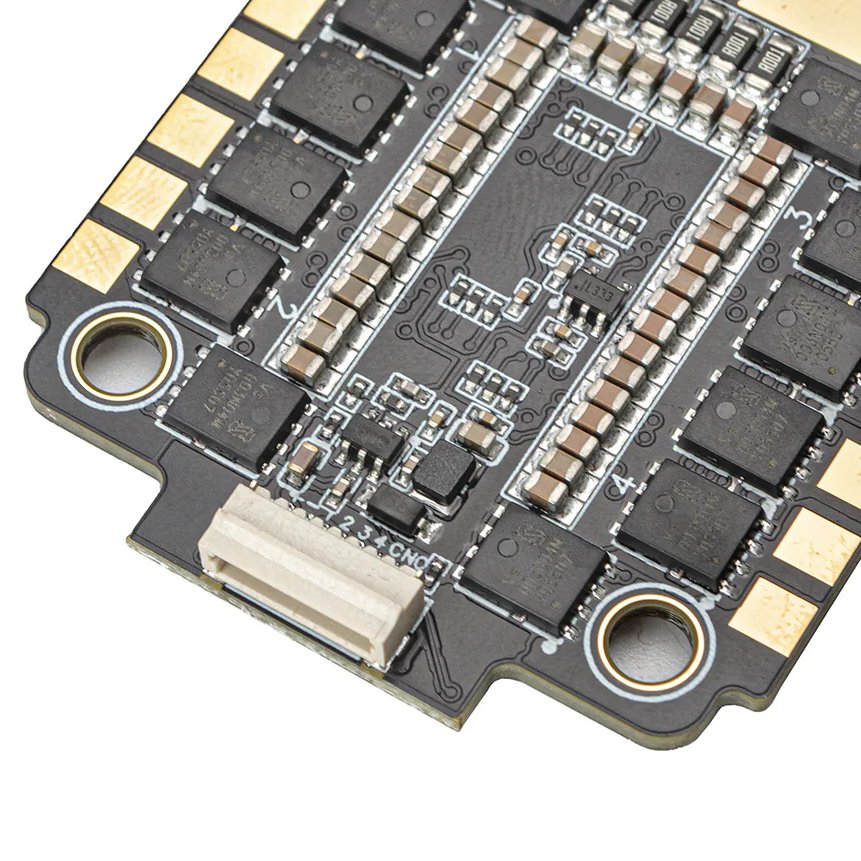

  • 4-in-1 ESC: A single board containing four ESCs. This saves space, reduces weight, and simplifies wiring, making it the dominant choice in modern builds. However, if one ESC fails, the entire board must be replaced.

Active Braking (Damped Light)

One of the most transformative features in modern FPV ESCs is active braking, also known as "Damped Light." When you reduce throttle, the ESC actively slows down the motor by briefly reversing the current flow, rather than letting it spin down naturally. This provides two major benefits:

• Instant Throttle Response: The motor can speed up and slow down almost instantly, making the drone feel more "locked in" and responsive.

• Improved Stability: Faster deceleration allows the flight controller to correct oscillations more aggressively, improving overall flight smoothness, especially during fast dives and flips.

Common ESC Issues and How to Avoid Them

Understanding the risks can save you from crashes:

• Desync: This occurs when the ESC loses track of the motor's rotor position, causing the motor to stutter or stop completely mid-flight. It often results from incorrect timing settings, aggressive PID tuning, or a faulty ESC. Updating firmware and adjusting motor timing in BLHeliSuite can usually resolve this.

• Overheating: ESCs generate significant heat. Ensure adequate airflow over the board (especially for 4-in-1 units) and avoid burying them in foam or tight compartments.

• Capacitor Requirements: High-current draws cause voltage spikes that can damage the ESC. Soldering a low-ESR capacitor (typically 35V, 470-1000µF) to the battery leads is a simple and effective way to smooth out these spikes and protect your electronics.

The Future of ESCs

The trend in ESC technology is moving toward even higher integration and performance. We are seeing the rise of AIO (All-In-One) boards that combine the flight controller and 4-in-1 ESC into a single, compact unit—ideal for sub-250g micro drones. Additionally, the adoption of higher-frequency PWM and predictive control algorithms continues to push the boundaries of how fast a motor can respond, giving pilots an increasingly direct and precise connection to their aircraft.

In conclusion, the ESC is the powerhouse that turns pilot commands into physical motion. Choosing the right ESC—with adequate current headroom, compatible firmware, and the right form factor—is essential for building a reliable, high-performance FPV drone. By understanding the fundamentals of how ESCs operate and what their specifications mean, you can avoid common pitfalls like desyncs and burnouts, and focus on what truly matters: flying hard and having fun.
