The Brain of The Drone: A Comprehensive Guide To The FPV Flight Controller

In the world of First-Person View (FPV) drones, the flight controller (often abbreviated as FC) is the undisputed nerve center. While the motors provide the muscle and the camera offers the vision, it is the flight controller that acts as the brain, processing data and making split-second decisions to keep the aircraft stable and responsive. Without it, a pile of carbon fiber and electronics is simply a brick with propellers. This article dives deep into what an FPV flight controller is, how it works, and why it is the most critical component of any racing or freestyle drone.

What Exactly is an FPV Flight Controller?

At its core, an FPV flight controller is a specialized printed circuit board (PCB) running complex firmware. Its primary job is to interpret pilot inputs from the radio receiver, calculate the drone's current orientation using an array of onboard sensors, and instantly adjust the speed of each motor to execute the pilot's commands. It manages the delicate dance of physics that keeps a multirotor airborne and agile.

The Inner Workings: How Does It Think?

The "thinking" process of a flight controller relies on a high-speed feedback loop that repeats thousands of times per second. This loop consists of three main steps:

1. Sensing (Perception): The FC relies heavily on its built-in sensors, specifically the Inertial Measurement Unit (IMU) . The IMU typically contains a 3-axis gyroscope (which measures angular velocity) and a 3-axis accelerometer (which measures gravity). The gyroscope detects how fast the drone is tilting, while the accelerometer helps determine the absolute horizon. By combining these data points, the FC knows its precise attitude (pitch, roll, and yaw) at any given moment.

2. Processing (Decision): This is where the firmware comes into play. The most popular firmware in the FPV scene is Betaflight, known for its razor-sharp responsiveness. Others include INAV (designed for navigation and GPS waypoint missions) and ArduPilot (used for complex autonomous vehicles). The firmware runs sophisticated PID (Proportional-Integral-Derivative) controllers. These algorithms continuously compare the "current attitude" against the "desired attitude" (as commanded by the pilot's stick movements) and calculate the precise amount of thrust correction needed to achieve the goal smoothly.

3. Actuating (Action): Once the calculations are complete, the FC sends digital signals (usually PWM or DShot protocols) to the Electronic Speed Controllers (ESCs) . By rapidly increasing the speed of one motor while decreasing another, the FC physically corrects the drone's orientation. For example, if the drone is tilted forward, the FC will speed up the rear motors to bring it back to level—all in a fraction of a millisecond.

Beyond Basic Flight: Integrated Features

Modern FPV flight controllers are not just for flying. They are highly integrated hubs that manage almost every electronic aspect of the craft:

• On-Screen Display (OSD): The FC overlays critical telemetry data (battery voltage, current draw, flight time, and speed) directly onto the video feed transmitted back to the pilot's goggles.

• Blackbox Logging: Similar to a flight recorder on an airplane, this feature stores detailed sensor and motor data for post-flight analysis, which is invaluable for tuning and crash investigation.

• Battery Monitoring: Built-in voltage dividers and current sensors allow the FC to provide low-battery warnings to the pilot and calculate remaining flight time.

• Beepers and LEDs: The FC controls onboard buzzers for locating lost drones in thick grass, as well as customizable LED strips for aesthetics and orientation.

How to Choose the Right Flight Controller

When selecting an FC for your build, consider the following technical specifications:

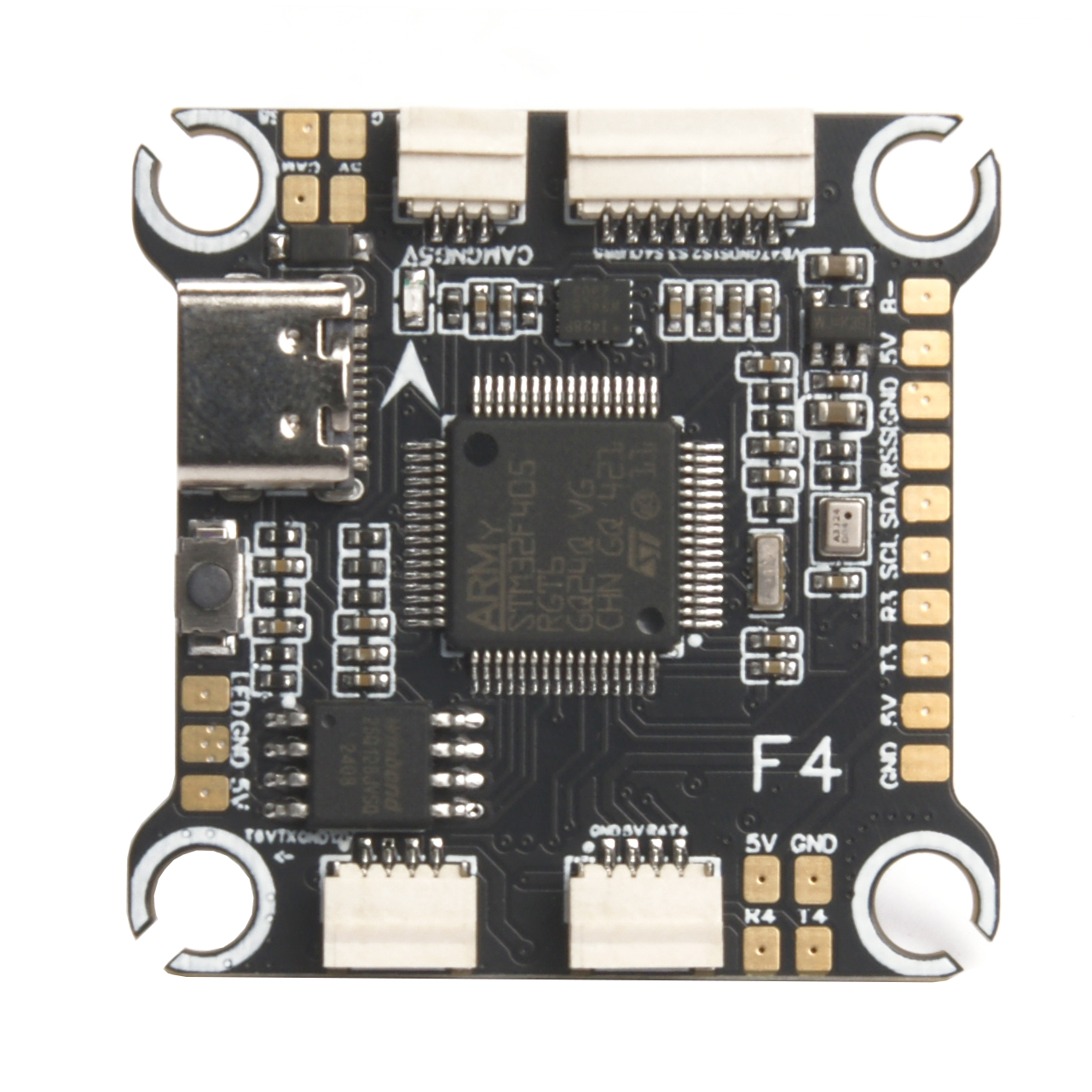

• Processor (MCU): Look for the chip used. The STM32 F4 and F7 series are the current industry standards. An F7 processor has more speed and memory than an F4, allowing it to run faster PID loops and handle more complex filtering without lag.

• Gyroscope: As discussed in our previous analysis, the gyro defines the "feel" of the drone. Modern high-performance gyros like the ICM42688P or MPU6000 are preferred for their low noise and high sensitivity.

• Mounting Pattern: Ensure the board's hole pattern (typically 30.5mm x 30.5mm for full-size or 20mm x 20mm for micro drones) fits your frame.

• Power Input: Verify the FC can handle your battery voltage, commonly ranging from 2S (7.4V) up to 8S (33.6V).

• Connected ESCs: If you are buying a stack (FC + ESC combo), ensure they share a matching communication protocol (often via a 8-pin harness) for a clean build.

The Future of FPV Controllers

The evolution of flight controllers is pushing toward greater integration. We are now seeing "AIO" (All-In-One) boards that combine the FC, ESCs, and even a built-in ELRS receiver on a single, tiny PCB for ultra-light builds. Furthermore, the introduction of more powerful microprocessors is enabling advanced features like optical flow, GPS rescue, and even rudimentary object avoidance, making FPV drones smarter and safer than ever.

In conclusion, the flight controller is the soul of an FPV drone. It bridges the gap between the pilot's reflexes and the laws of aerodynamics. Whether you are a freestyle pilot performing a "Matty Flip" or a racer threading a needle at 120 mph, your success depends heavily on the tiny, powerful computer sitting at the center of your aircraft. Understanding its functions is not just technical knowledge; it is the first step toward mastering the art of FPV flight.
