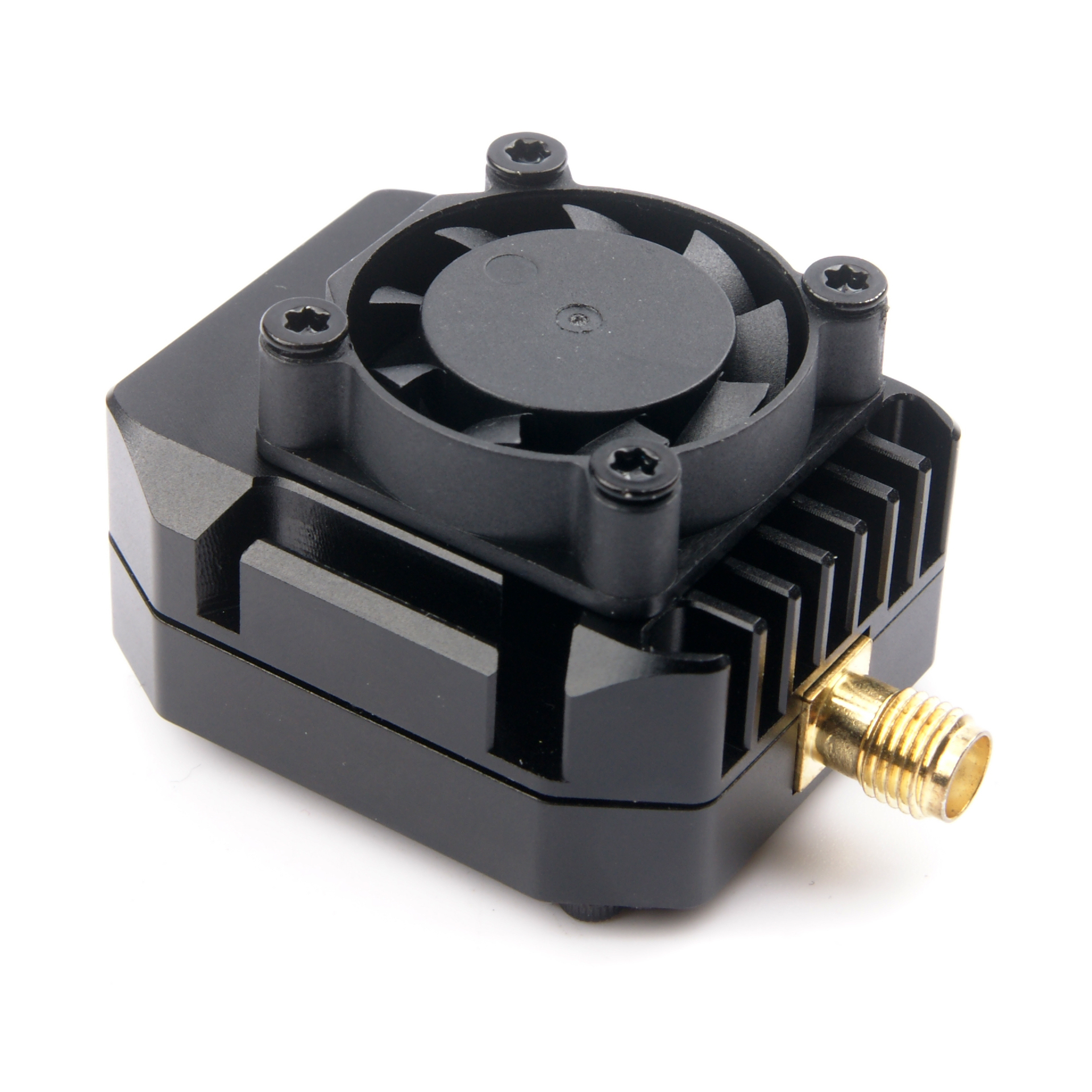

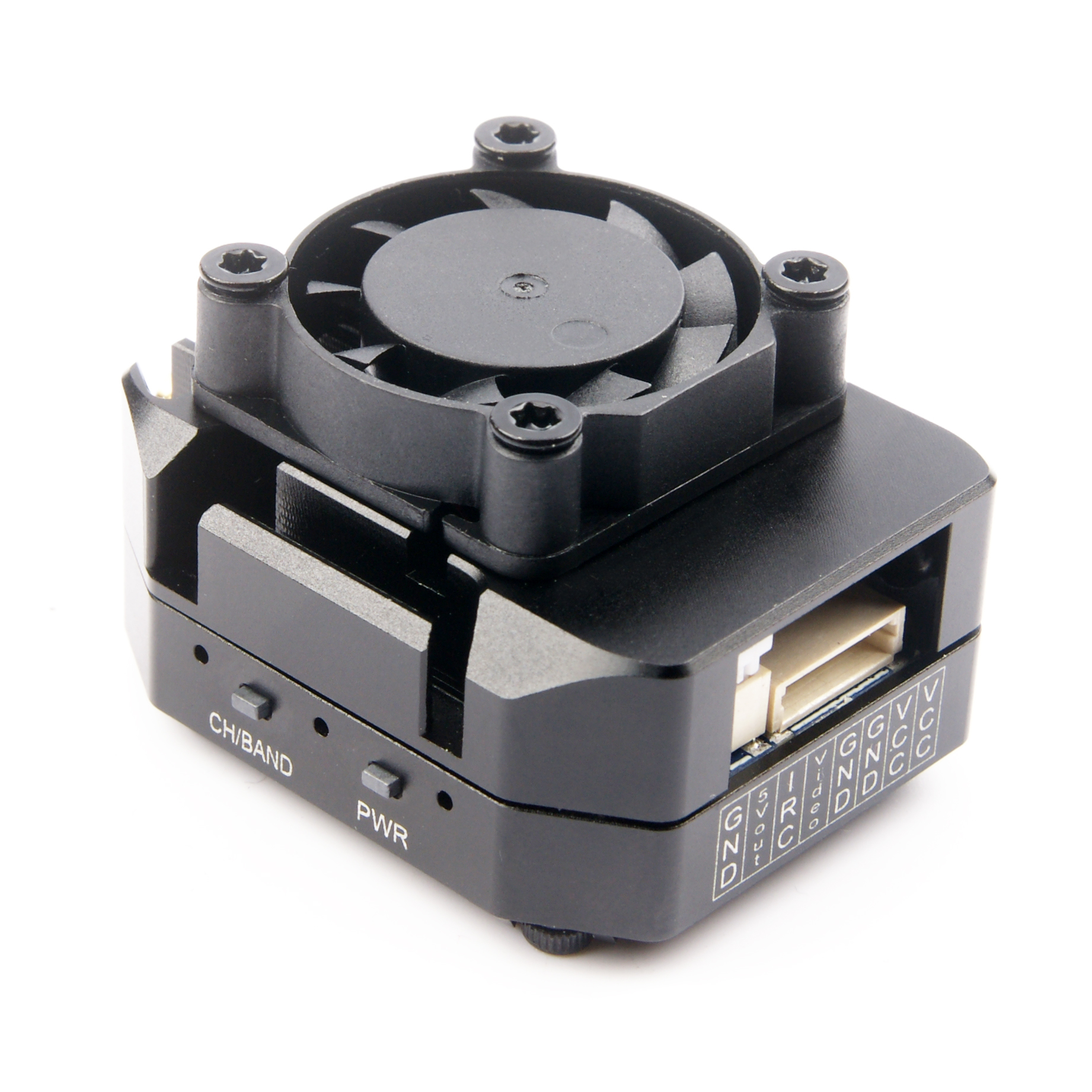

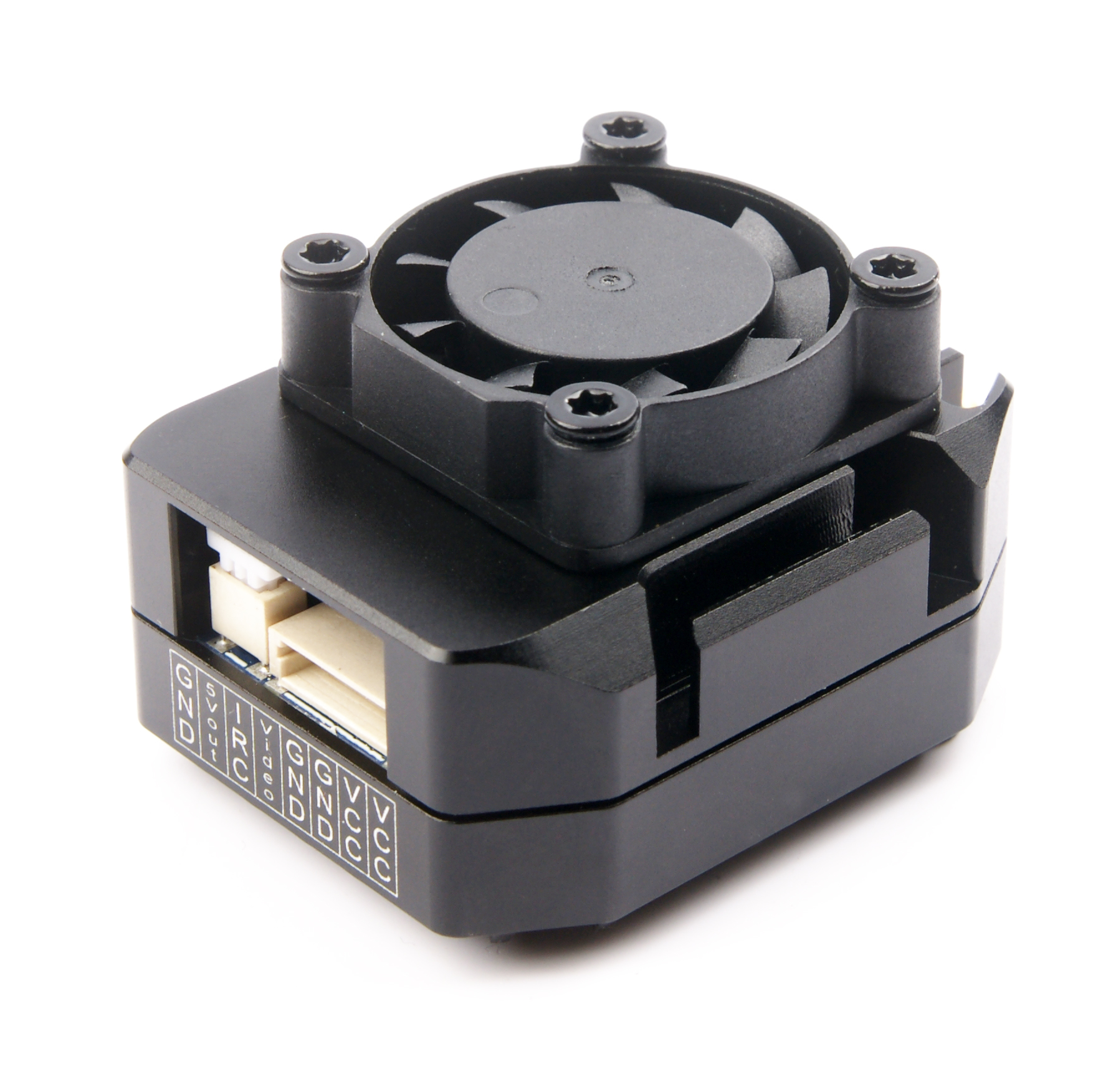

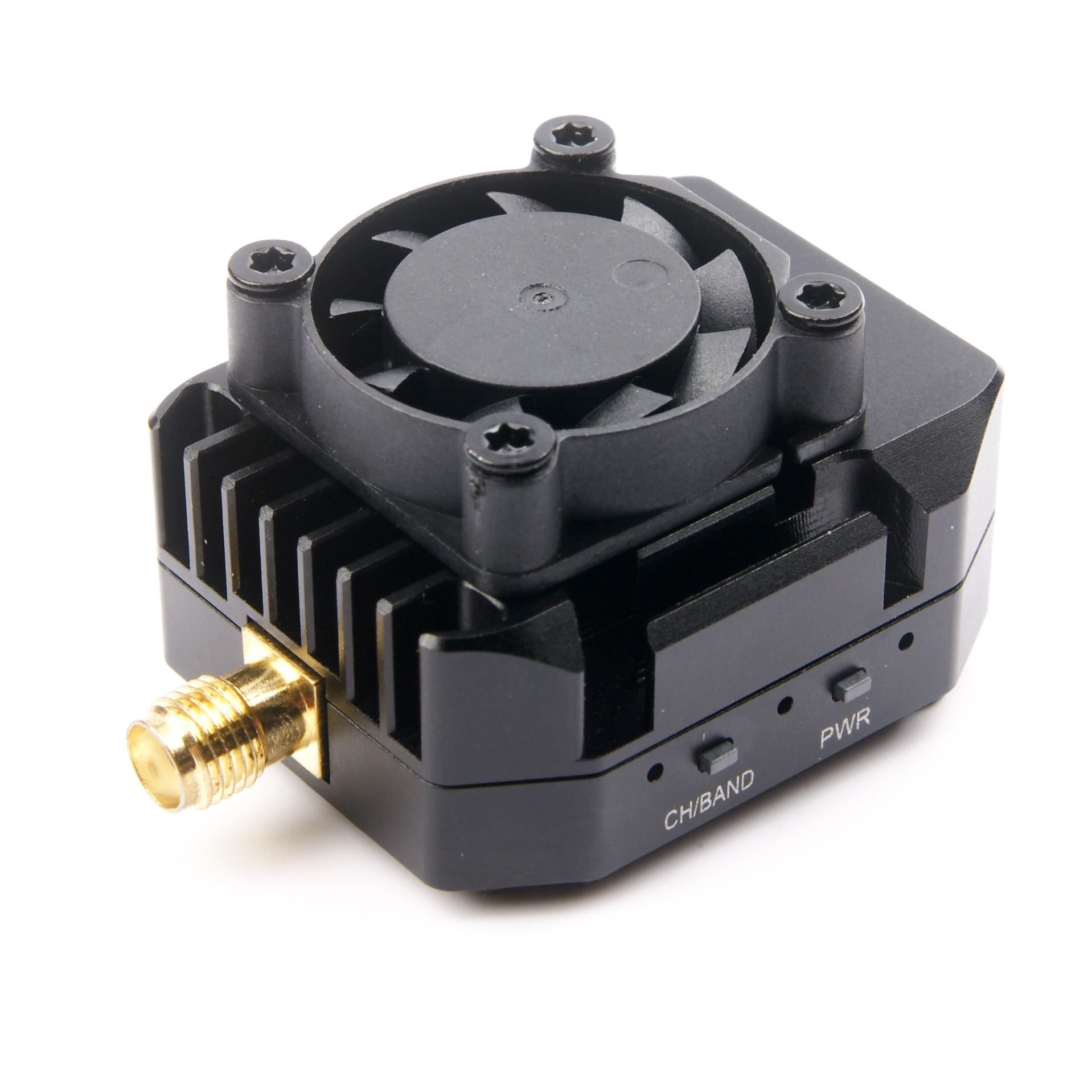

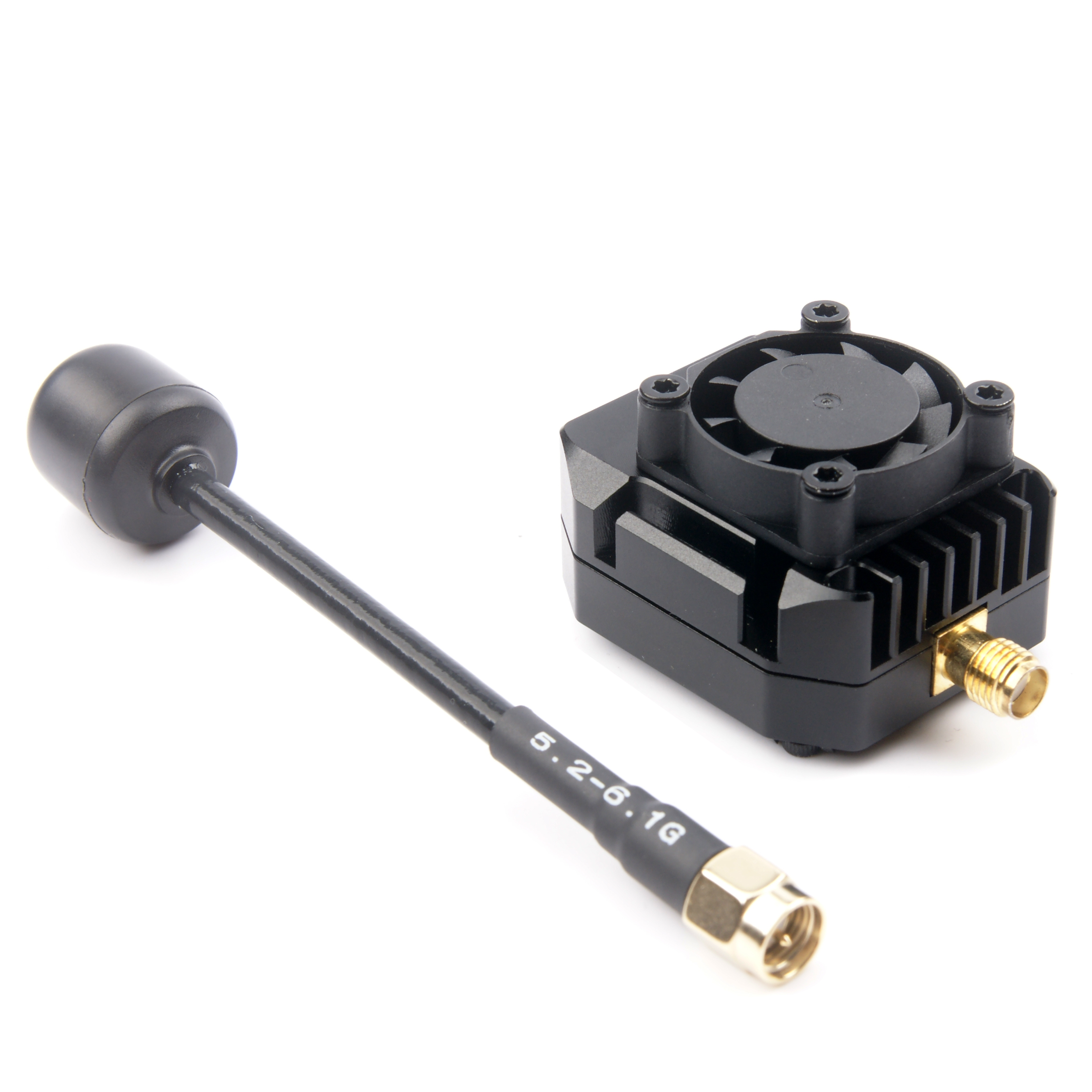

Senchtec 4.9GHz-5.8GHz 4W 64CH GaAs VTX Video Transmitter for Fpv Drone Uav

Product Parameters:

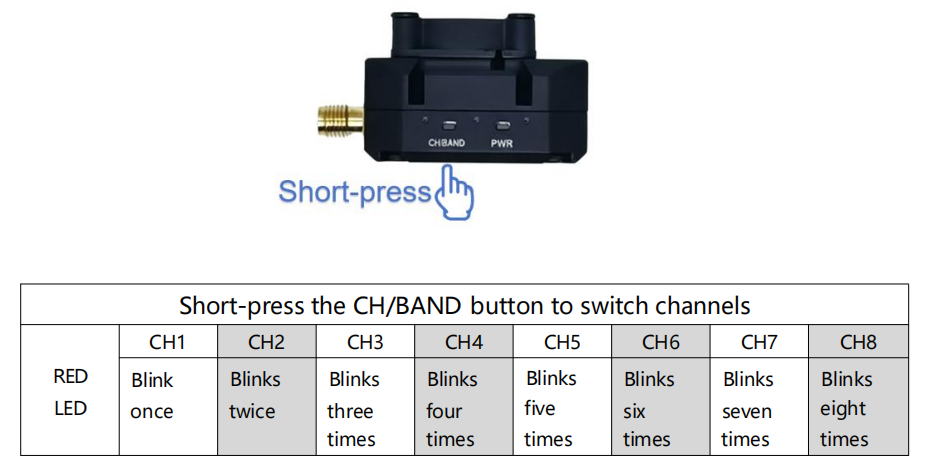

1. 64 channels: 4.9GHz - 6.1GHz (4950MHz - 6050MHz)

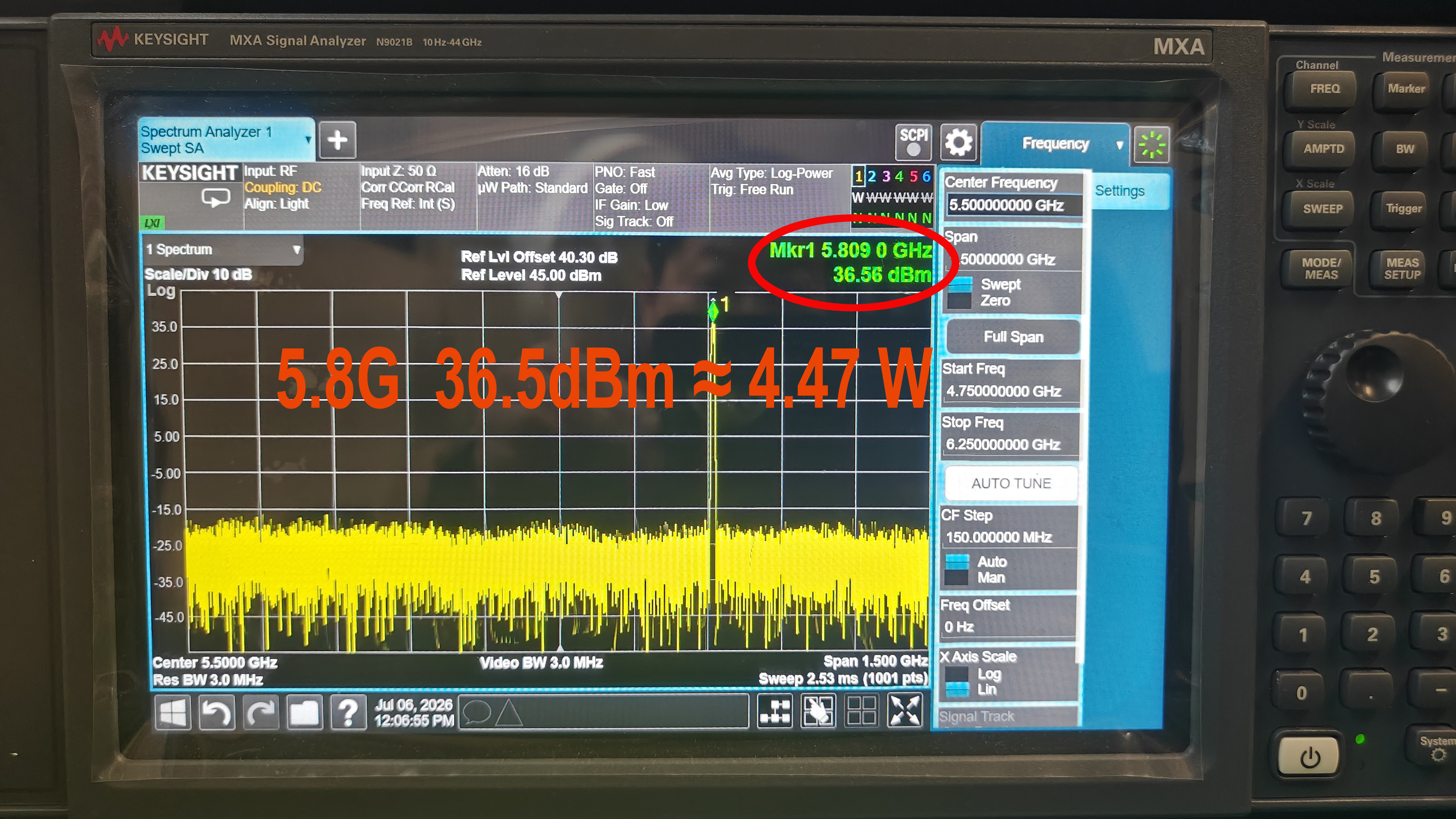

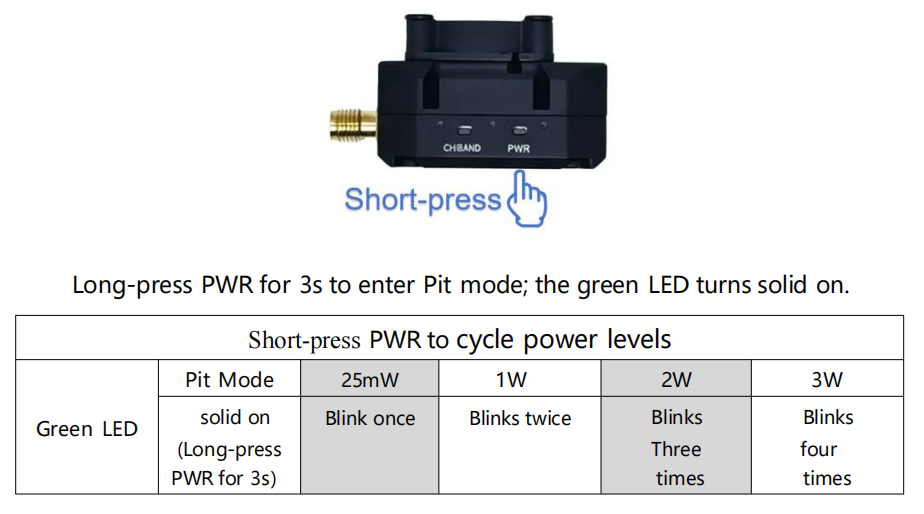

2. Max. output power: 4W (adjustable: 25mW / 1W / 2W / 3W)

3. Supply voltage: DC 8 V - 36 V, 2 S-8 S Li-ion/Li-Po compatible

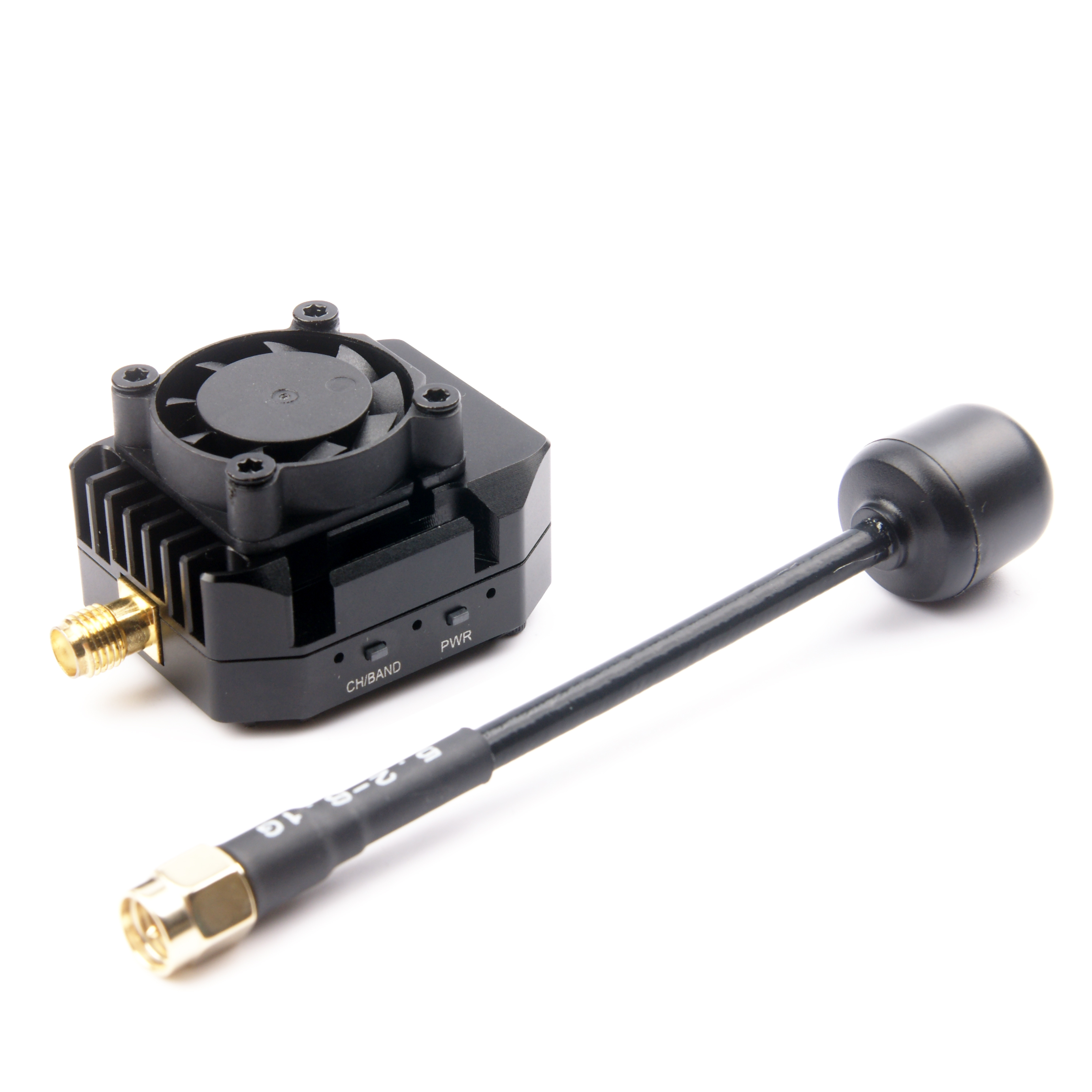

4. Antenna connector: SMA female

5. Control protocol: IRC Tramp

6. Cooling: aluminum enclosure with heatsink and cooling fan

7. Mounting pattern: 20 mm × 20 mm, ø 2.0 mm holes

8. Weight: 56 g

For a 4W wireless video transmission module, what are the advantages of using a Gallium Arsenide (GaAs) chip compared to a conventional Silicon (Si/CMOS) chip?

This time, let's focus solely on GaAs versus ordinary Silicon (Si/CMOS) chips-leaving Gallium Nitride (GaN) out of the picture. The conclusion is clear: at the 4W power level, GaAs is a "professional-grade" solution, while Silicon is a "consumer-grade" compromise. The difference in real-world experience is substantial.

The advantages are most noticeable in three key areas:

1. Transmission Distance and Wall-Penetration Capability (Signal Strength)
This is the most critical difference.

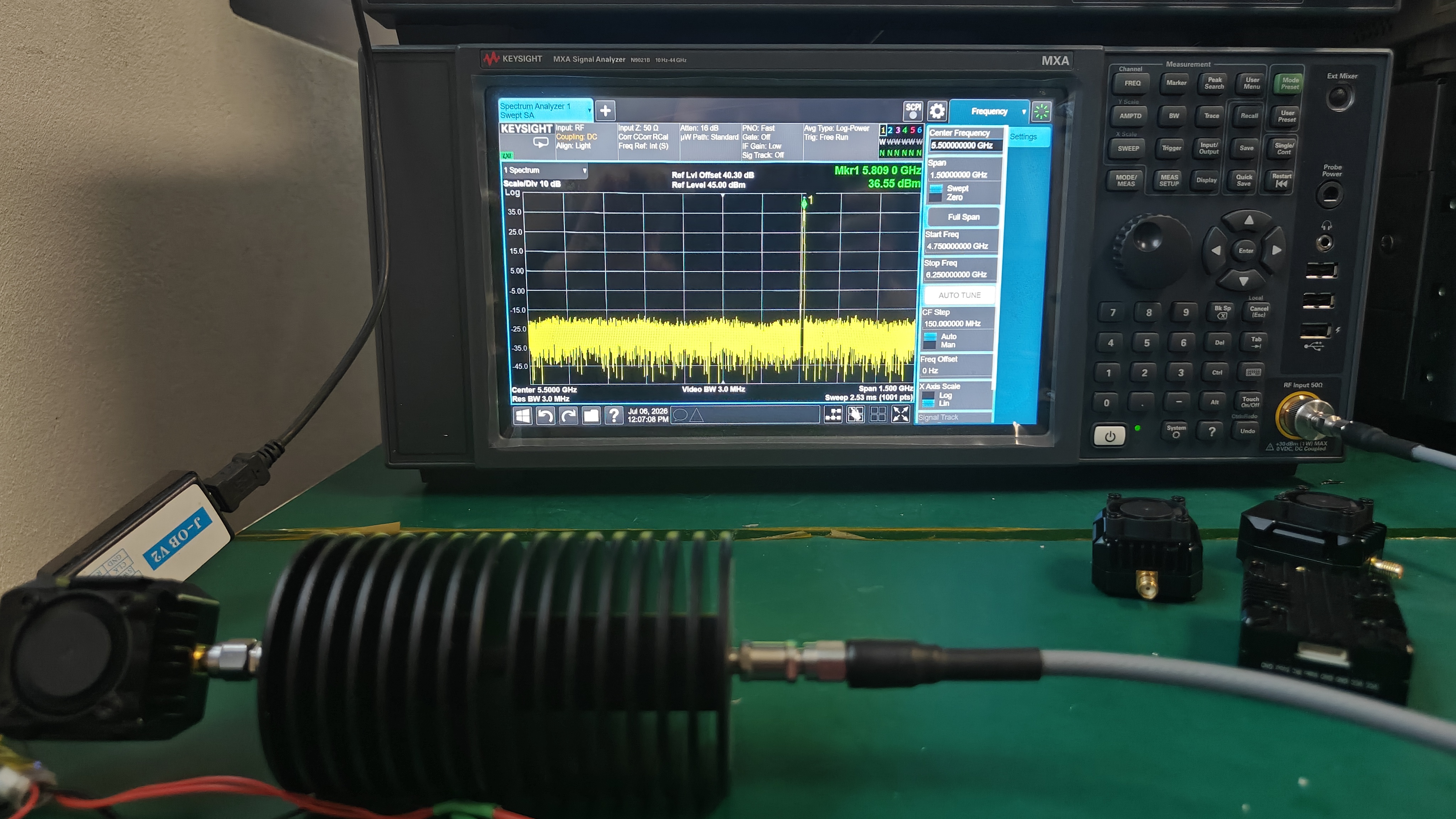

• "True" Output Power: With ordinary silicon chips, the signal severely distorts when pushed to 4W (36dBm) output. The actual effective power may only be 2-3W. GaAs, however, offers excellent linearity and can stably deliver a clean 4W signal.

• Significantly Extended Range: GaAs's high efficiency (PAE can exceed 56%) means that for the same 4W power consumption, more electrical energy is converted into RF energy. In practice, the maximum transmission distance of a GaAs module can be 30%-50% further than a silicon-based solution under the same conditions. Moreover, the video feed remains much more stable at long range, with less stuttering or pixelation.

2. Heat Dissipation and Device Stability (Handling and Safety)

4W is high-power RF, and heat is the biggest performance killer.

• Vastly Different Efficiency, Vastly Different Heat Generation: Ordinary silicon chips are very inefficient at 4W, often only 30%-40%. To output 4W, they need to draw over 10W of power-the extra 6W is all wasted as heat. GaAs, with >55% efficiency, only draws about 7W to output the same 4W, generating roughly half the heat.

• Scorching Hot vs. Warm to the Touch: A silicon-based transmitter will become too hot to touch (easily exceeding 70°C) within 5 minutes. This not only shortens the device's lifespan but can also trigger thermal throttling, forcing the module to reduce power (causing frame drops). A GaAs module, in contrast, stays merely warm (around 50-55°C) and can run at full power continuously for extended periods-a key factor in professional reliability.

3. Image Quality and Interference Resistance (Clarity and Purity)

Video transmission needs not just range, but also clarity.

• Superior Signal-to-Noise Ratio (SNR): GaAs chips inherently have a low noise figure and generate very few spurious signals. This means that in complex electromagnetic environments (e.g., urban areas, crowded drone events), the transmitted signal is "cleaner." The receiving end gets an image with less noise and more accurate colors, without the heavy macro-blocking that silicon solutions suffer from in weak-signal conditions.

• Handles High Bitrates with Ease: For 4K/8K HD video, high linearity is required to minimize signal distortion. GaAs naturally excels at handling complex modulations (like OFDM), easily supporting high bitrates. Silicon chips, however, suffer from severe non-linear distortion at high power, degrading modulation accuracy (EVM) and forcing the system to lower the bitrate-sacrificing image clarity for connection stability.

Quick Comparison Table

Bottom Line Advice

If you're just flying close by for fun, a cheaper silicon-based module might get the job done. But if you want rock-solid video at the farthest reach of your flight or need to operate in high-interference environments, the extra investment in GaAs pays off through lower temperatures, longer battery life, and consistently clear HD video. That's why it's the standard choice in professional aerial photography and inspection applications.

​
