MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
-
Board V1.0 IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
-
Board V1.5 IMU: MPU6000 (SPI1) & ICM42605 (SPI4)
-
Baro: Infineon DPS310 (I2C2)
-
OSD: AT7456E (SPI2)
-

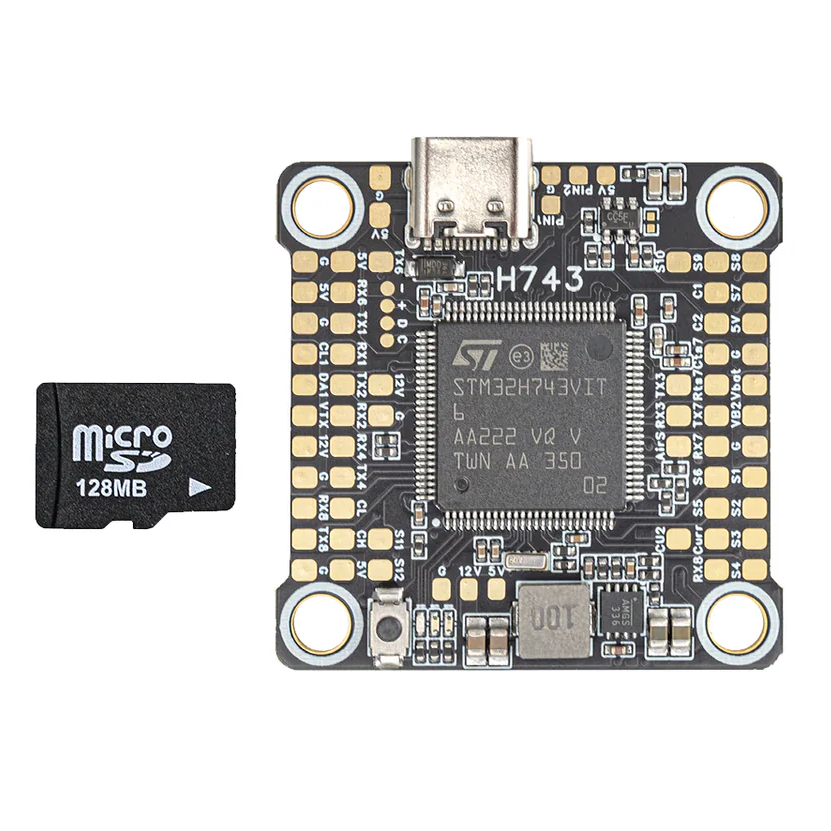

Blackbox: MicroSD card socket (SDIO)
-
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
-
13x PWM outputs(including “LED” pad)
-
2x I2C
-
1x CAN
-
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
-
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
-
1x SPI3 breakout
-
USB Type-C(USB2.0)
-
1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
-
1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
-
Dual Camera Inputs switch
-
5V/Vbat filtered power ON/OFF switch
-
DJI FPV OSD is supported by any spare UART
