The Brain And The Brawn: How Flight Controllers And ESCs Collaborate in FPV Drones

In every FPV drone, there exists a critical partnership—a high-speed dialogue between two essential components that determines whether the aircraft flies like a dream or tumbles out of the sky. The flight controller (FC) and the Electronic Speed Controllers (ESCs) are often discussed separately, but their true magic lies in their seamless coordination. The FC is the strategic brain, processing data and making rapid decisions, while the ESCs are the muscular enforcers, executing those decisions with split-second precision. This article explores the intricate collaboration between these two components, explaining how they communicate, synchronize, and ultimately bring an FPV drone to life.

The Division of Labor: Who Does What?

Before understanding their collaboration, it is important to clearly define their distinct roles:

• The Flight Controller (FC): The Commander. The FC is a high-speed microprocessor running flight firmware (such as Betaflight). It continuously reads data from the onboard gyroscope and accelerometer to determine the drone's real-time orientation (pitch, roll, and yaw). It then compares this current state against the pilot's desired inputs (received via the radio receiver) and calculates the necessary thrust adjustments using PID (Proportional-Integral-Derivative) control algorithms. The output of this calculation is a set of digital throttle commands—one for each motor—expressed as a value between 0 and 100%.

• The ESCs: The Executioners. Each motor has a dedicated ESC, which is essentially a high-power switching regulator. The ESC receives the digital throttle command from the FC and translates it into three-phase alternating current to drive the brushless motor. By rapidly switching the battery's DC voltage on and off across the motor windings at high frequencies (via MOSFETs), the ESC controls the motor's speed with exceptional precision.

The Communication Protocol: The Language They Speak

The collaboration between the FC and ESCs hinges on a communication protocol—the language through which commands are transmitted. In modern FPV systems, this is almost exclusively a digital protocol known as DShot (Digital Shot). DShot has largely replaced older analog protocols (PWM, Oneshot, Multishot) due to its significant advantages:

• Digital Transmission: Unlike analog signals that are susceptible to noise and require calibration, DShot sends digital packets containing a numeric throttle value. This ensures error-free communication.

• No Calibration: With analog protocols, ESCs must be calibrated to learn the minimum and maximum signal values. DShot eliminates this step entirely, saving time and reducing the risk of setup errors.

• High Refresh Rates: DShot supports refresh rates of 600Hz (DShot600), 1200Hz (DShot1200), and even 3000Hz (DShot3000) on newer hardware. This means the ESCs receive new instructions from the FC up to 3,000 times per second, enabling instantaneous motor response.

• Bidirectional Communication: Modern versions of DShot also support bidirectional telemetry. This allows the ESC to send data back to the FC, including motor RPM, temperature, and error flags. The FC can use this feedback for advanced features like RPM filtering, which dramatically improves flight smoothness by eliminating motor noise.

The Feedback Loop: A Symphony of Speed

The FC and ESCs operate within an incredibly fast control loop that repeats hundreds of times per second. Here is a step-by-step breakdown of a typical cycle:

1. Sensing: The FC reads the gyroscope to detect angular velocity. For example, it may sense that the drone is rolling to the right at a rate of 200 degrees per second.

2. Decision Making: The FC's PID controller calculates that to counteract this unwanted roll, the left motors must spin faster, and the right motors must spin slower. It computes a precise correction value.

3. Command Transmission: The FC encodes these new throttle values into a DShot packet and transmits it to each ESC over the dedicated signal wires. This transmission takes less than a microsecond.

4. Execution: The ESCs receive the commands simultaneously. Each ESC adjusts its switching frequency accordingly—one speeds up the motor, another slows it down, all within a fraction of a millisecond.

5. Feedback: The physical change in motor speed alters the drone's attitude. The gyroscope detects this change, and the entire loop begins again. This cycle runs at speeds typically between 4kHz and 32kHz (the PID loop frequency), meaning the FC and ESCs are executing this dance up to 32,000 times per second.

Shared Signals: The ESC Telemetry Connection

In advanced setups, the collaboration goes beyond one-way commands. Bidirectional DShot enables the ESCs to send real-time telemetry back to the FC. This includes:

• Motor RPM: The ESC reports the actual rotational speed of each motor. The FC can use this data to implement dynamic RPM filtering, which dynamically adjusts notch filters to eliminate specific frequencies of motor noise. This results in a cleaner gyro signal and a significantly smoother flying experience, especially at high throttle.

• Current Draw and Temperature: Some ESCs report electrical current and temperature data. The FC can monitor this to trigger audible alarms or throttle reductions if a motor is overheating or drawing excessive current, preventing catastrophic failures.

• Error Detection: If an ESC detects a desync (loss of rotor position) or other fault, it can communicate this back to the FC. The FC can then log the error or even attempt a recovery, such as a quick throttle blip to re-sync the motor.

Hardware Integration: Wiring and Stacks

The physical connection between the FC and ESCs is equally important. There are two primary configurations:

• Individual ESCs: Each ESC is wired separately to the FC using three signal wires (GND, Signal, and sometimes a telemetry wire). This setup offers modularity—if one ESC fails, only that unit needs replacement. However, it adds wiring complexity and weight.

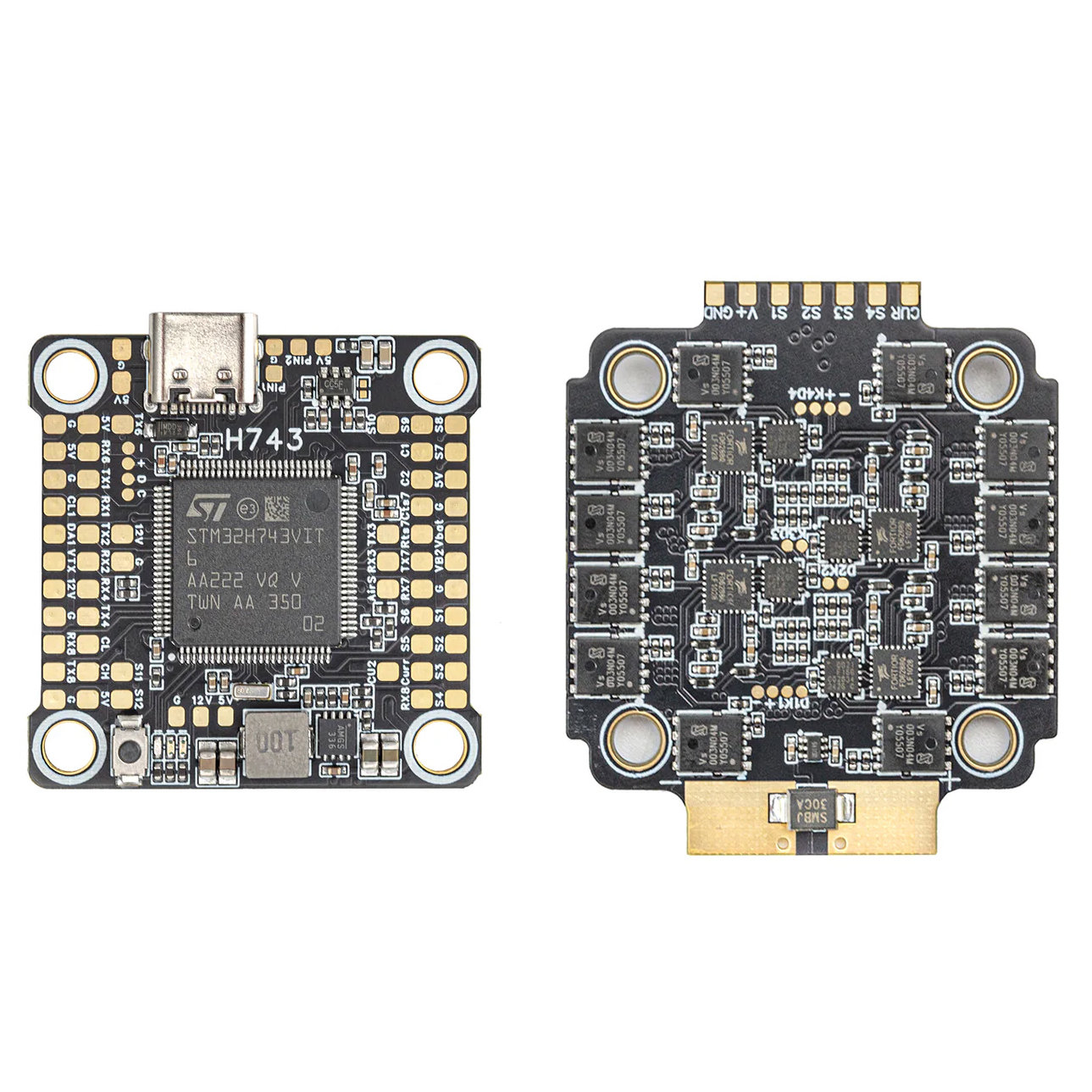

• 4-in-1 ESCs: A single board contains all four ESCs, and it connects to the FC via a simple 8-pin or 10-pin harness. This harness carries power, ground, and signal lines for all motors, plus telemetry. The 4-in-1 configuration is standard in modern builds due to its cleanliness, reduced weight, and ease of assembly. A capacitor is typically soldered to the ESC's battery pads to filter voltage spikes, protecting both the ESCs and the FC.

PID Tuning and ESC Synchronization

The effectiveness of the FC-ESC partnership is directly visible in the drone's behavior during PID tuning. If the ESCs are slow or unresponsive, the FC's PID controller cannot effectively correct errors, leading to oscillations or "washout" during turns. Conversely, if the ESC response is too aggressive, it can cause high-frequency vibrations. The pilot must ensure:

• PID Loop Frequency does not exceed the ESC's refresh rate. For example, if the ESCs run DShot600 (600Hz), running the PID loop at 8kHz provides multiple calculation cycles per motor command, which is acceptable. Running a 32kHz loop with DShot3000 ensures nearly instantaneous updates.

• Motor Timing and Demag Compensation: These ESC settings in BLHeliSuite affect how quickly the motor accelerates. Incorrect settings can cause desyncs, where the ESC loses track of the rotor position. The FC's filtering must also complement the ESC's response characteristics to achieve a "locked-in" feel.

Common Issues: When Collaboration Breaks Down

Understanding what can go wrong highlights just how dependent these two components are on each other:

• Desynchronization (Desync): This is the most common FC-ESC collaboration failure. If the ESC loses track of the motor's rotor position—often due to aggressive throttle changes, low battery voltage, or incorrect timing settings—the motor will stutter or stop entirely. The FC may still send commands, but the motor does not respond, leading to an instant crash. Bidirectional DShot helps mitigate this by allowing the FC to detect the desync and reduce throttle to attempt a recovery.

• Electrical Noise: High-current switching generates electrical noise that can interfere with the FC's gyroscope readings. Proper wiring, capacitors, and filtering are essential to maintain clean communication between the FC and ESCs.

• Overheating: If the FC commands full throttle for extended periods without adequate cooling, the ESCs can overheat and throttle back power, causing the FC to receive conflicting data and leading to unpredictable flight.

The Future: Integration and Intelligence

The trend in FPV hardware is toward even tighter integration. All-In-One (AIO) boards now combine the FC and 4-in-1 ESCs onto a single PCB, eliminating signal wires entirely and reducing latency. These boards often feature integrated current sensors and onboard capacitors for a truly compact build.

Furthermore, firmware developments are making the FC and ESCs smarter. Features like dynamic idle, where the FC automatically adjusts the minimum motor speed based on the drone's orientation, rely on continuous communication between the two. As processors become more powerful, we can expect even more sophisticated collaborative features, such as predictive motor control and adaptive filtering that learns the drone's flight characteristics in real time.

Conclusion

The flight controller and ESCs are not independent modules—they are symbiotic partners in the art of FPV flight. The FC provides the intelligence, calculating the perfect correction for every deviation, while the ESCs provide the power, translating those calculations into precise motor movements. Their collaboration, governed by high-speed digital protocols and continuous feedback loops, is the foundation upon which every smooth dive, sharp turn, and rapid acceleration is built. Understanding this partnership is not just technical knowledge—it is the key to building, tuning, and flying an FPV drone that performs at its absolute best. When the brain and the brawn work in perfect harmony, the sky truly becomes your playground.
