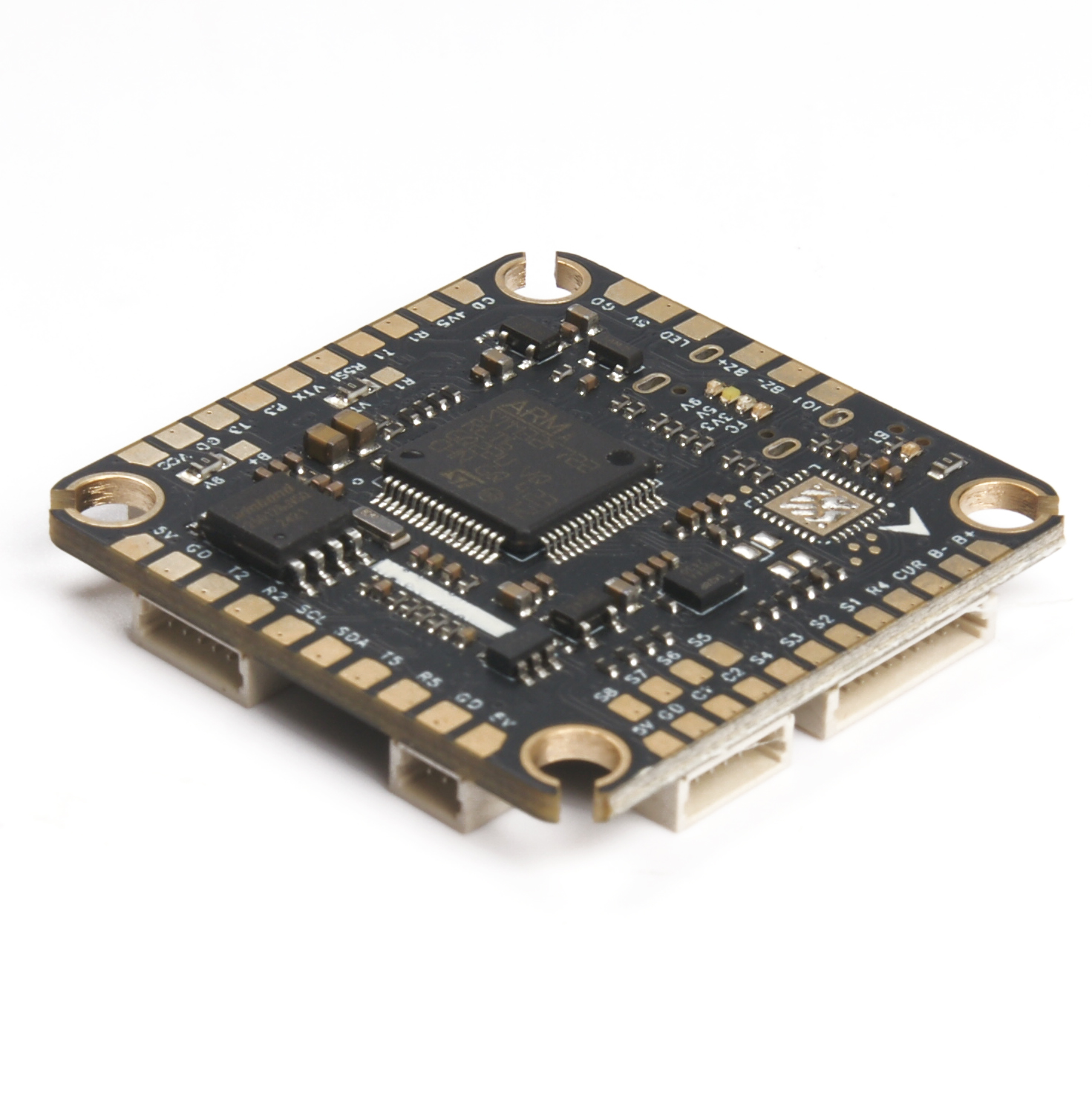

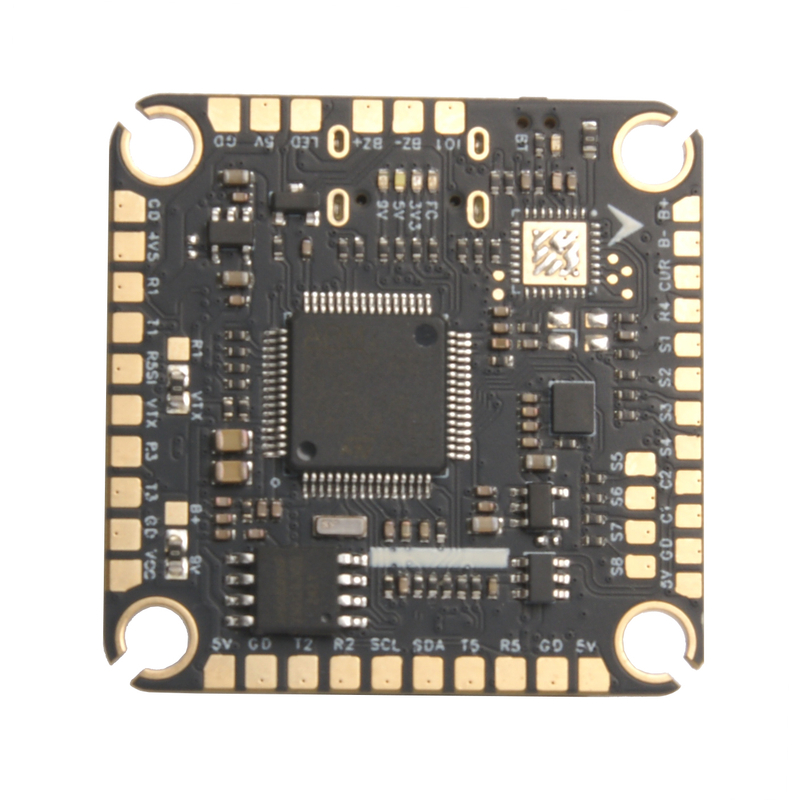

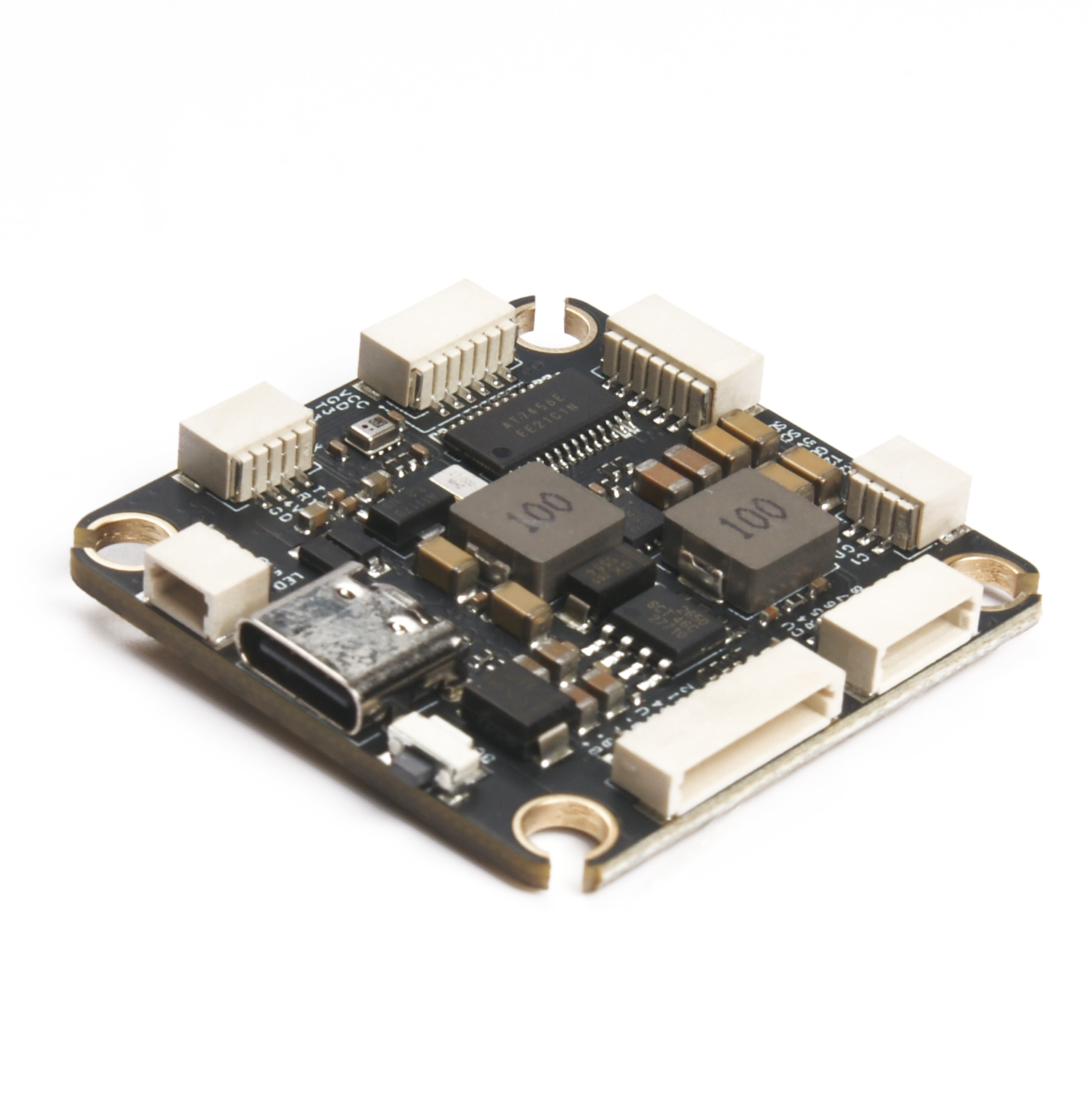

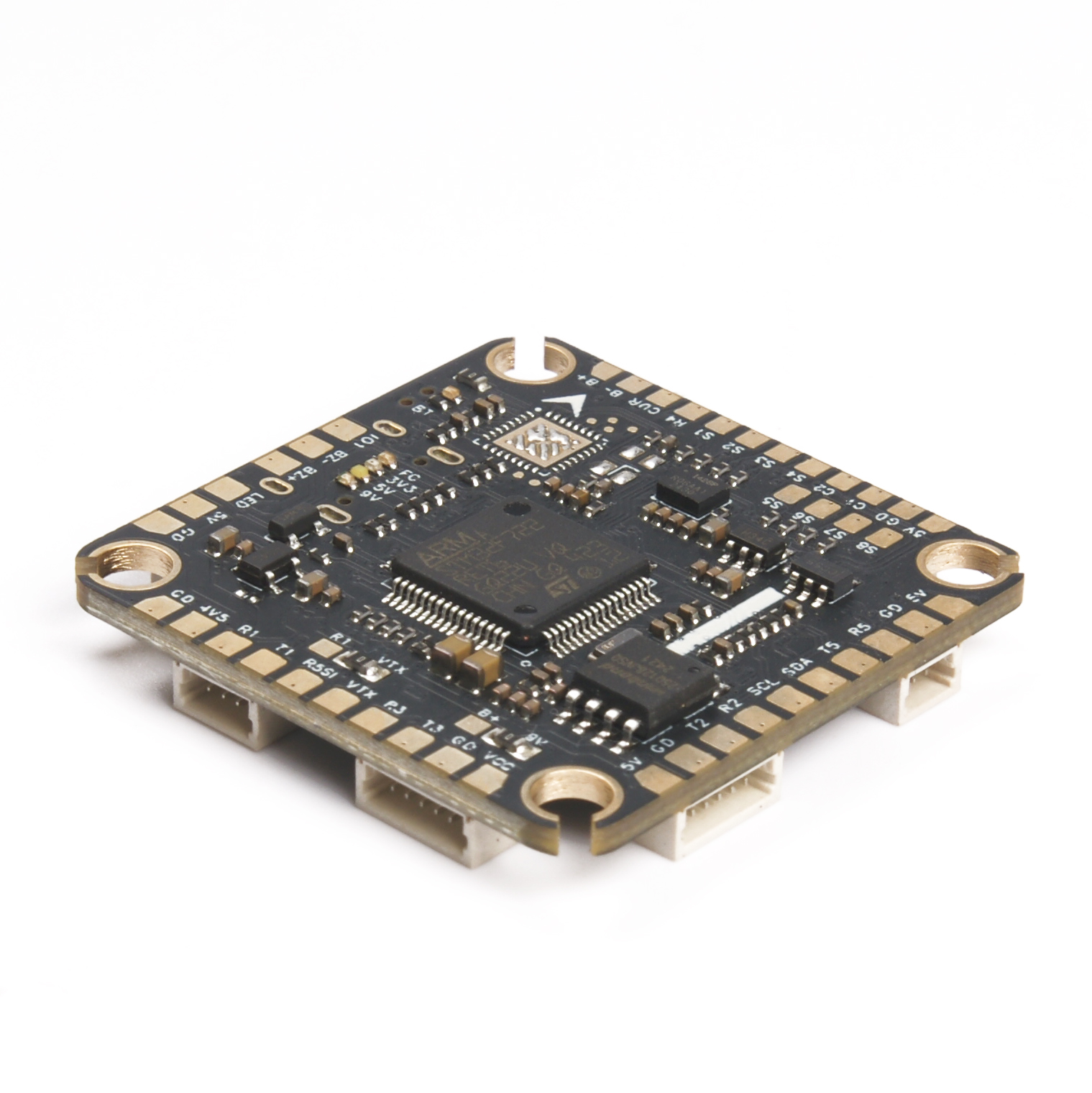

SCT F722T FC Flight Controller

Main Controller: STM32F722

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

DJI Air Unit: Supports wire bonding or 6-pin direct connection

Black Box: Built-in 16M

Ammeter Input: Supported

BetaFlight Camera Parameter Adjustment Pads: Supported (3-pin socket direct connection or front pad)

Input Voltage: 4S-8S Lithium Battery

Output Power: 5V/2.5A, 9V/3A

Motor Output: 8ch

General Serial Port: 5ch

Receiver Protocol: ELRS/CRSF/S.BUS/Futabayfysky/TBs Crossfre/DSMX

LED Strip: Supported

Buzzer Pads: Supported, BZ+, BZ- connect to 5V passive buzzer

BOOT Button: Supported. Press and hold the BOOT button while inserting the USB or powering on the device to enter DFU mode for flashing firmware.

Firmware Name: AOCODARCF722V2

Mounting Hole: 30.5x30.5mm (4mm diameter)

Dimensions: 37*37mm

Weight: 9.4g
