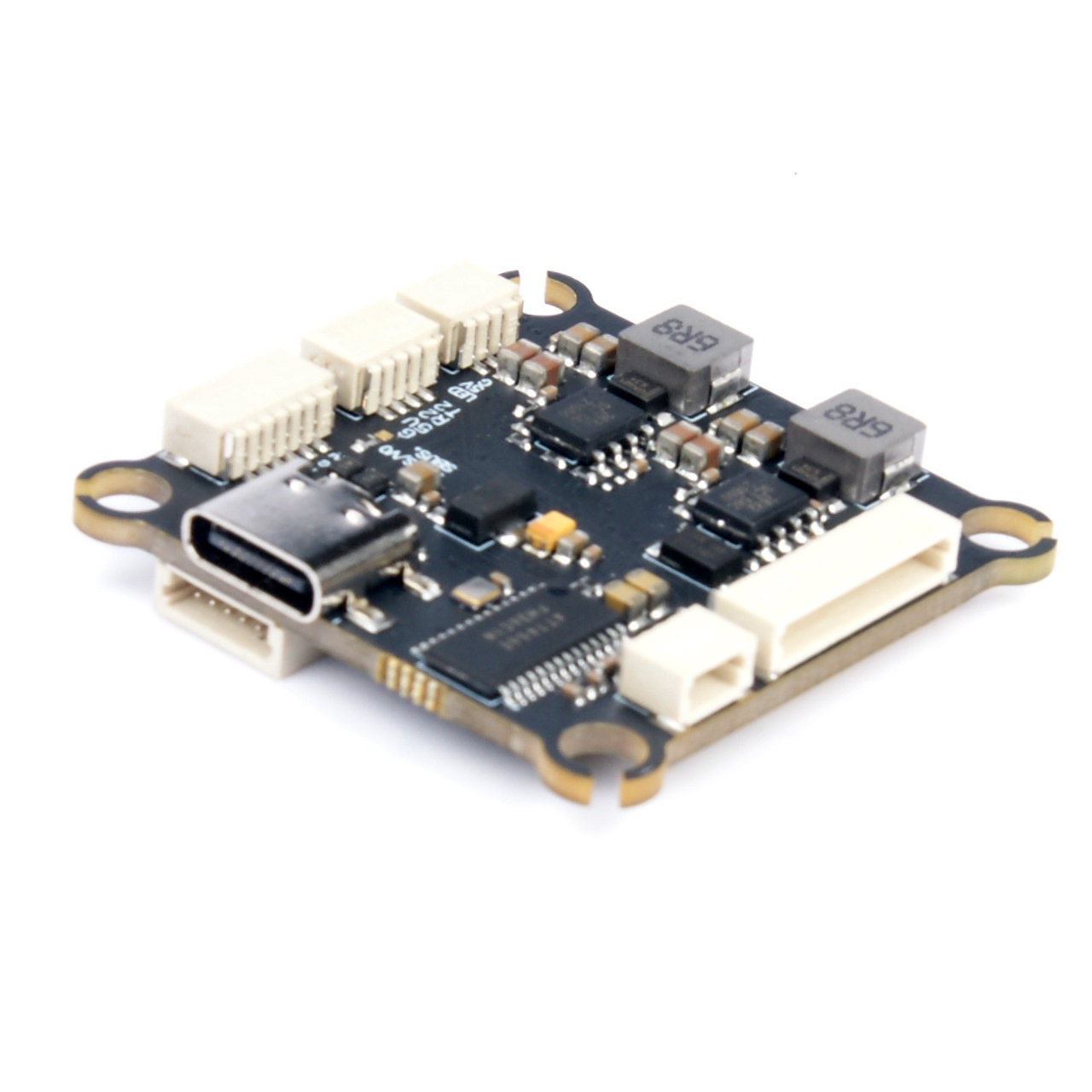

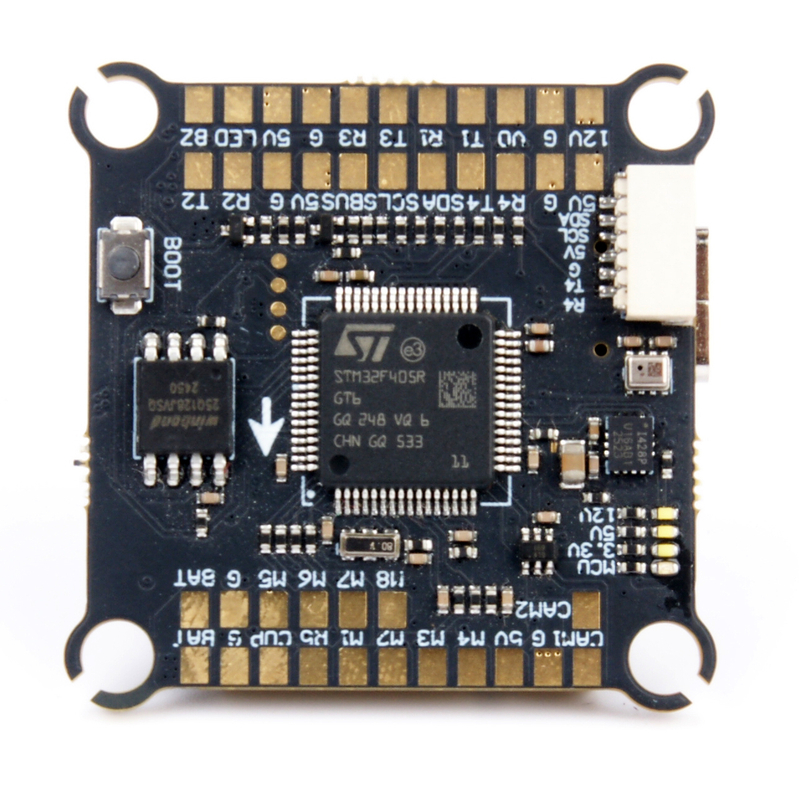

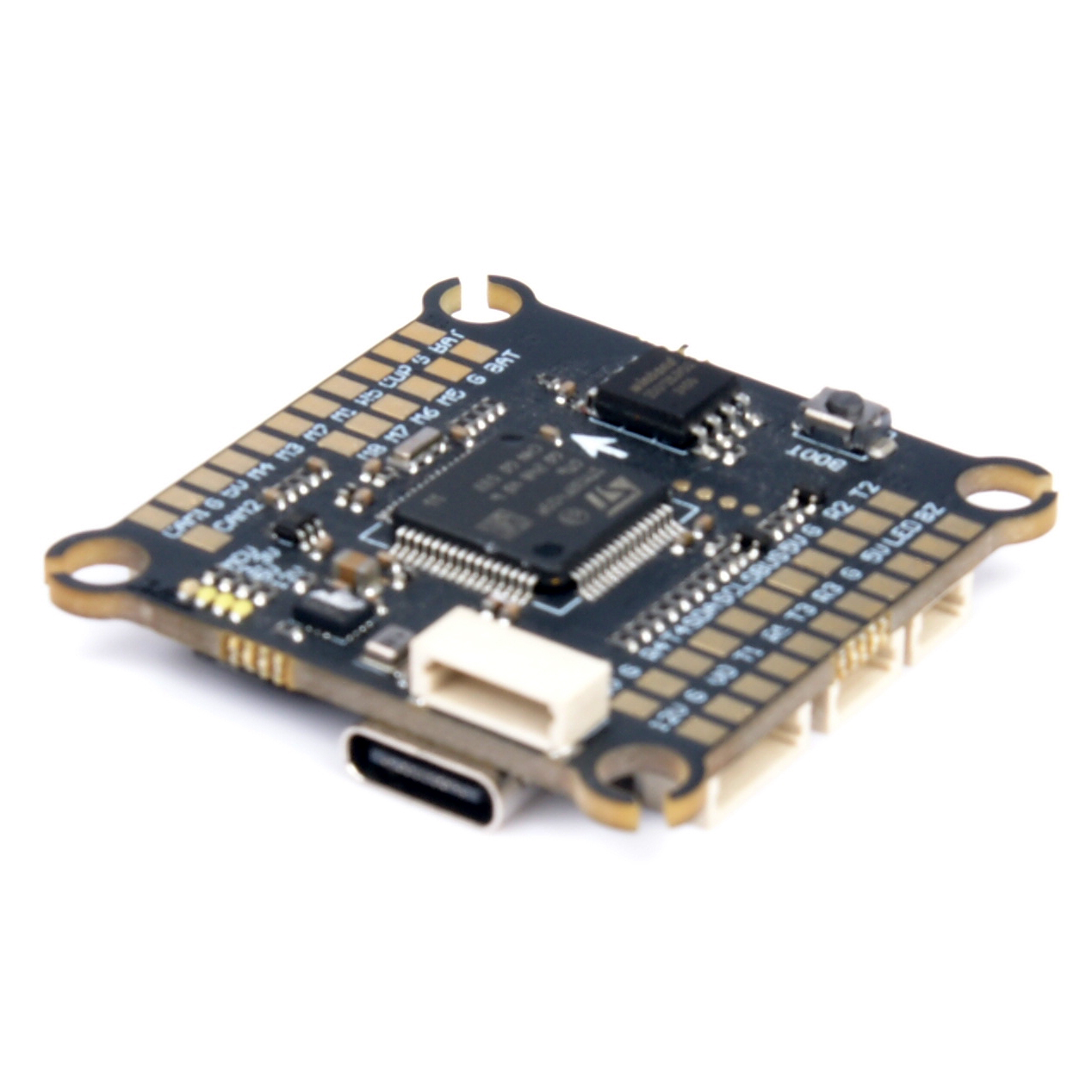

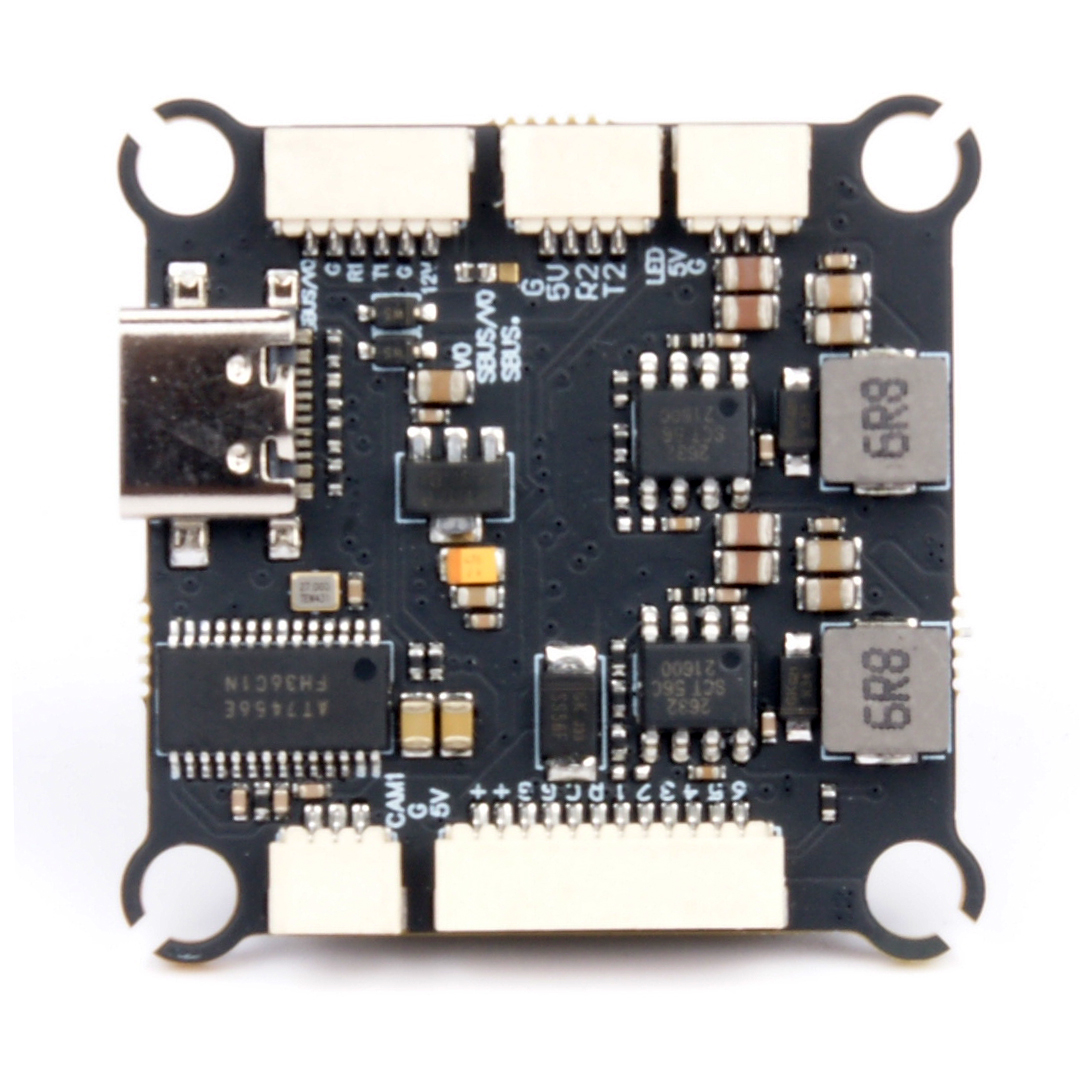

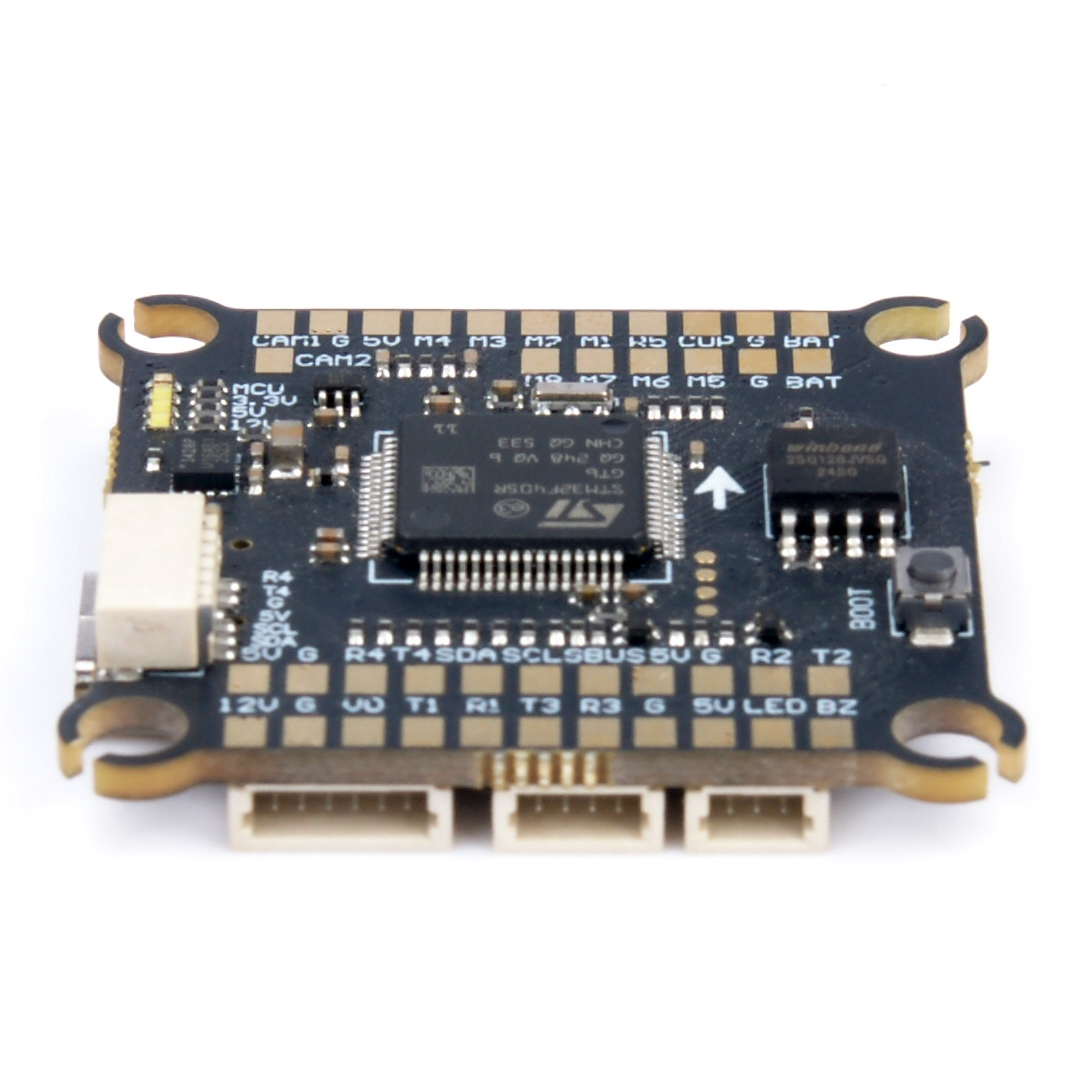

SCT F405 V5 FC Flight Controller

Main controller: STM32F405

Gyroscope: ICM42688P

USB interface type: Type-C

Barometer: Built-in, SPA06-003

OSD chip: AT7456E

DJI Air Unit: Supports wire bonding or 6-pin direct connection

GPS connection: 6-pin direct connection or wire bonding

Black box: Built-in 16M

Ammeter input: Supported

BetaFlght camera parameter adjustment pad: Supported (3-pin socket direct connection or front pad)

Input voltage: 4S-8S lithium battery (via the 10-pin interface on the back or the GND and BAT pins in the pad)

5V BEC output: 8 groups of 5V outputs (PCBA has 4 +5V pads + 4 sockets for 5V output), total current output 2A

12V BEC Output: 2 sets of 12V outputs (PCBA has 1 +12V output, and one socket on the board contains a +12V output), total current output 2A

ESC Signals: Front M1-M4, M5-M8 (supports 4-8 axes)

UART Serial: 4 serial ports

Traditional Beteflight LED Pads: Supported, 5V, GND, and LED pads on the PCBA surface

Buzzer Pads: Supported, 5V and BZ connected to the 5V passive terminal for buzzer

Boot Button: Supported, press and hold the BOOT button while inserting the USB or powering on to enter DFU mode for firmware flashing

SmartPort: Supported, any serial port TX can be used

Firmware Target Name: SPEDIXF405

Mounting Hole Dimensions: 30.5x30.5mm

Dimensions: 36*36mm

Weight: 7g
