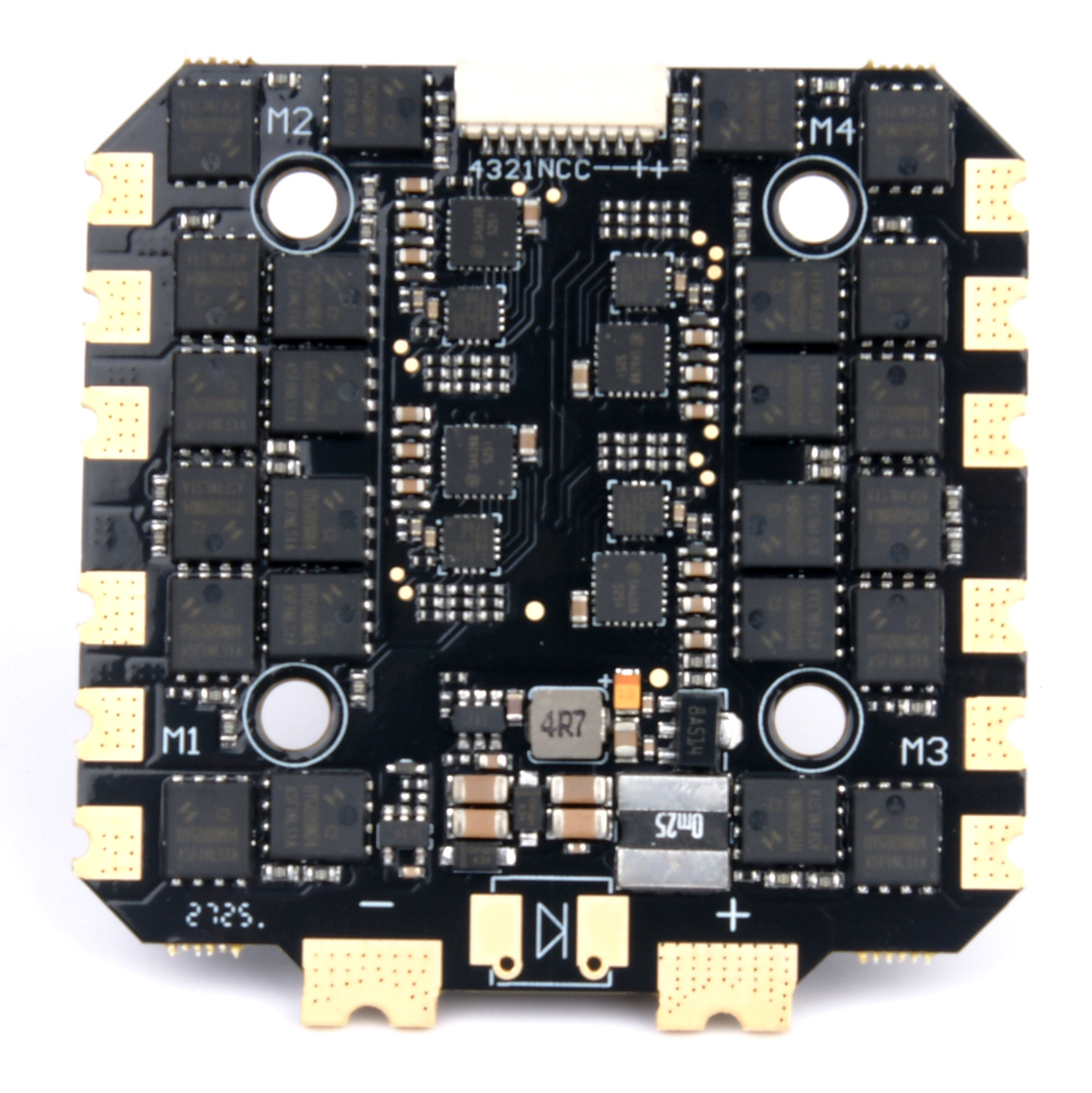

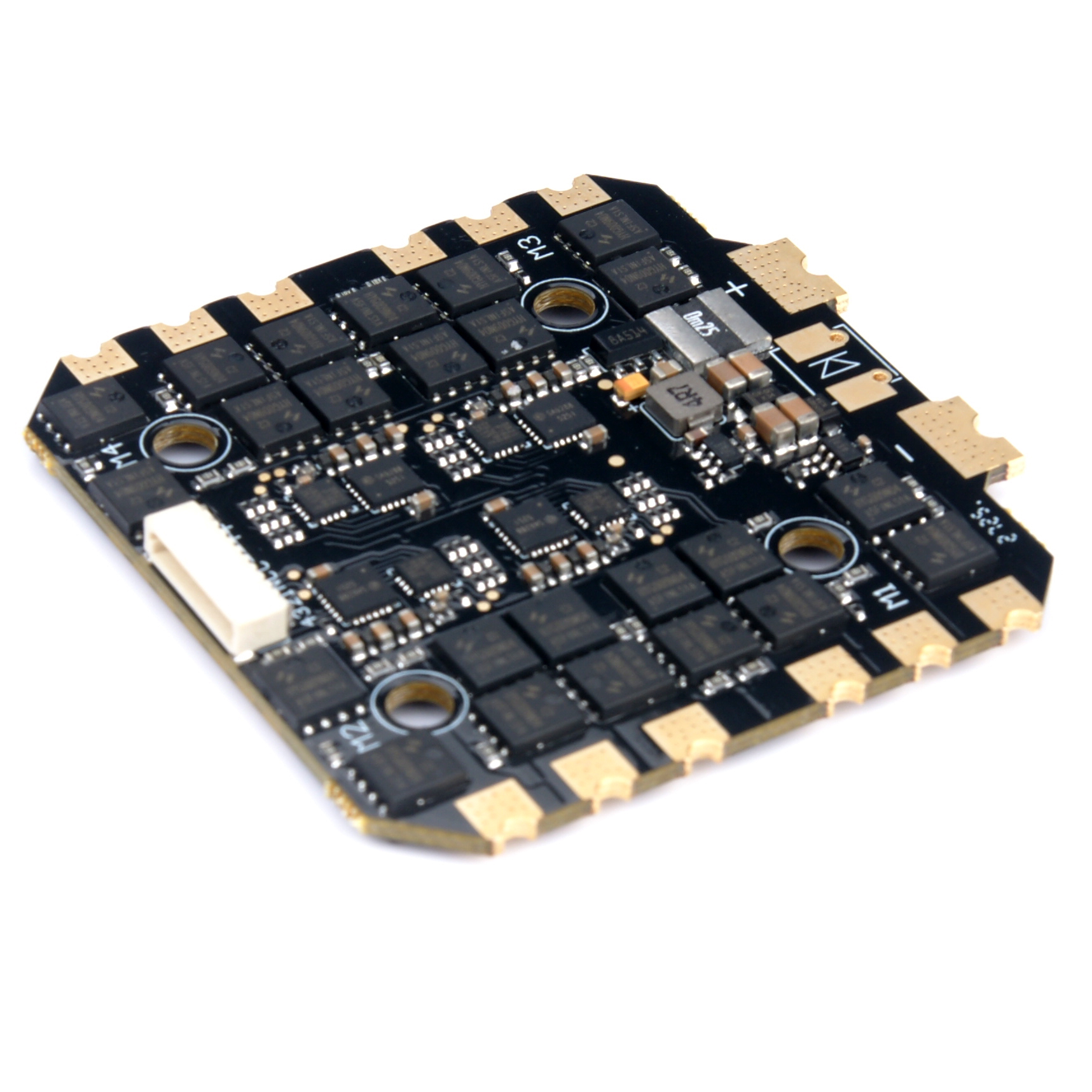

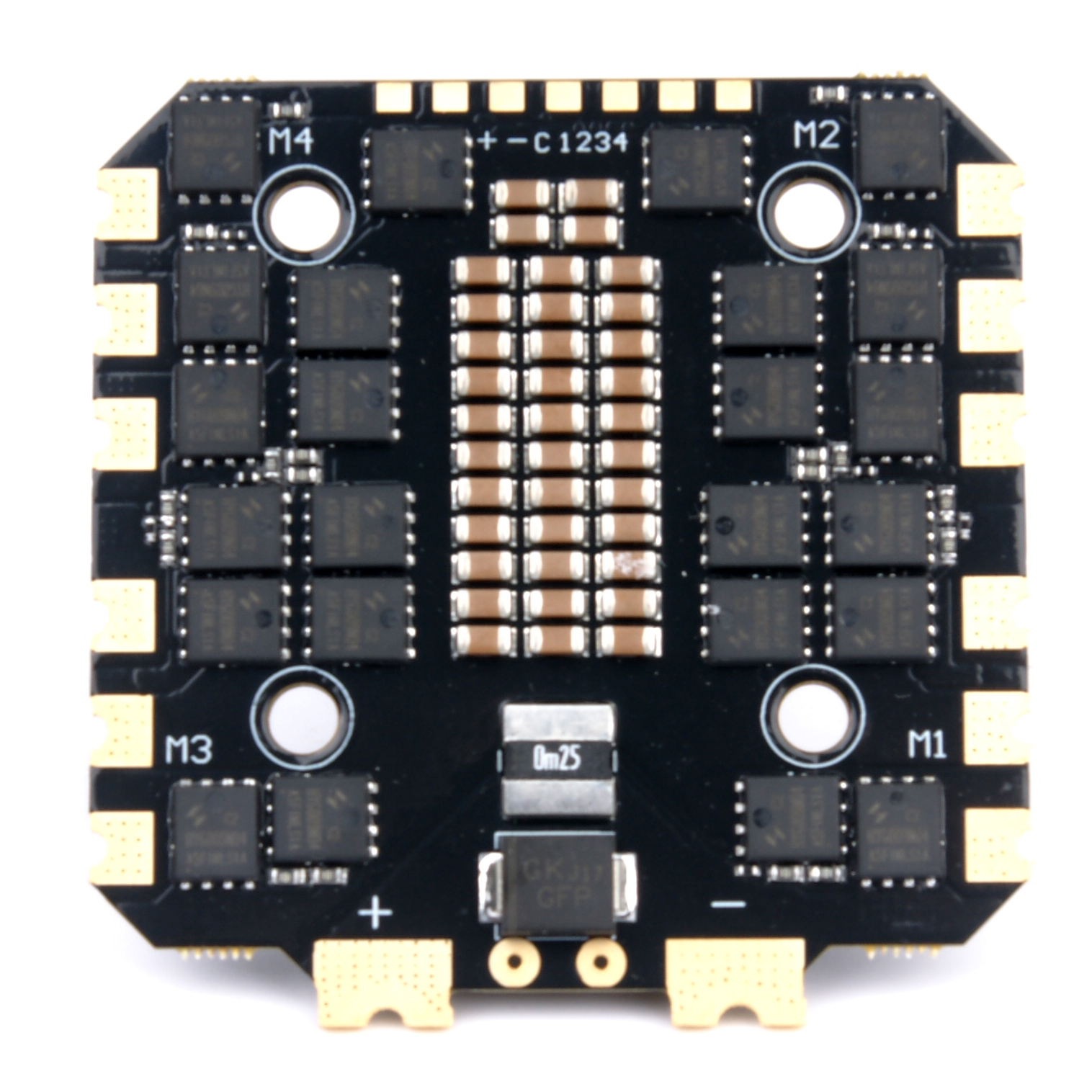

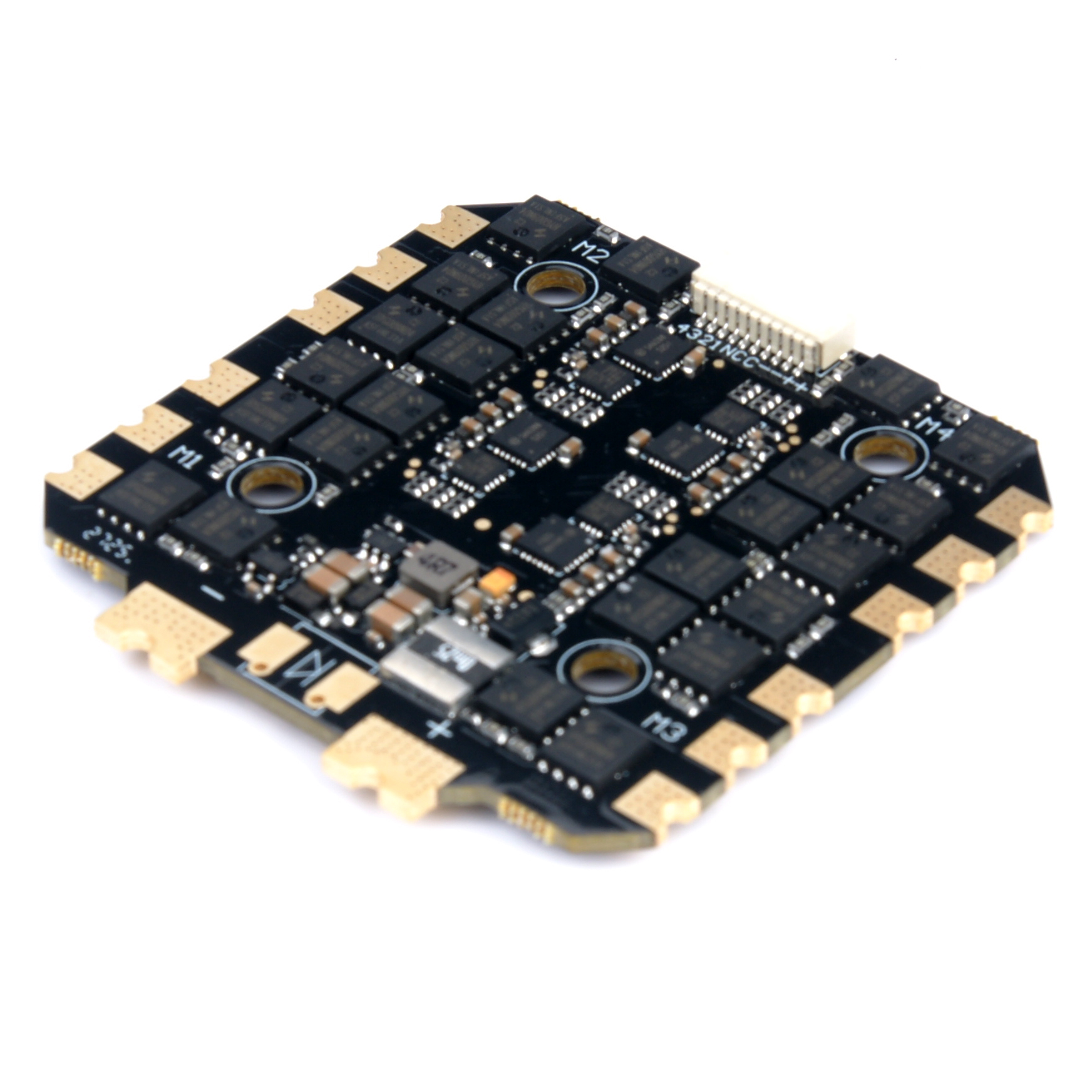

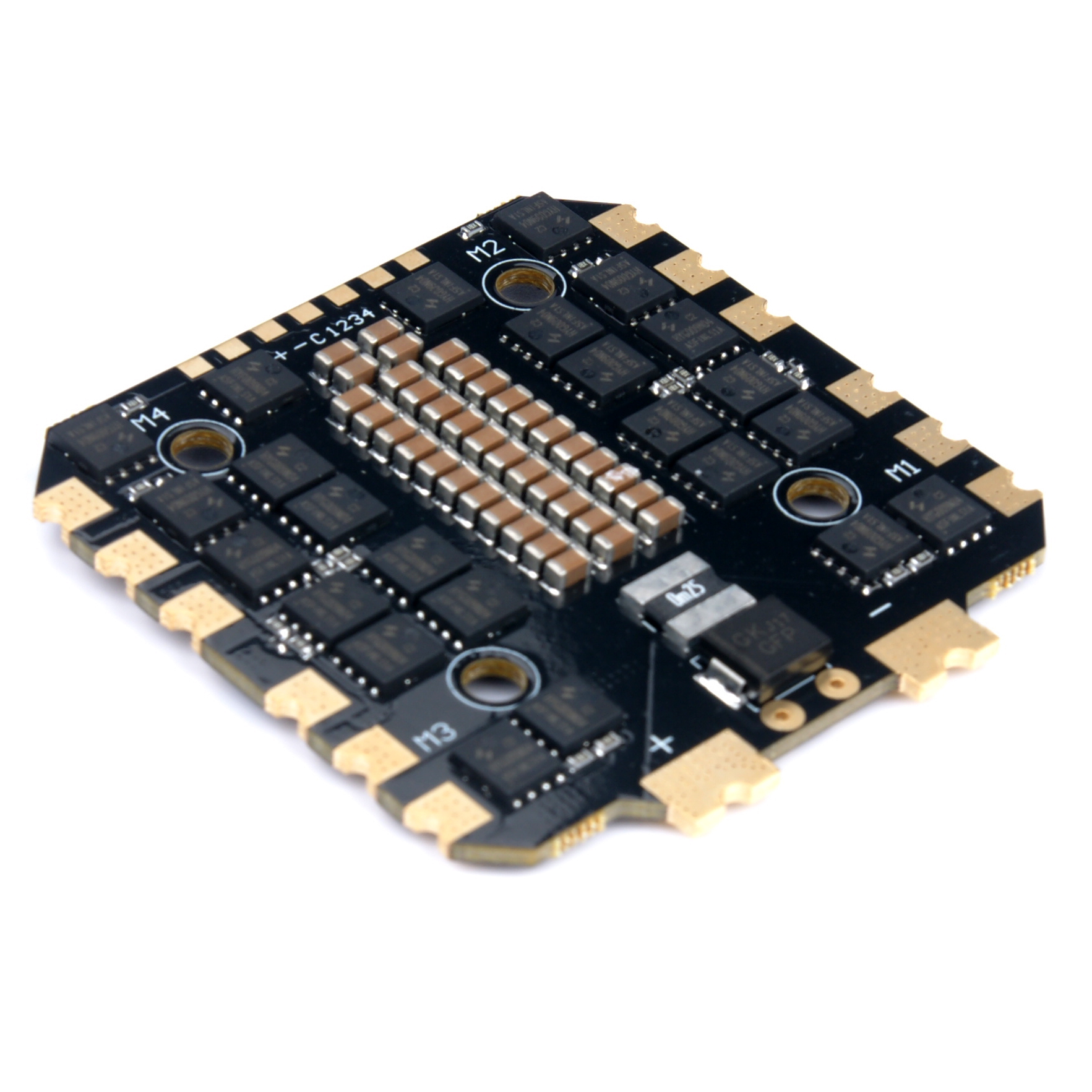

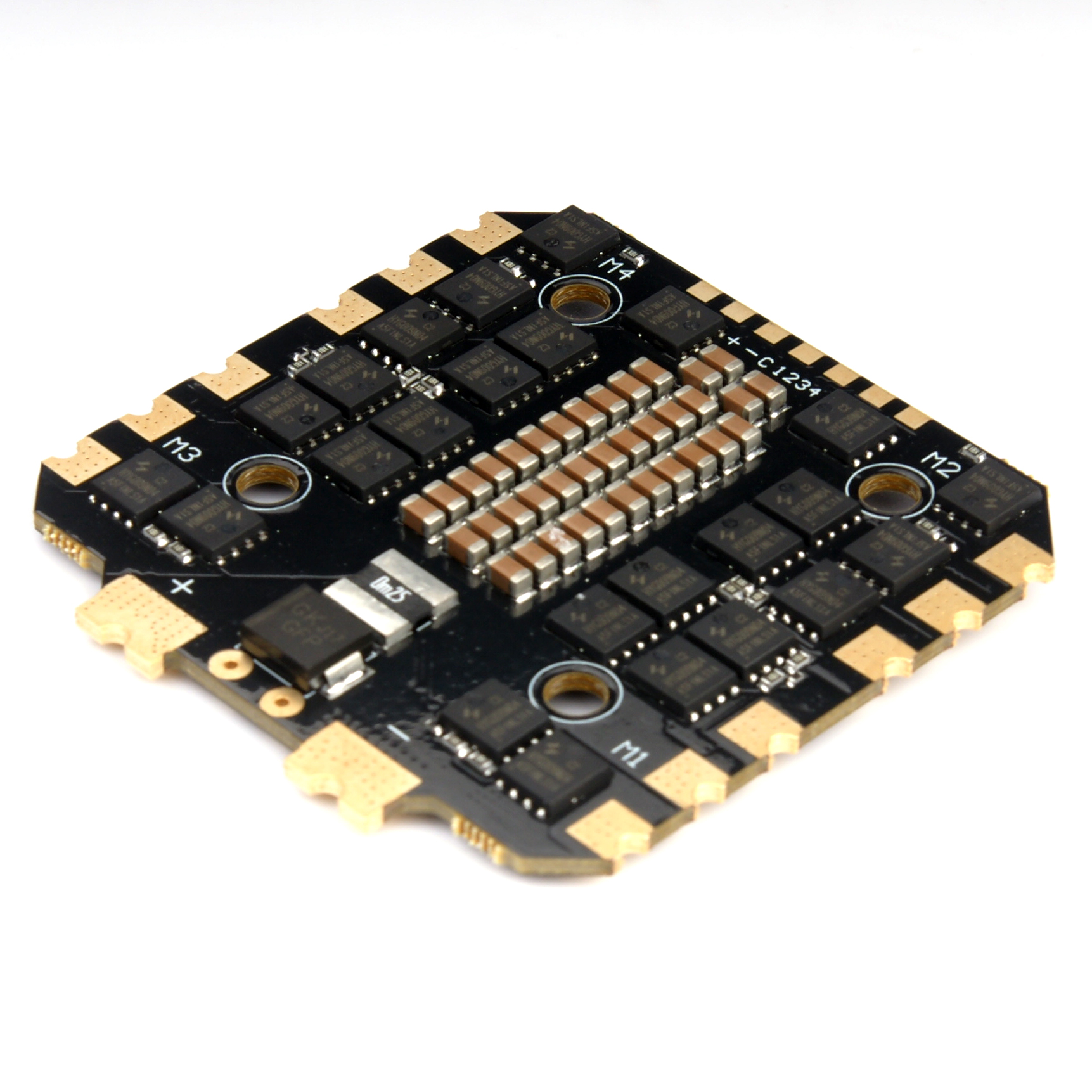

SCT 80A 8S ESC

Firmware: Q_H_40_24_v0.19.2.hex

Wireless parameter tuning: Not supported; all parameters can be tuned via data cable connection to Betaflight.

Continuous current: 80A*4

Maximum current: 90A

Electronic speed control and telemetry: Not supported

TVS protection diode: Yes

External capacitor: 50V 2200uf high-frequency low-impedance capacitor

Temperature protection: Supported

Input voltage: 4S-8S lithium-ion battery

Output voltage: VBAT

Ammeter: Supported

Mounting hole: M4

Mounting hole size: 30.5x30.5mm (4mm diameter)

Dimensions: 57*56mm

Weight: 28g
