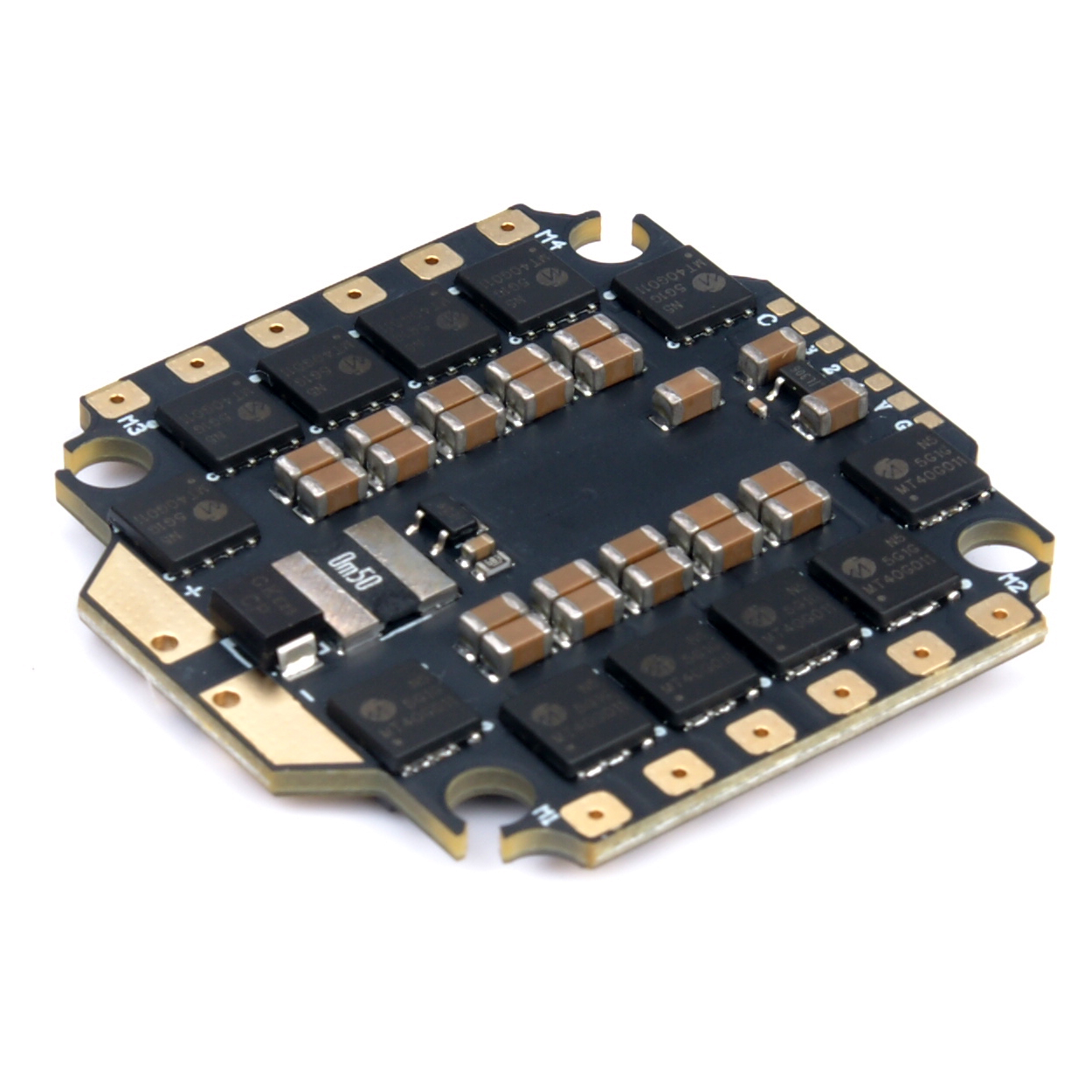

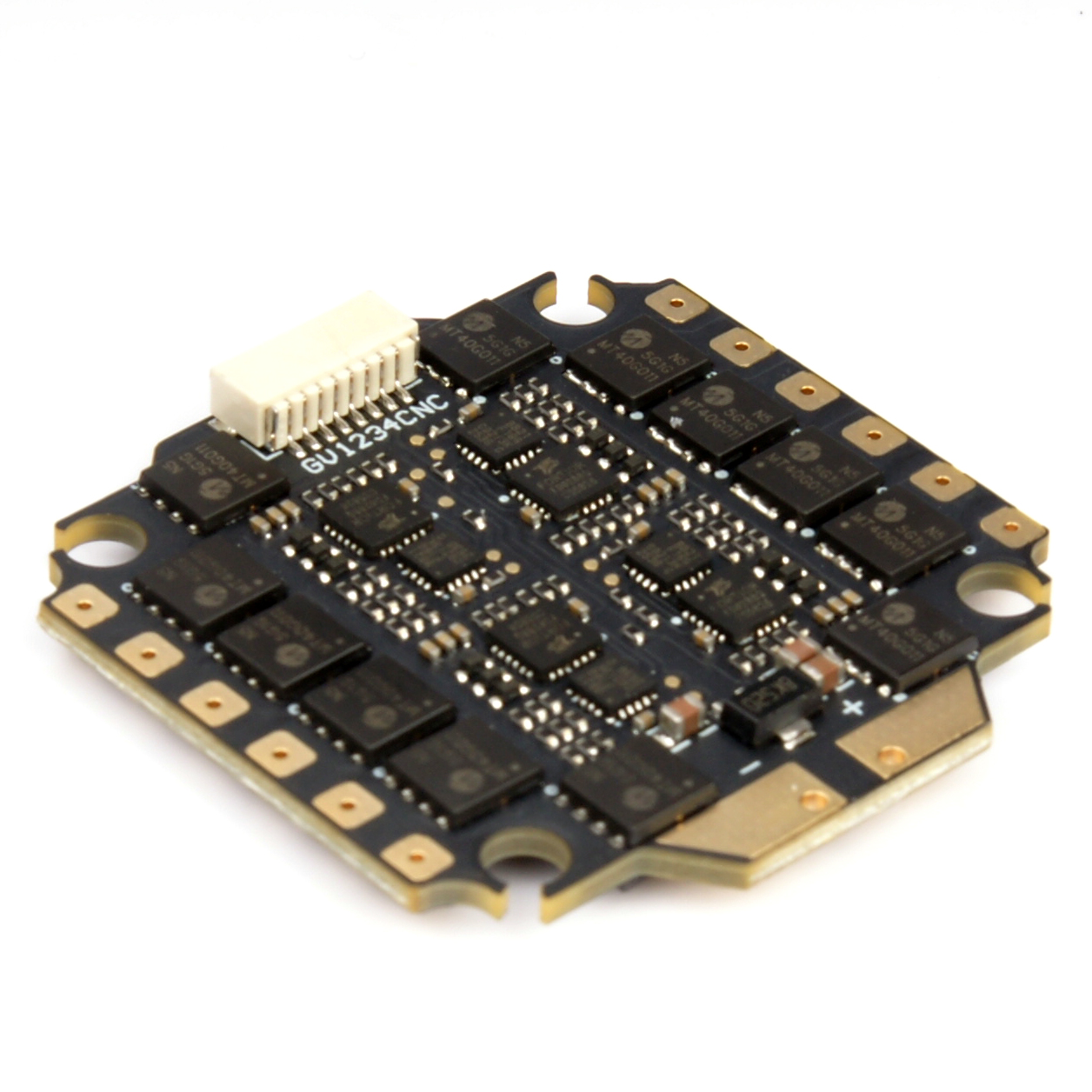

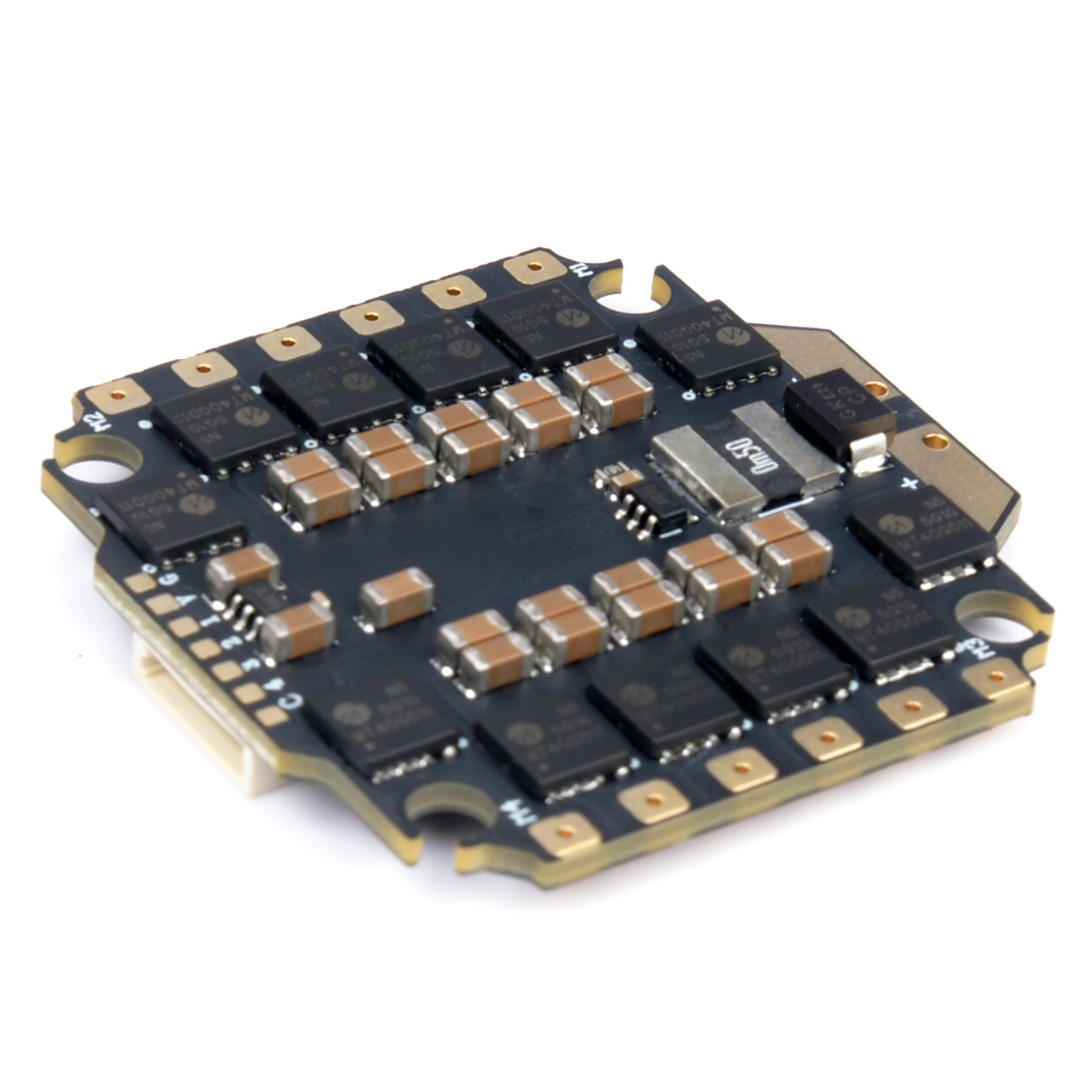

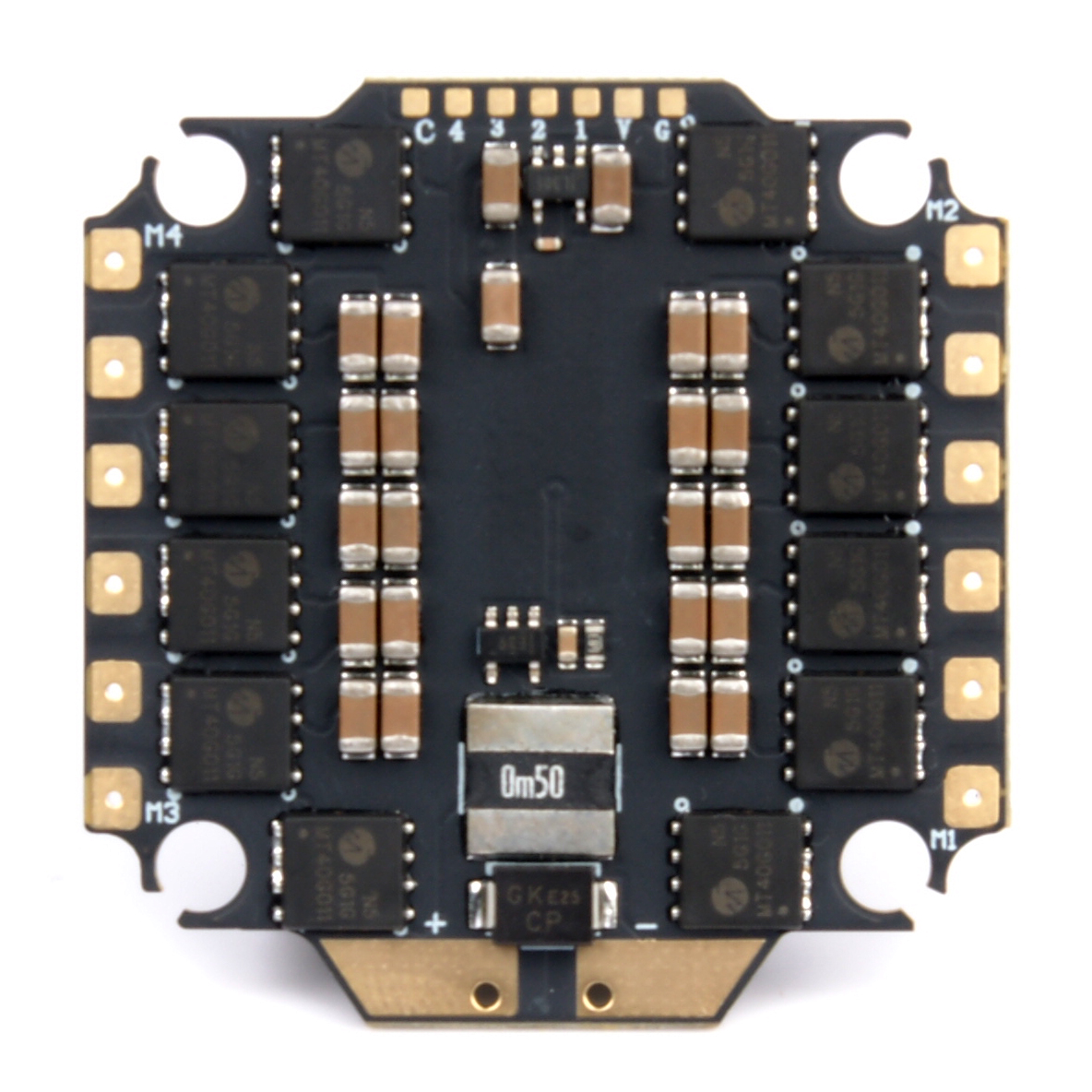

SCT 60A
SCT
Firmware: J_H_30_REV16_7
Wireless parameter tuning: Not supported; all parameters can be tuned via data cable connection to Betaflight
Continuous current: 60A*4
Maximum current: 65A (5 seconds)
TVS protection diode: YES
External capacitor: 1000uf high-frequency low-impedance capacitor
ESC/motor protocol: DSHOT300/600
Input voltage: 3S-6S lithium-ion battery
Output voltage: VBAT
Ammeter: Supported
Mounting hole: M4
Mounting hole size: 30.5x30.5mm (4mm diameter)
Dimensions: 42*41mm
Weight: 11.5g
