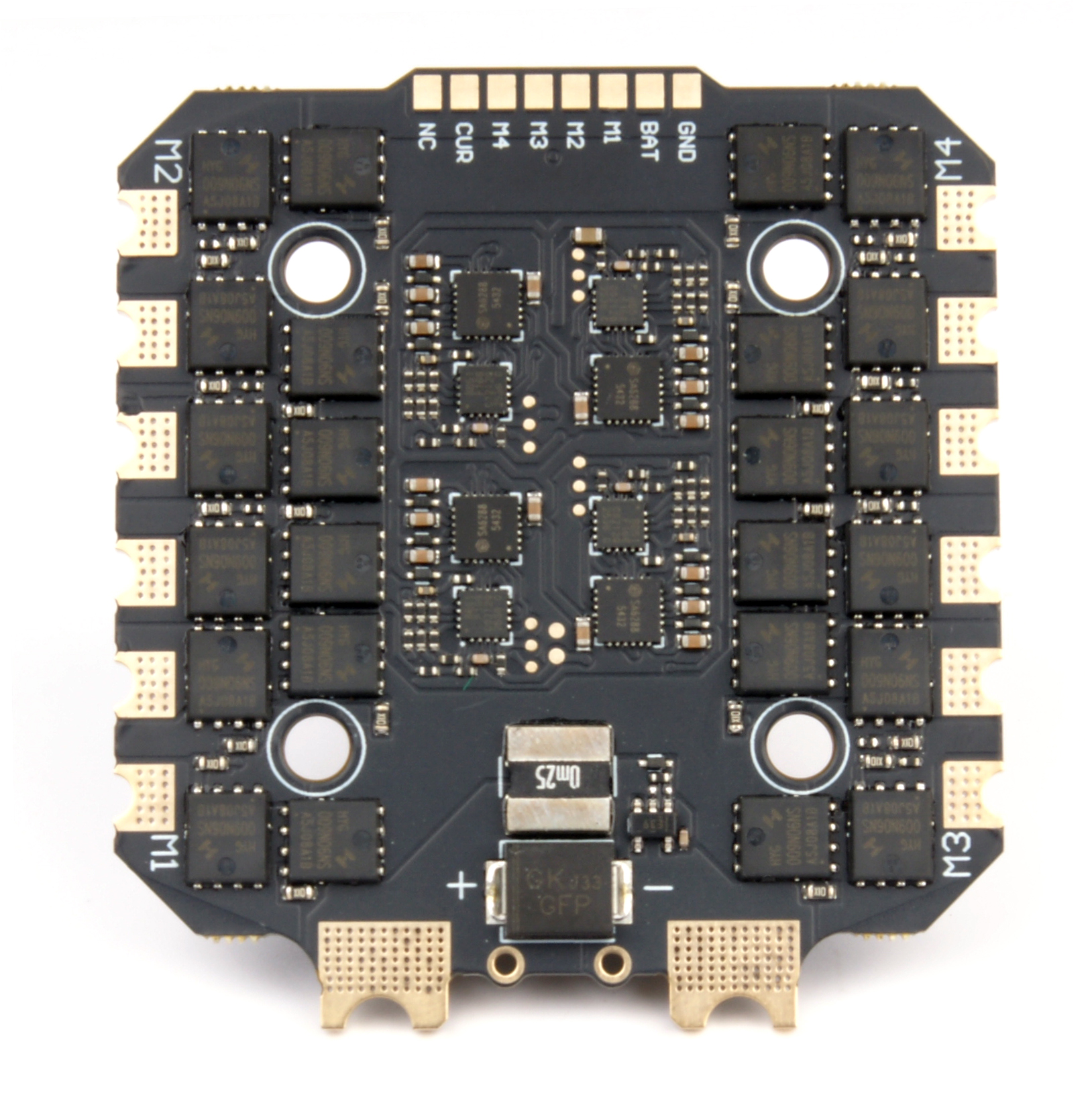

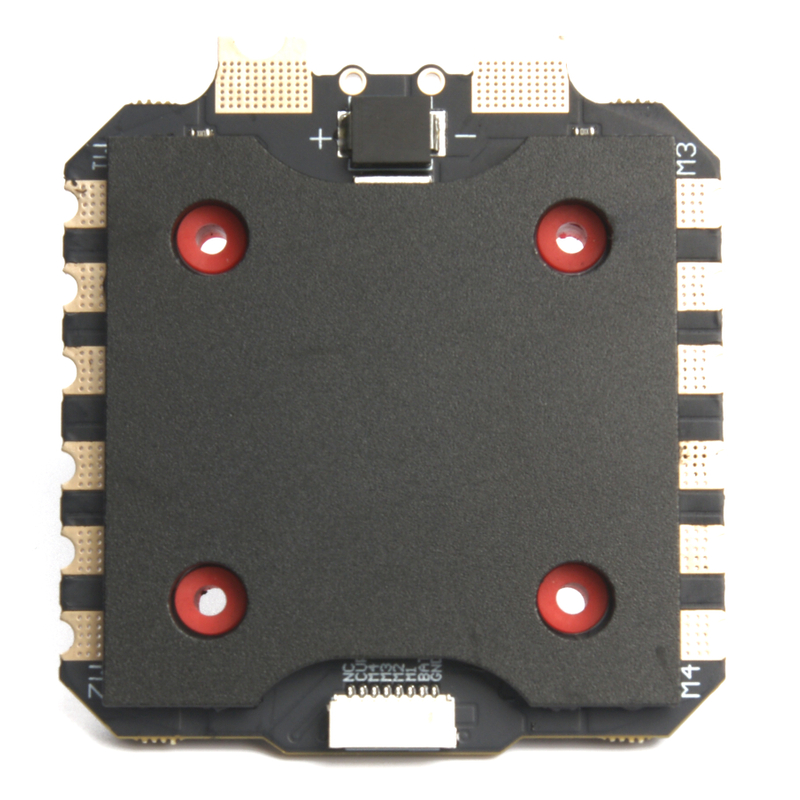

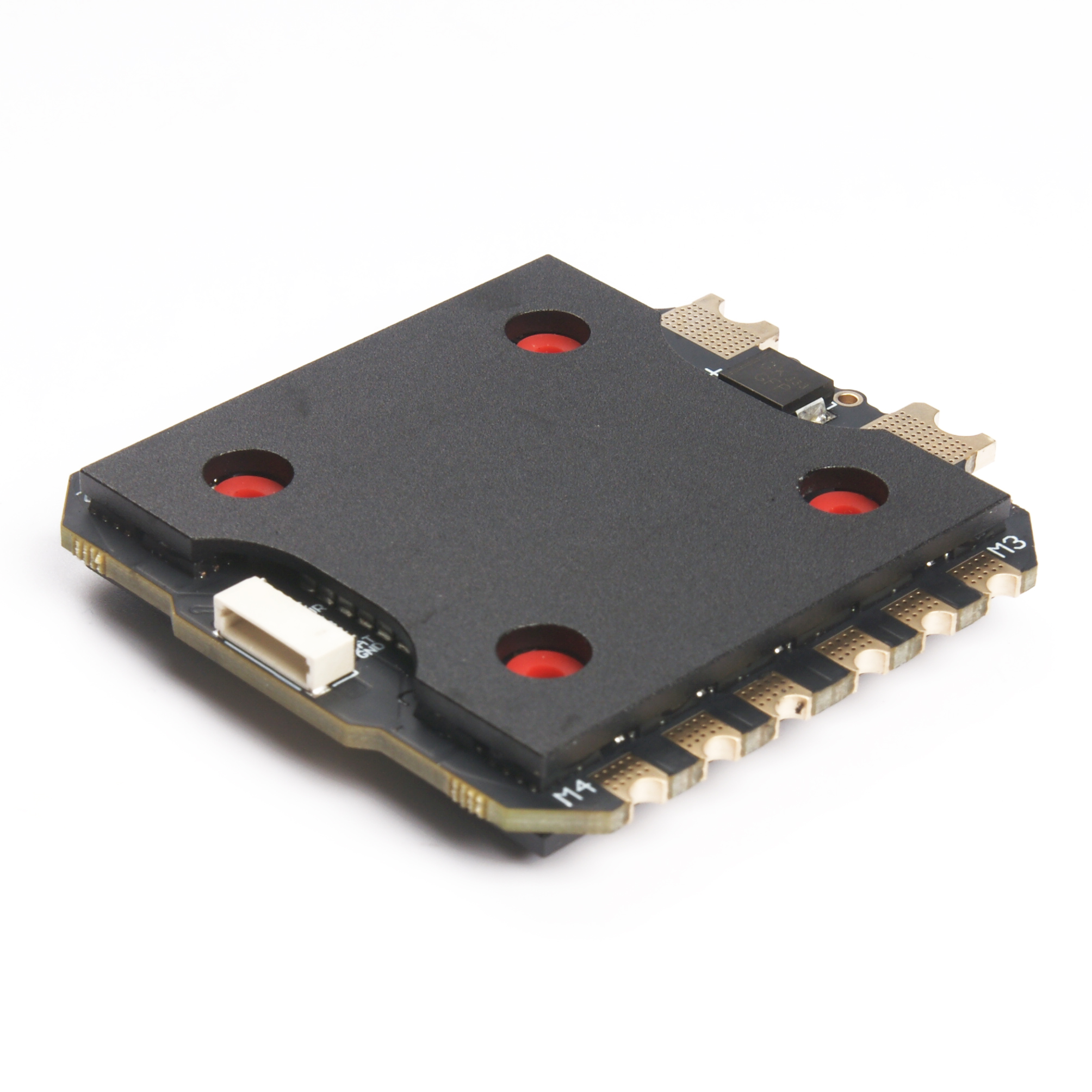

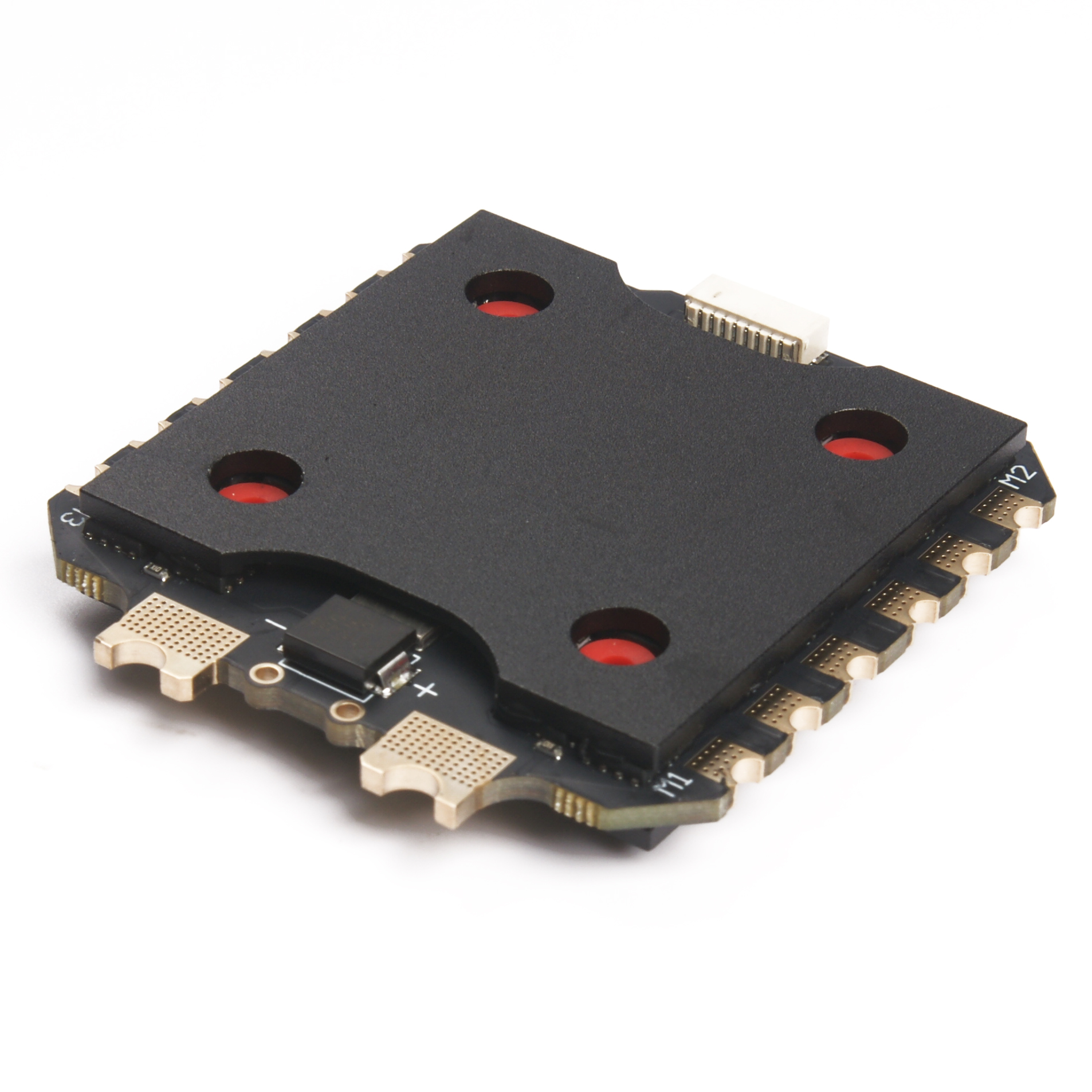

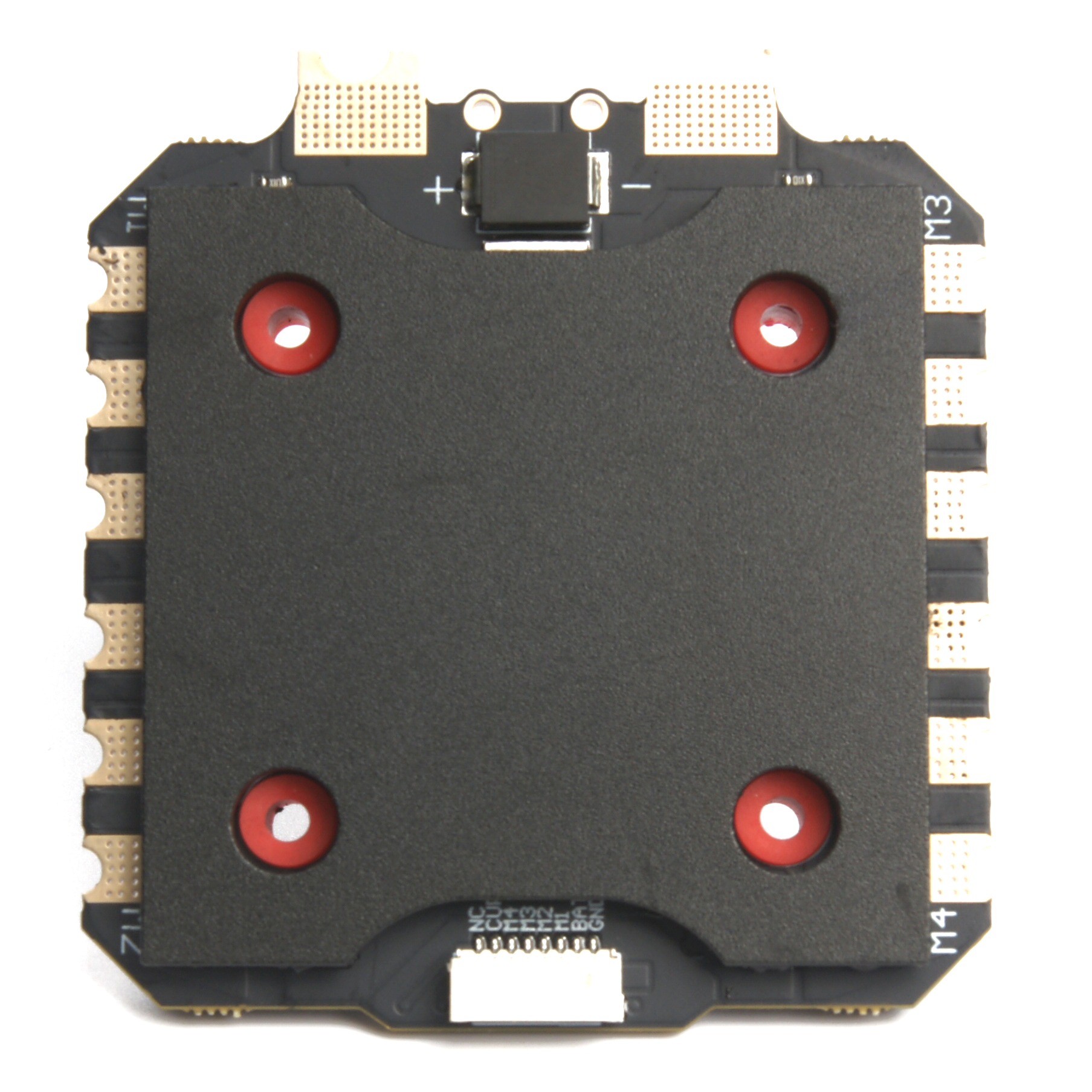

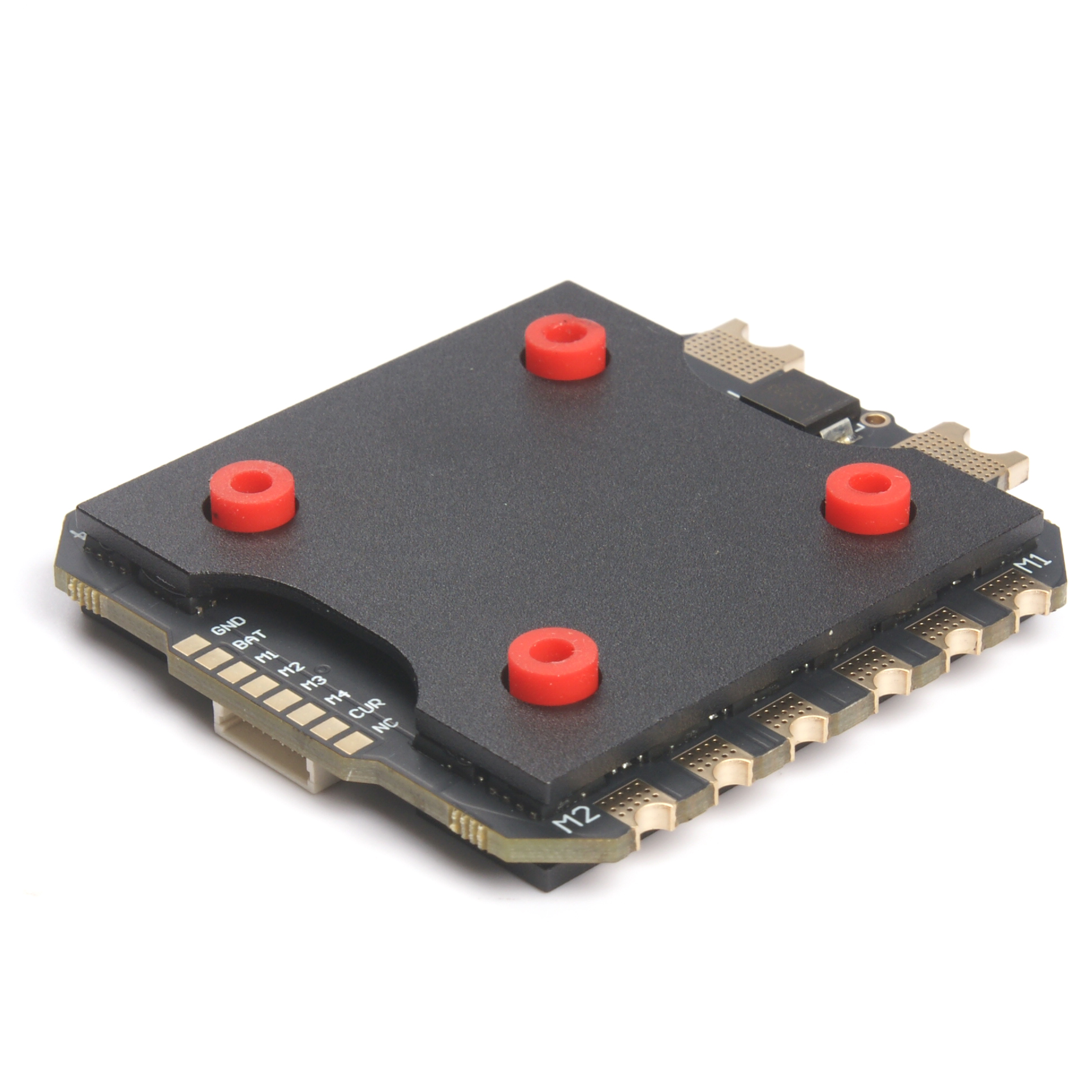

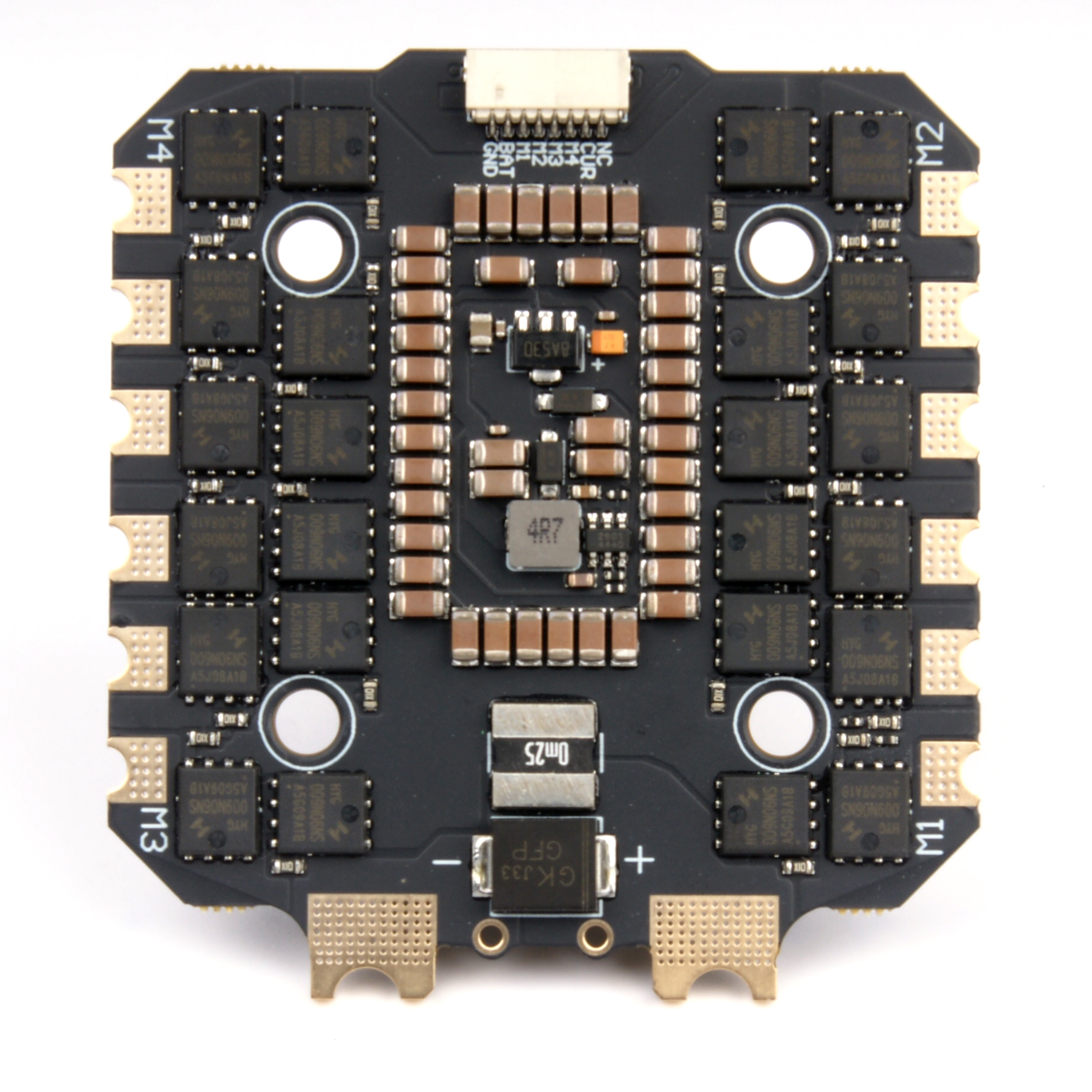

SCT 100A 3-8S ESC (S100)

Firmware: B_X_30_REV16_7

Continuous Current: 100A*4

Maximum Current: 105A (5s)

Supported Protocols: Dshot 150/300/600

TVS Protection Diode: YES

External Capacitor: 50V 2200uf High-Frequency Low-Impedance Capacitor

Temperature Protection: Supported

Input Voltage: 3-8S Lipo

Output Voltage: VBAT

Ammeter: Supported (Calibration Value 200)

Mounting Hole: M4

Hole Spacing: 30.5x30.5mm (4mm Hole Diameter)

Dimensions: 56.3*61.1mm

Weight: 29.5g
