Up to 1 Watt power output
Packet rates up to 200Hz
Optimized circuitry for ultra-low power consumption
Built-in TCXO oscillator
Low noise, high comfort
High contrast OLED display
High efficiency cooling system
Wifi and Bluetooth support
Built-in ExpressLRS backpack
5 Directional nav key
915/868MHz T Antenna included
With the Nano connector, support Zorro, Pocket and MT12 Radio

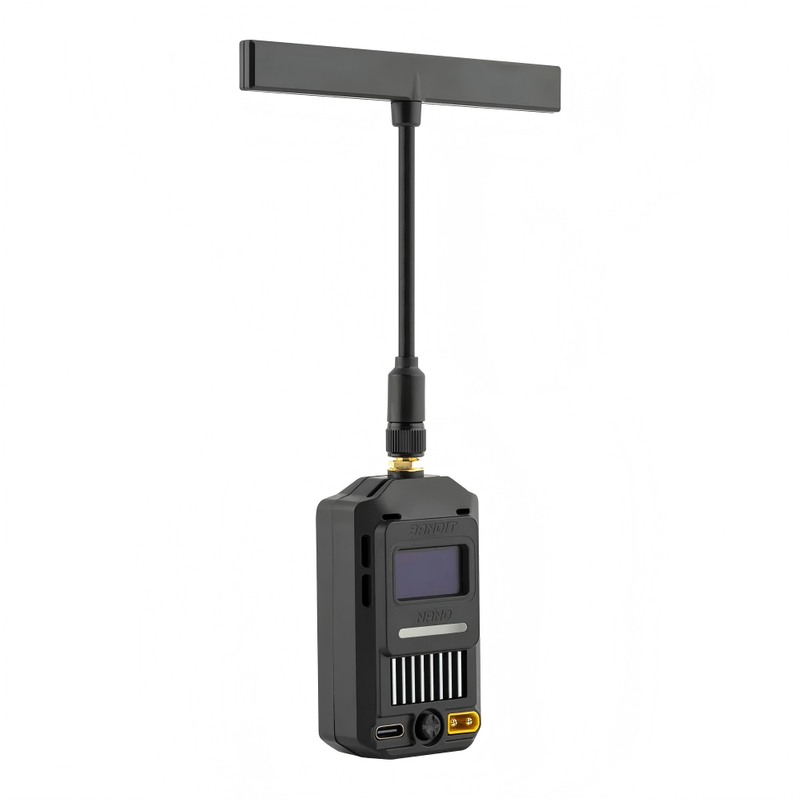

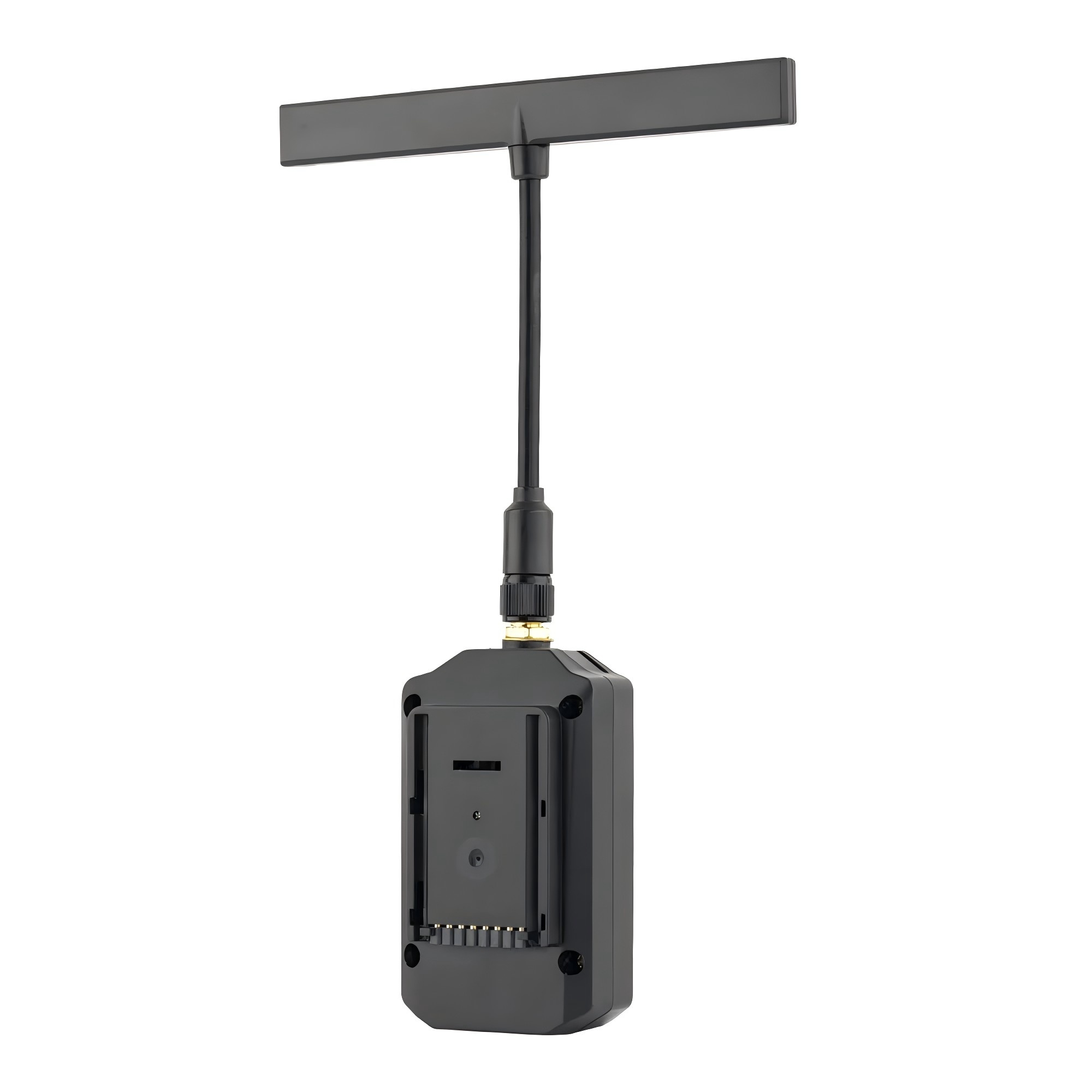

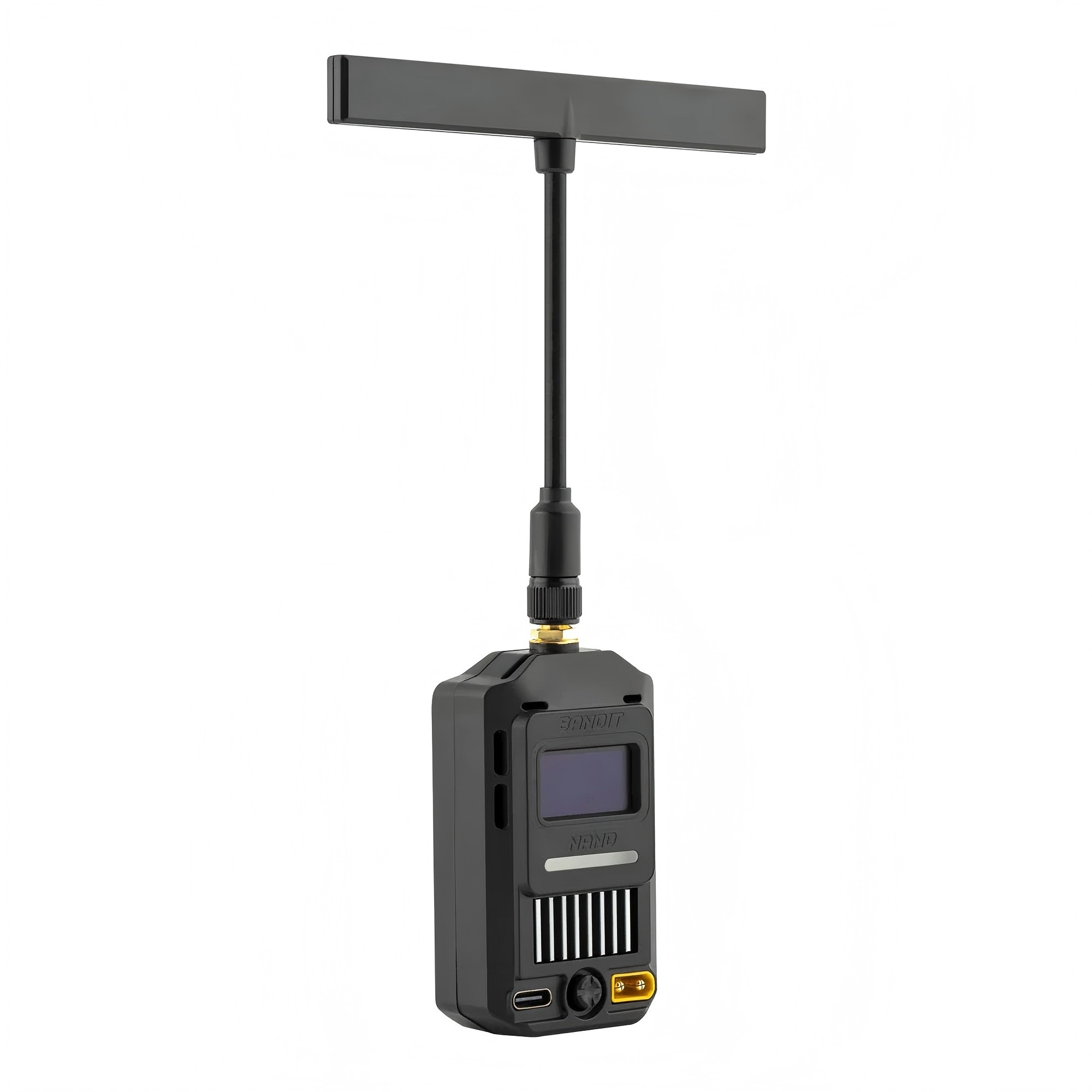

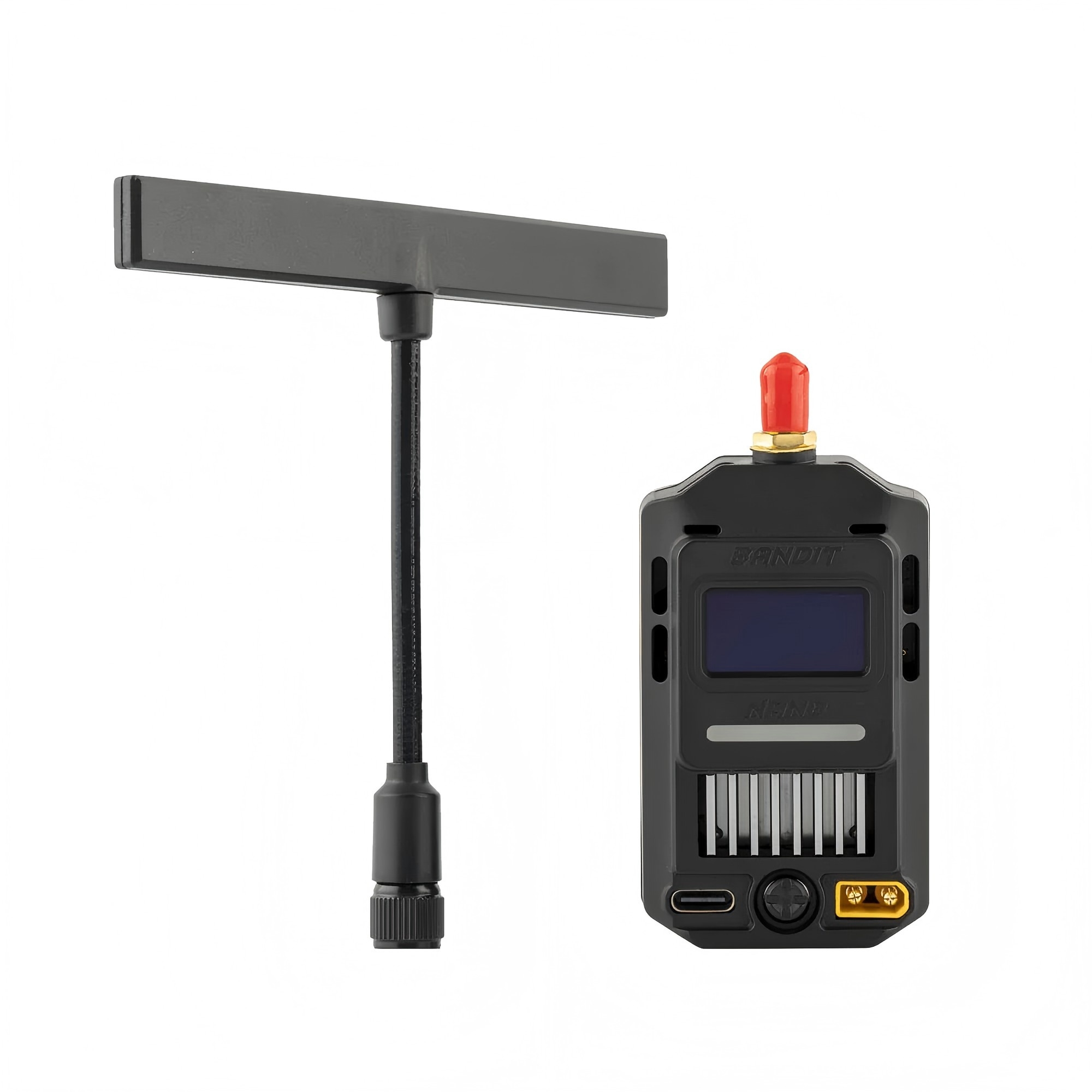

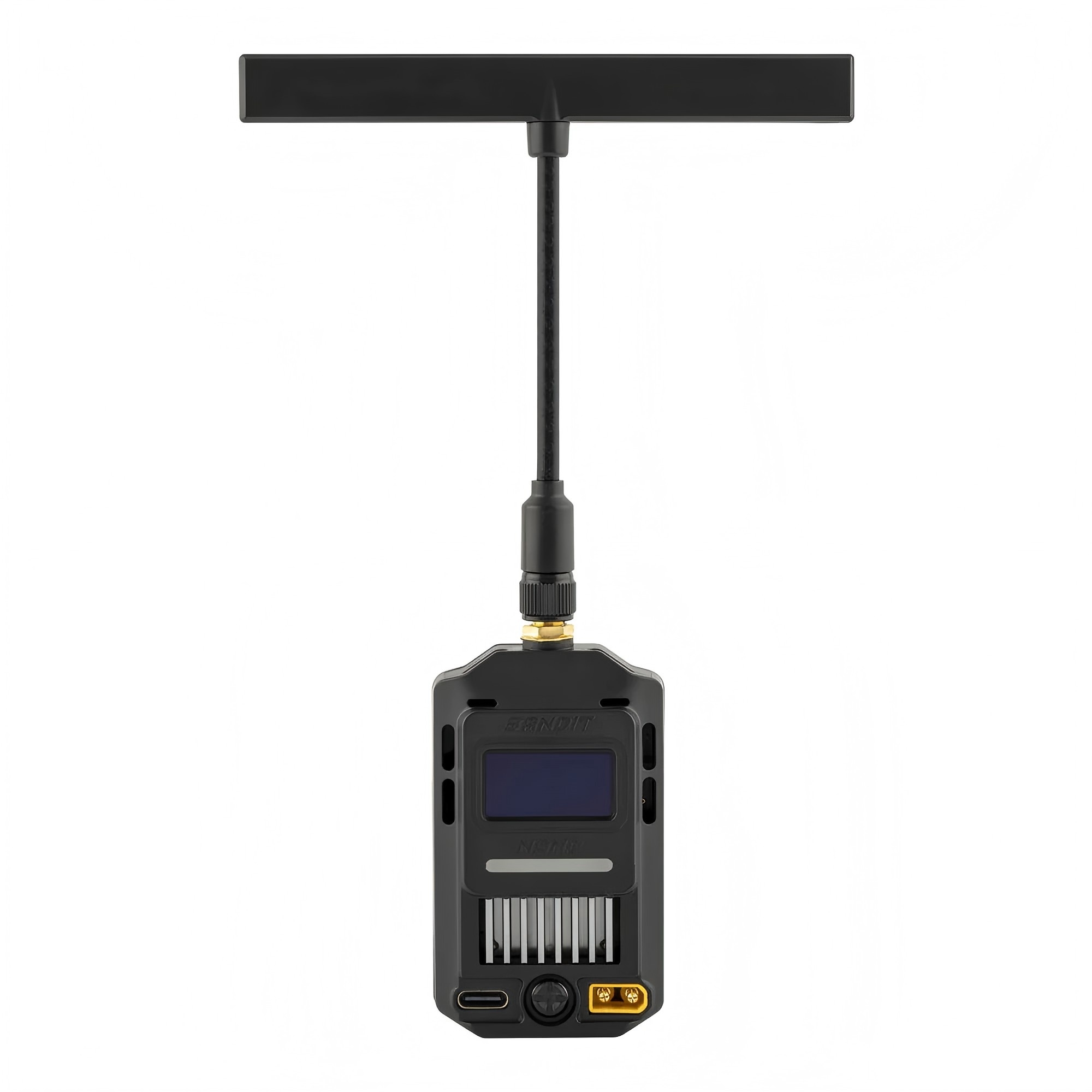

Item: Bandit Nano ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
Nano standard 8 pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V ~ 16.8V
Weight: 62.5grams (with T antenna）
Dimension: 68.5*41.0*27.0mm
Up to 1 Watt power output
Packet rates up to 200Hz
Optimized circuitry for ultra-low power consumption
Built-in TCXO oscillator
Low noise, high comfort
High contrast OLED display
High efficiency cooling system
Wifi and Bluetooth support
Built-in ExpressLRS backpack
5 Directional nav key
915/868MHz T Antenna included
With the Nano connector, support Zorro, Pocket and MT12 Radio
Item: Bandit Nano ExpressLRS RF Module
Regulatory Domain: FCC915
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF Chip: SEMTECH SX1276
Refresh Rate Min/Max: 25Hz/200Hz
Nano standard 8 pin connector
Built-in OLED screen
XT30 Power Supply Voltage: DC 6V ~ 16.8V
Weight: 62.5grams (with T antenna）
Dimension: 68.5*41.0*27.0mm
