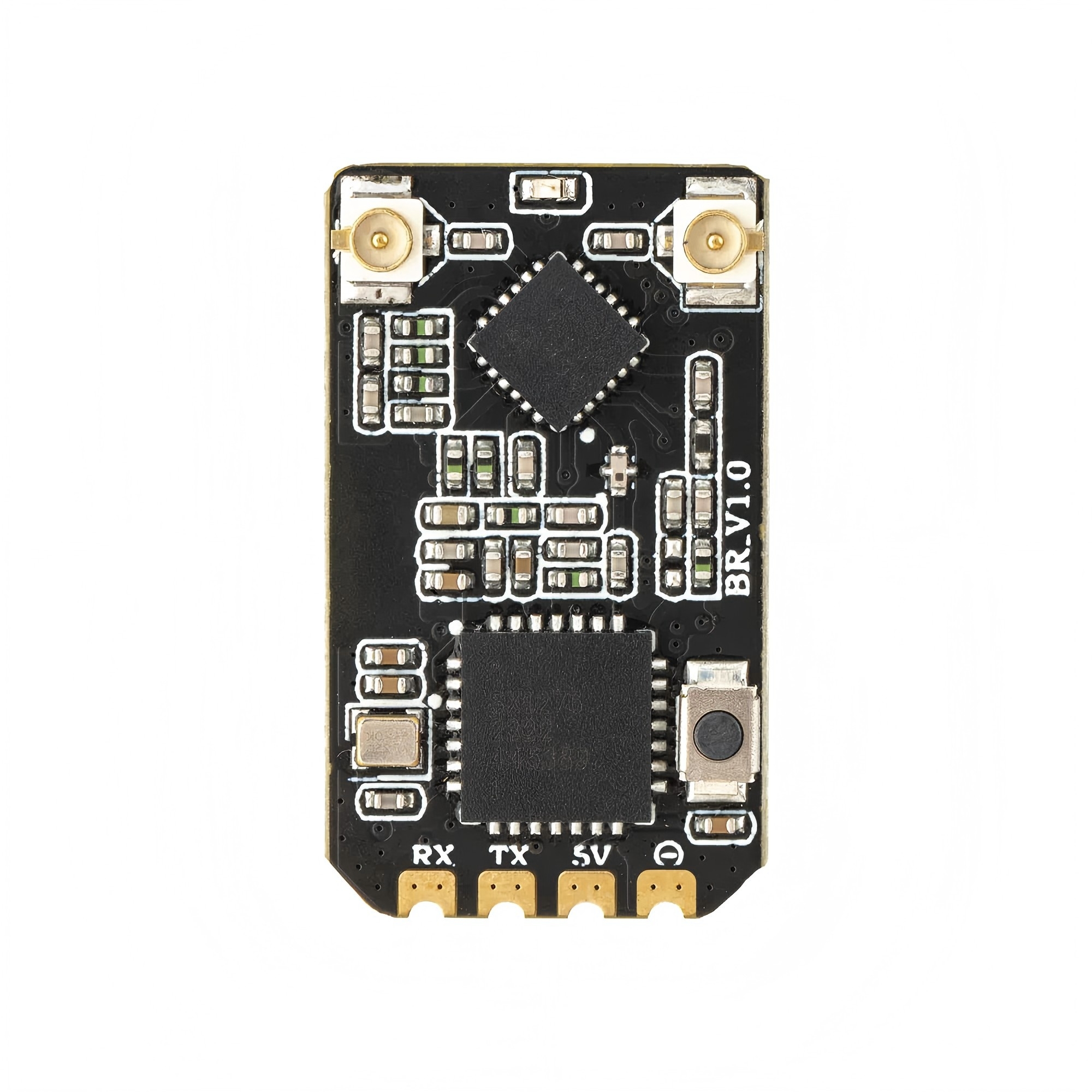

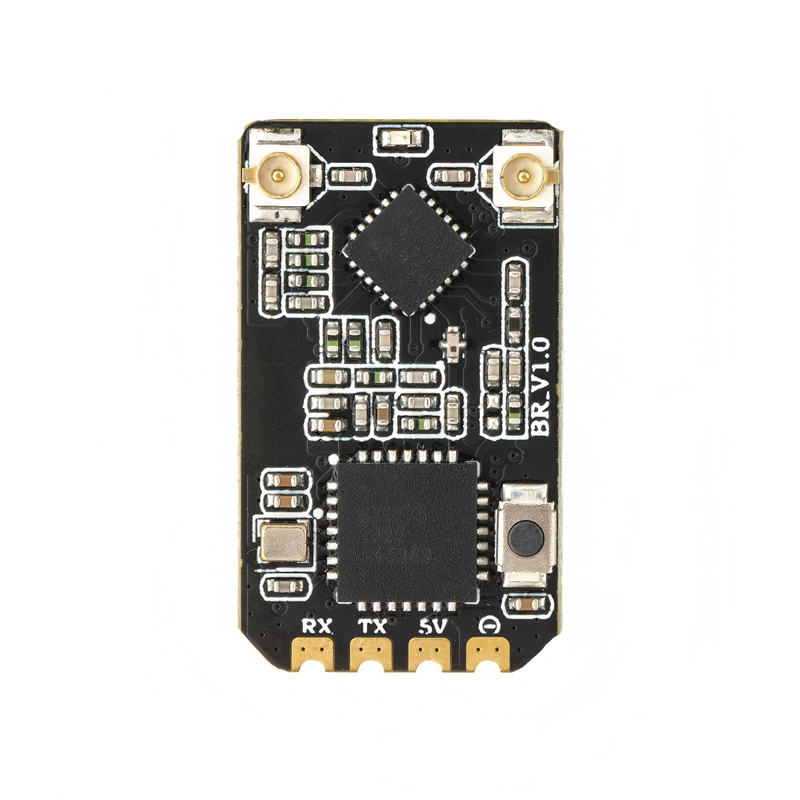

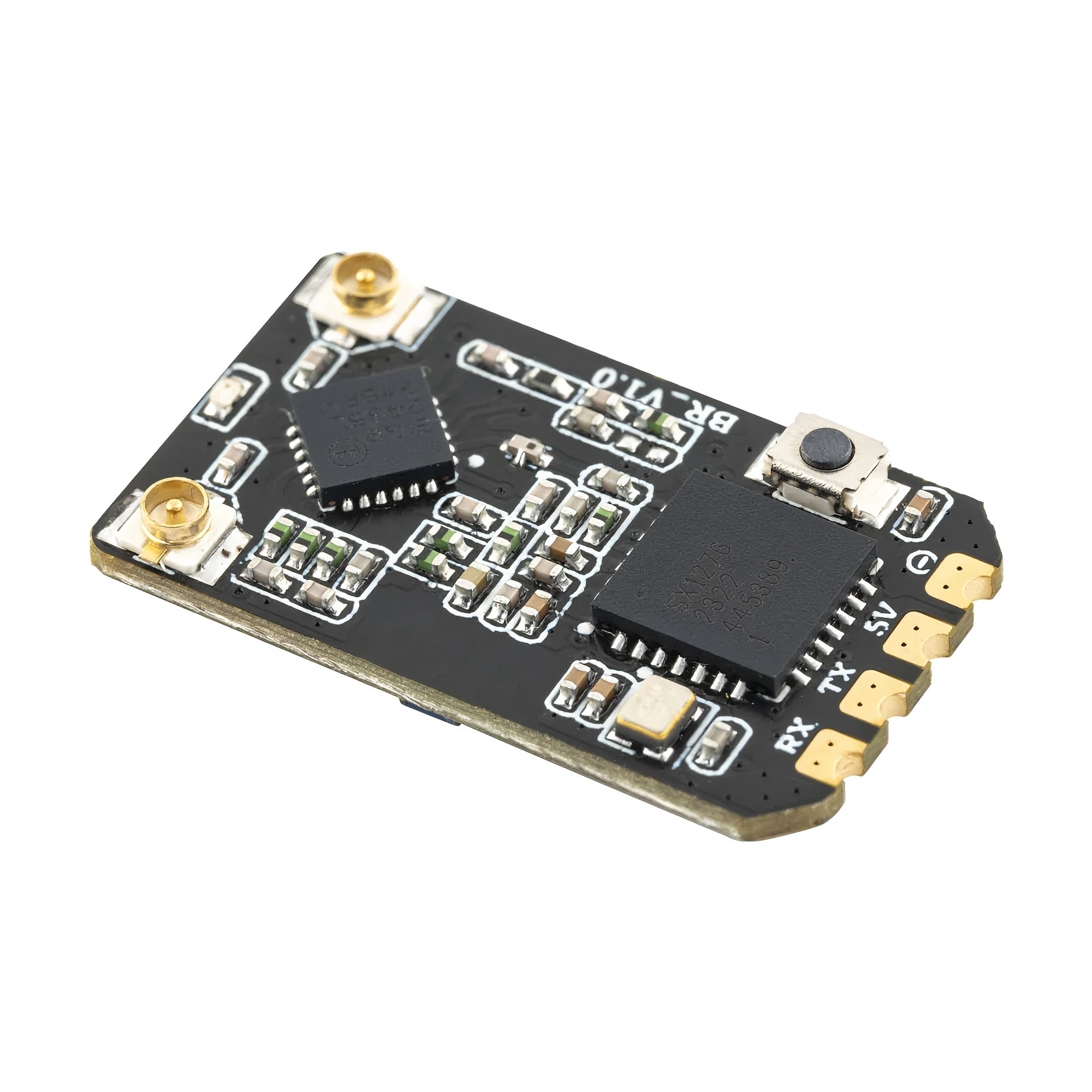

RadioMaster Bandit BR3 ExpressLRS 915MHz Receiver

Features

• Maximum 500mW telemetry RF power

• Built-in TCXO oscillator

• Utilizing 0402 components, superior resistance to vibration

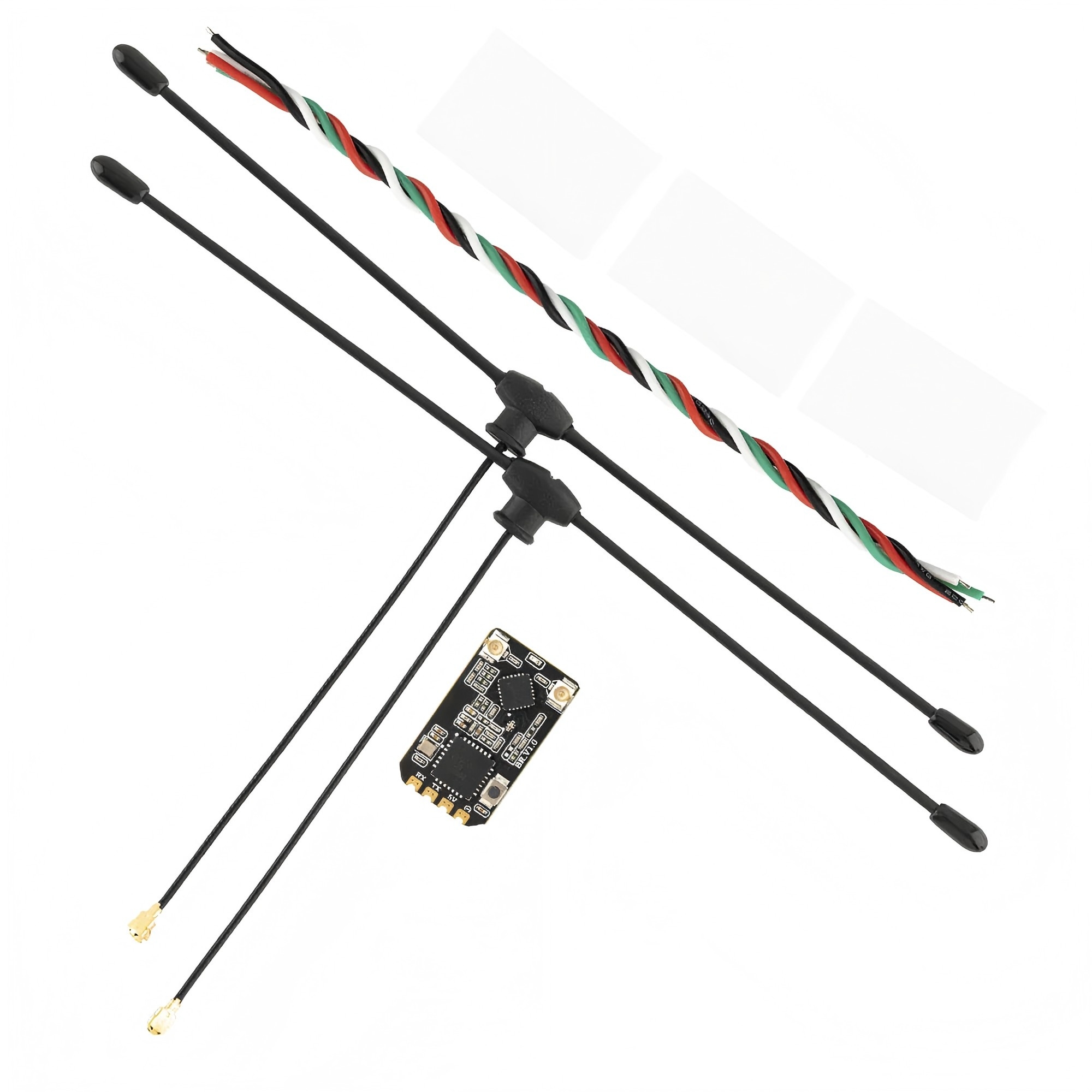

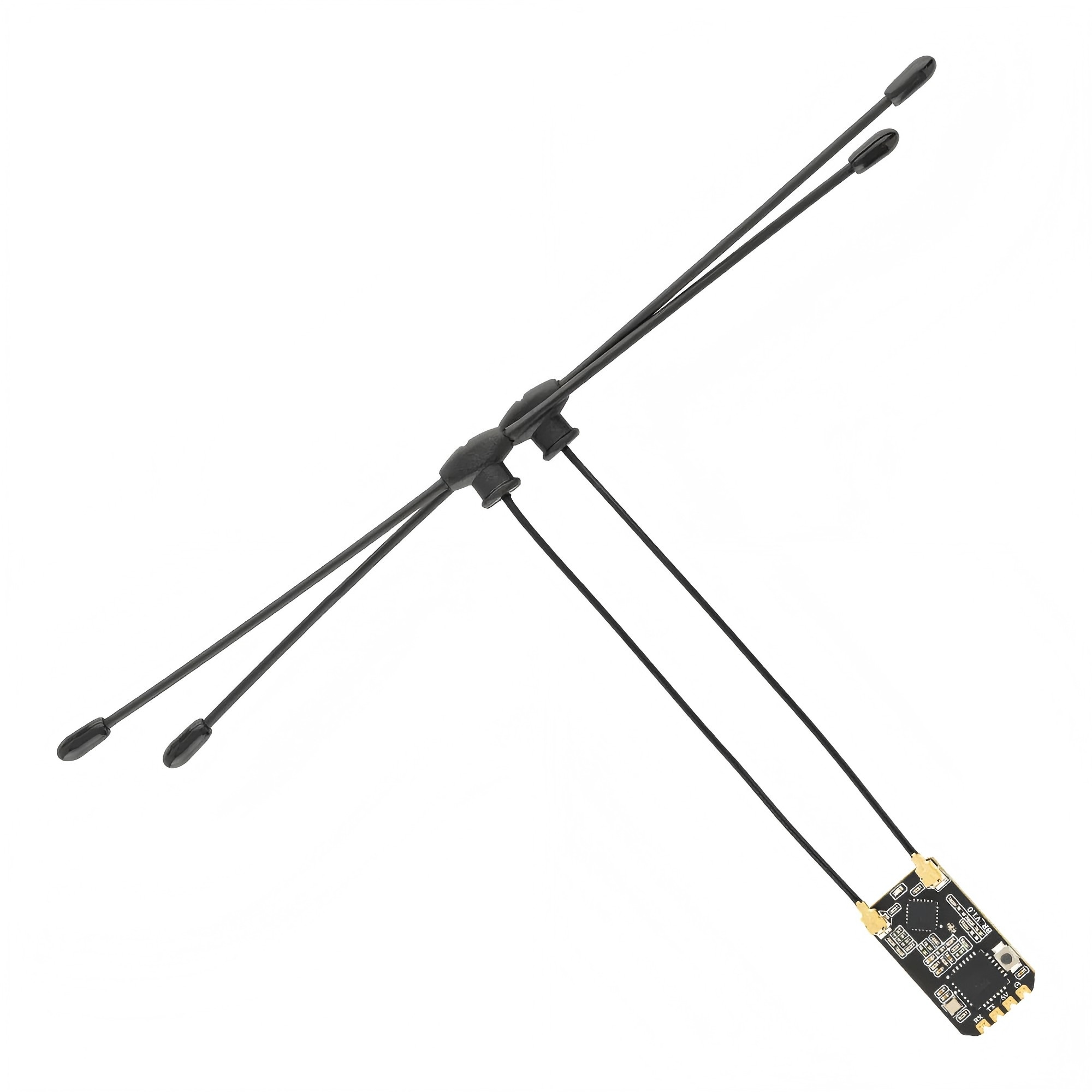

• Dual 915/868MHz T Antenna for improved signal stability and range

Specifications

• Item: Bandit BR3 ExpressLRS Receiver

• Regulatory Domain: FCC915

• MCU: ESP8285

• RF Chip: SEMTECH SX1276

• Telemetry RF power: 100mW - 500mW LUA Adjustable

• Antenna: 915/868MHz T Antenna

• Antenna Interface: IPEX1

• Bus Interface: CRSF

• Working Voltage: DC 4.5-8.4V

• Dimension: 24*14.2mm

• Weight: 5.5g (with antennas)
