RadioMaster Bandit BR1 ExpressLRS 915MHz Receiver

Features

• Built-in TCXO oscillator

• Utilizing 0402 components, superior resistance to vibration

• Lightweight and compact design

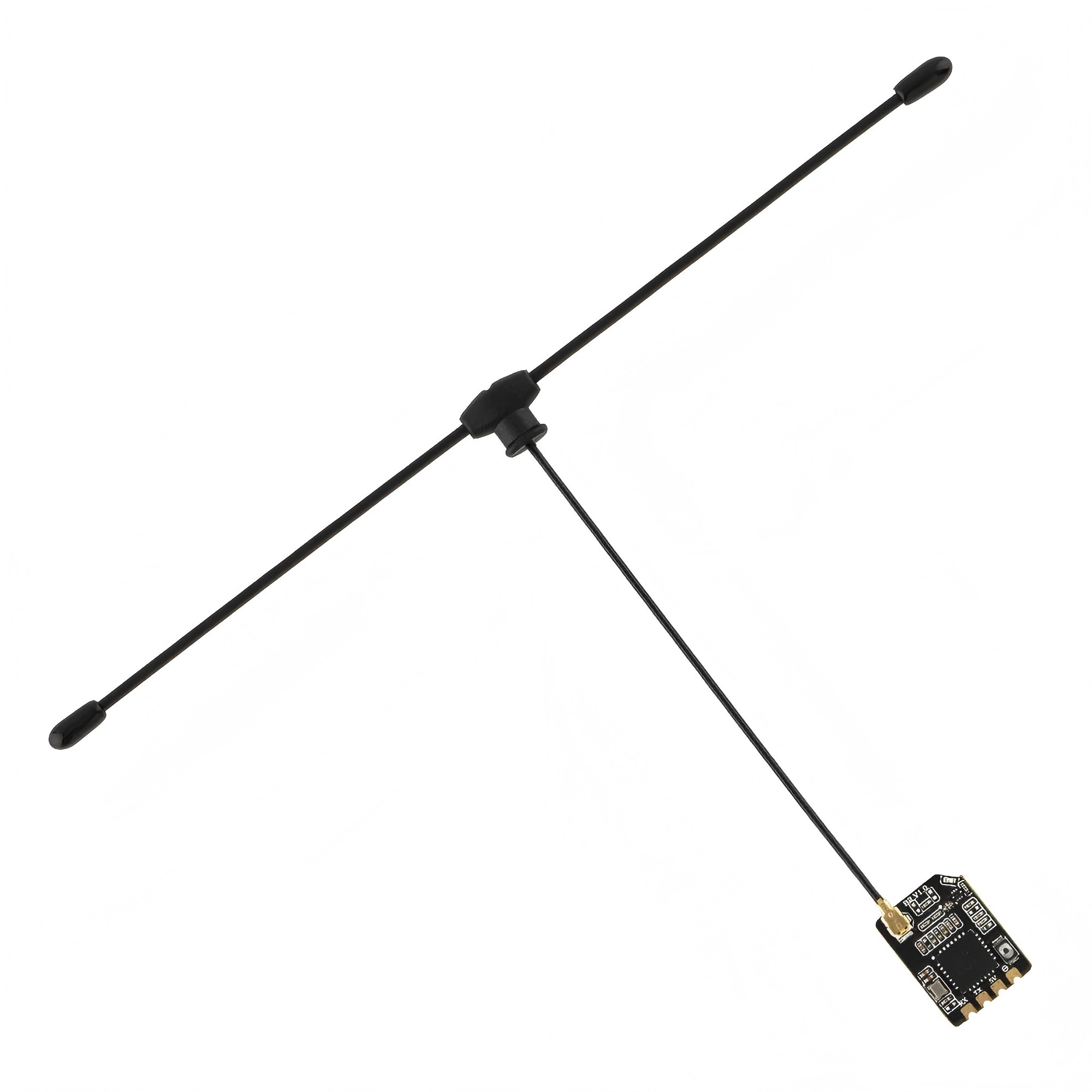

• High-sensitivity 915/868MHz T Antenna included

Specifications

• Item: Bandit BR1 Expresslrs Receiver

• Regulatory Domain: FCC915

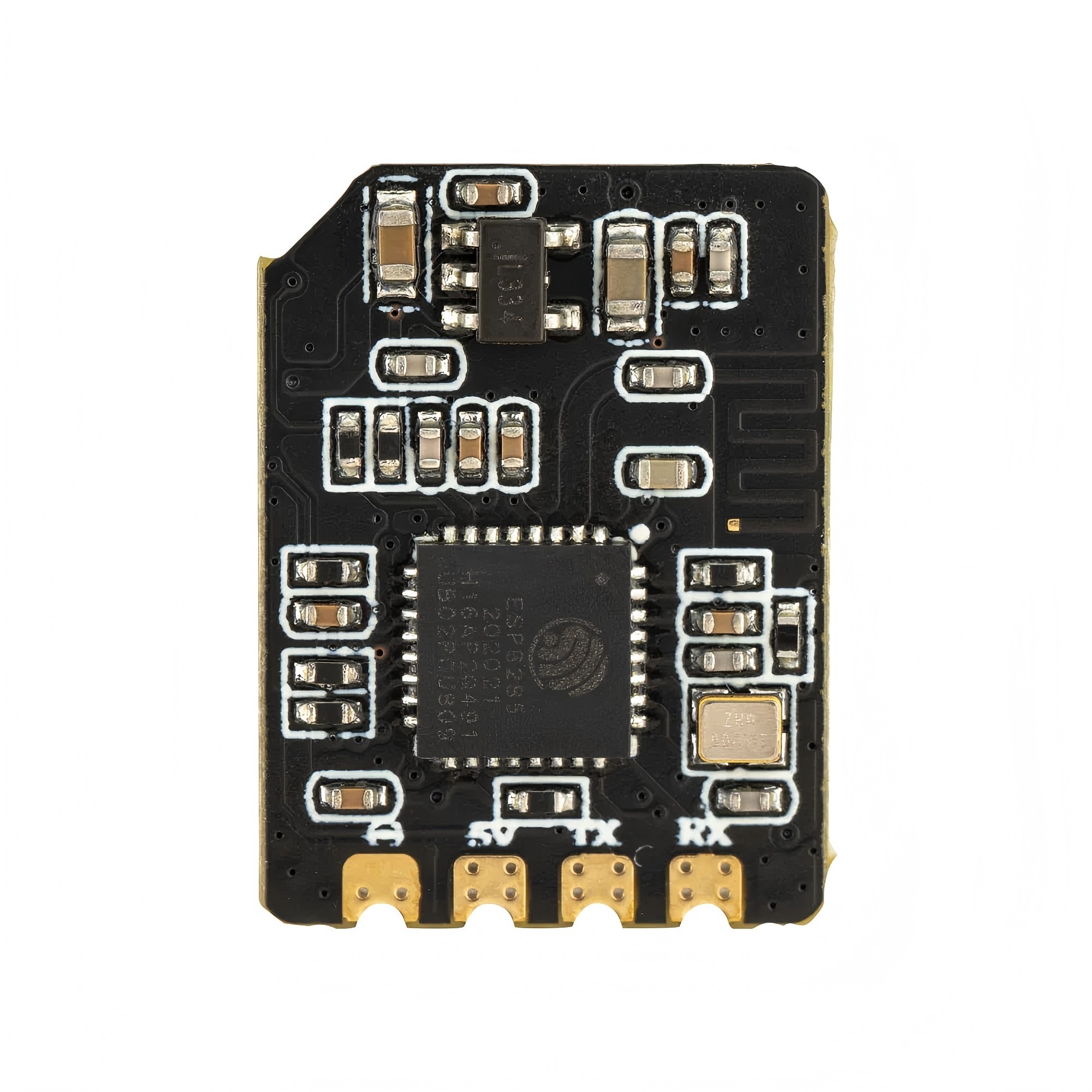

• MCU: ESP8285

• RF Chip: SEMTECH SX1276

• Telemetry RF Power: 50mw/17dbm

• Antenna: 915/868MHz T Antenna & Y Antenna

• Antenna Interface: IPEX1

• Bus Interface: CRSF

• Working Voltage: DC 5.0V

• Dimension: 18*13.8mm

• Weight: 2.9g (with T antenna)
