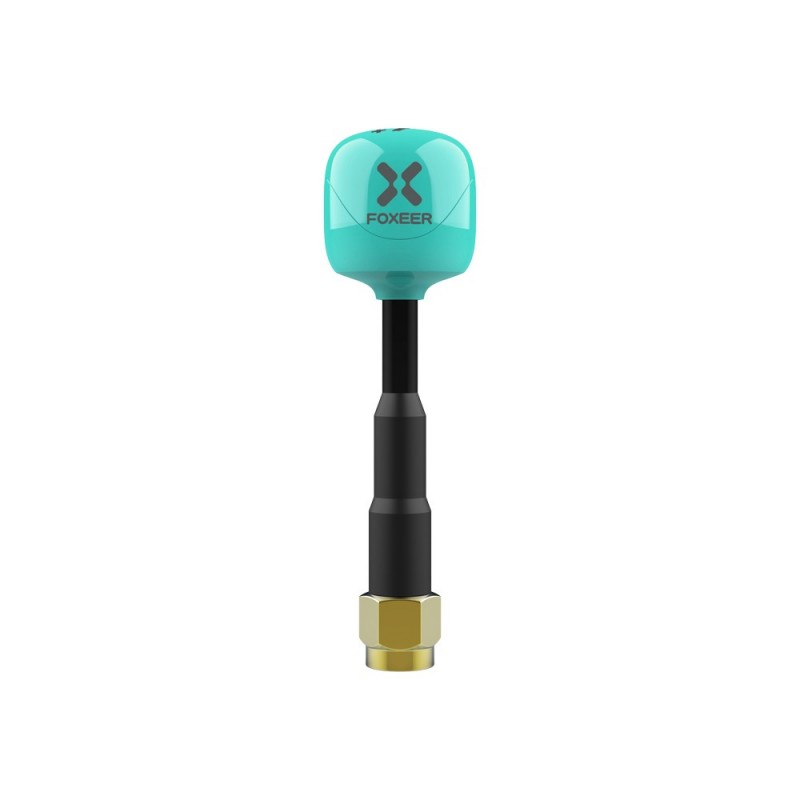

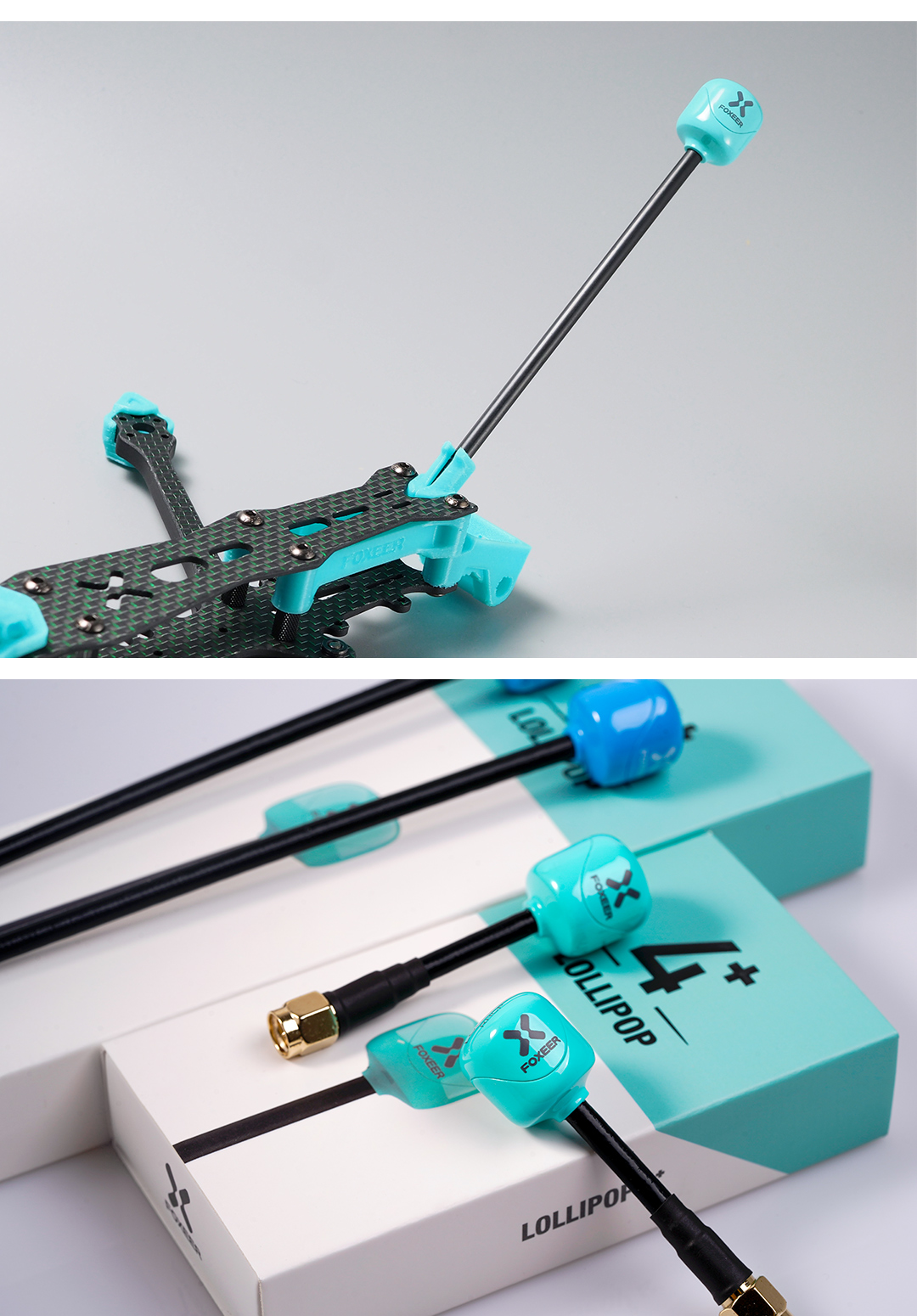

Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna - Buy drone antenna, 5.8G antenna, fpv antenna Product on Shenzhen Senchtec Technology Co.,Ltd.

Home » Product » Drone Parts » Antenna » Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni LDS Antenna

Center Frequency	5.75GHz

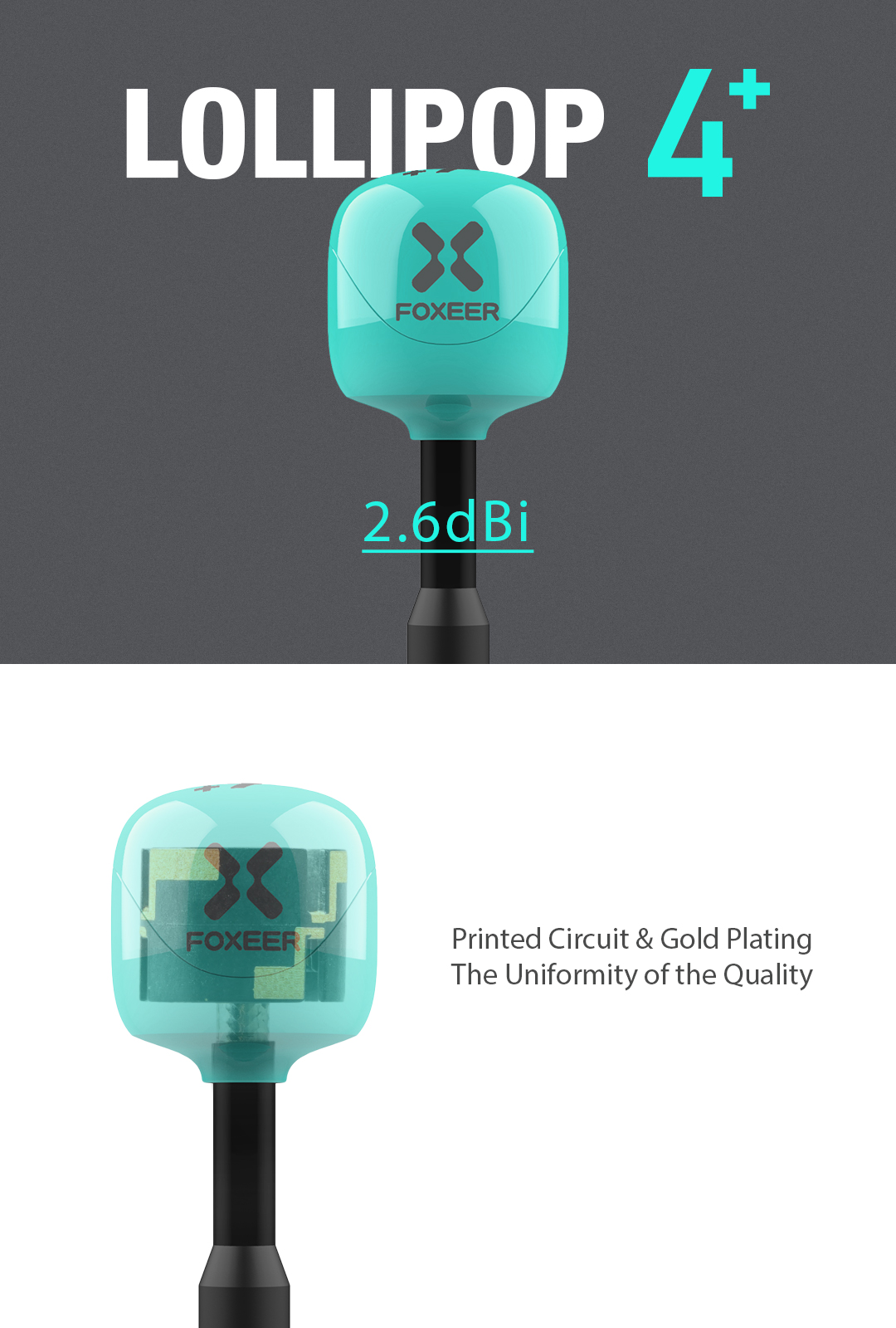

Gain	2.6dBi
Axial Ratio	Close to 1
Band Width	5.5G~6GHz
Radiation Efficiency	98%

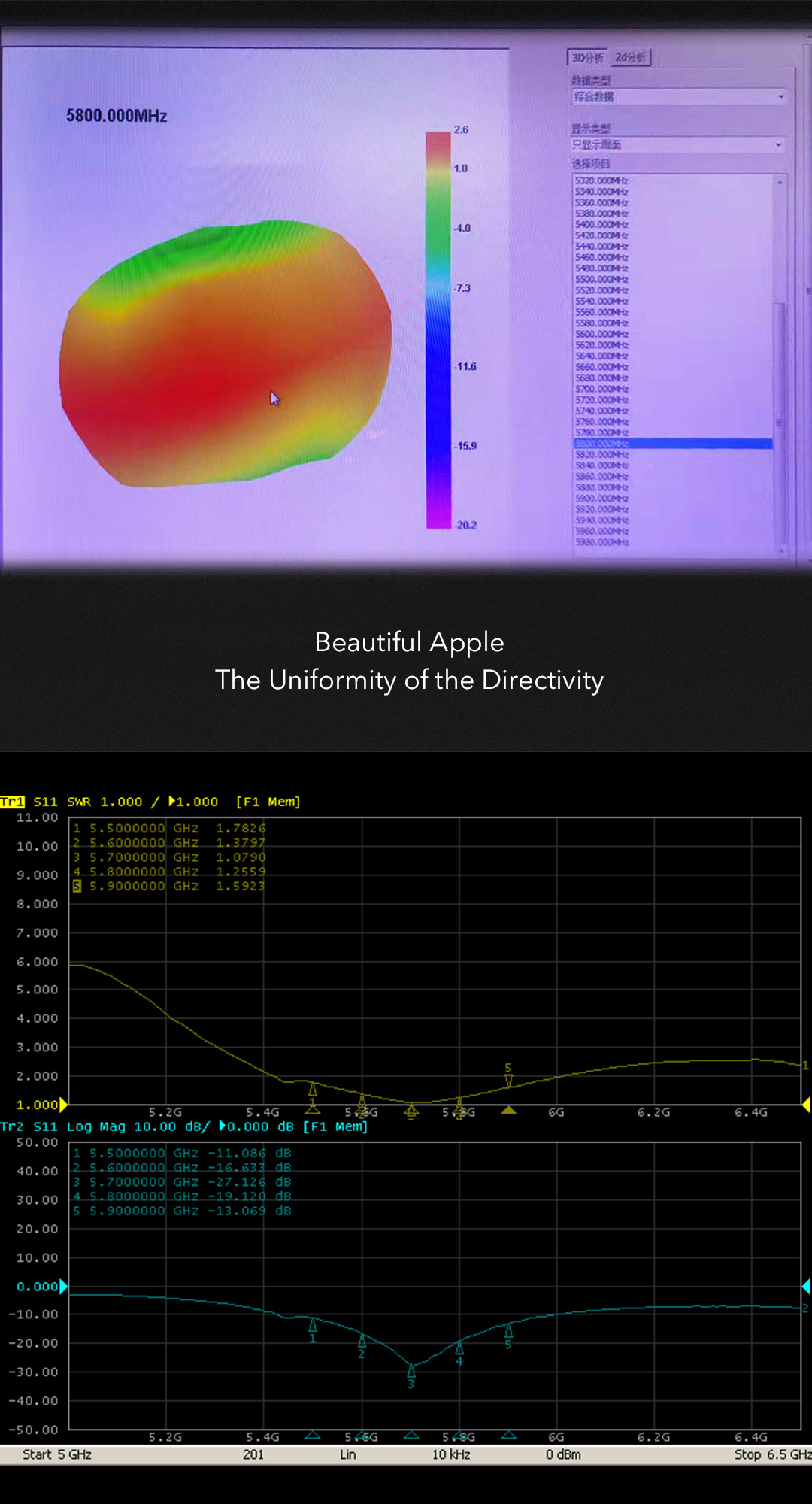

SWR	1.07 at Center Frequency
Polarization	RHCP/LHCP
Case Material	PC+ABS
Weight	SMA/RPSMA: 7.8g
	Straight MMCX: 4.4g
	Angle MMCX: 4.5g
	SMA-10CM: 9.7g
	Angle SMA-15CM: 13.9g
	UFL : 2.8g
	UFL Tube Short: 2.9g
	UFL Tube Long: 3.8g
	Angle MMCX Tube Short: 4.8g
	Angle MMCX Tube Long: 6.8g

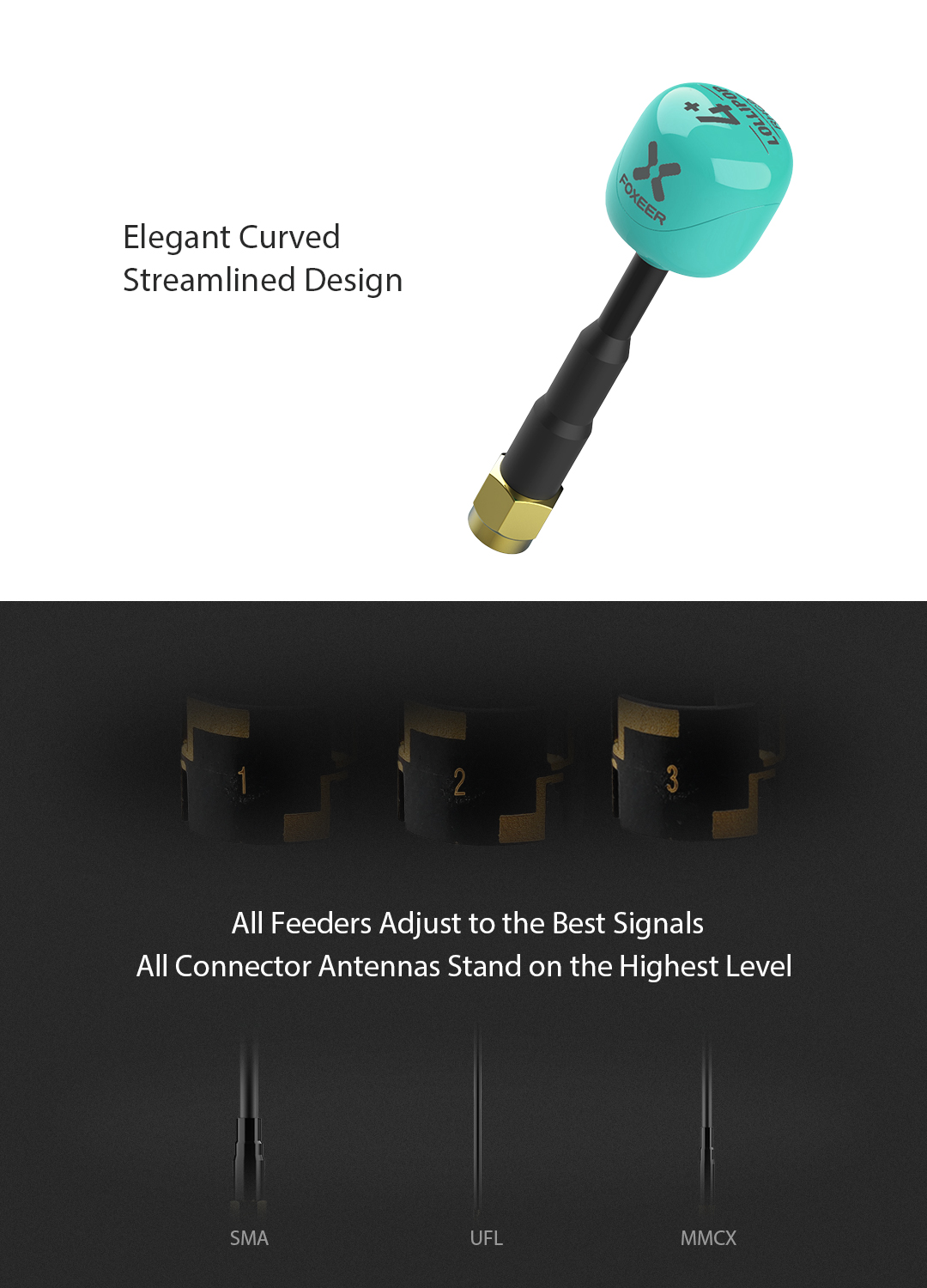

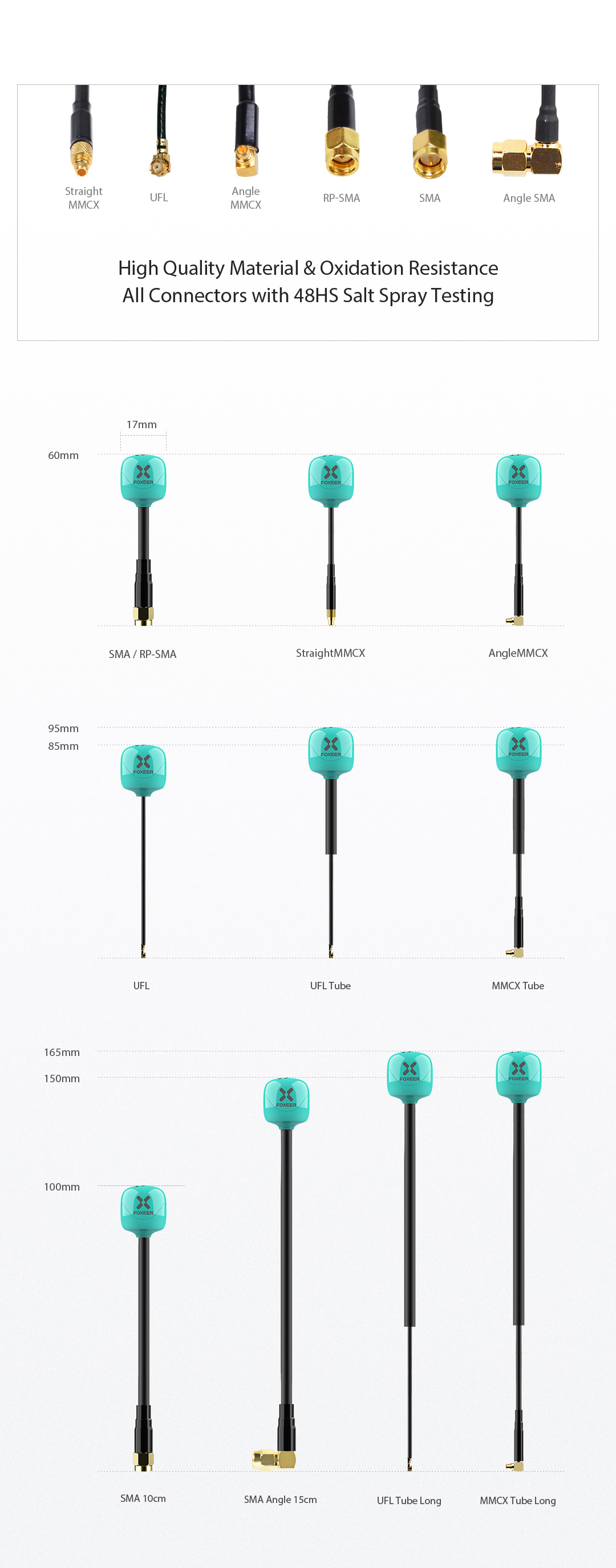

Connector & Length	SMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm

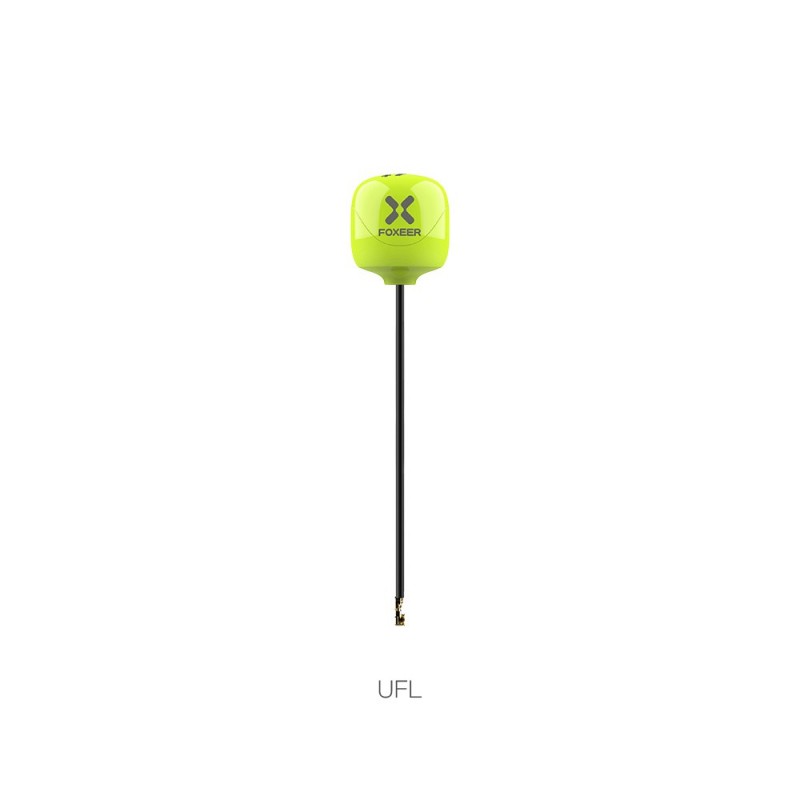

	UFL: Φ11*85mm
	UFL Tube Short/ Angle MMCX Tube Short: Φ11*95mm
	SMA-10CM: Φ11*100mm

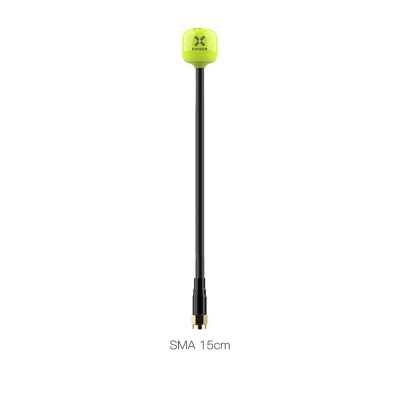

	SMA 15CM Angle: Φ11*150mm

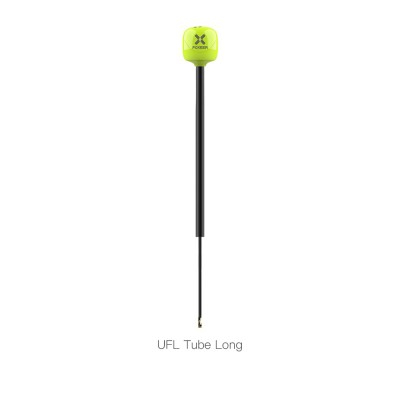

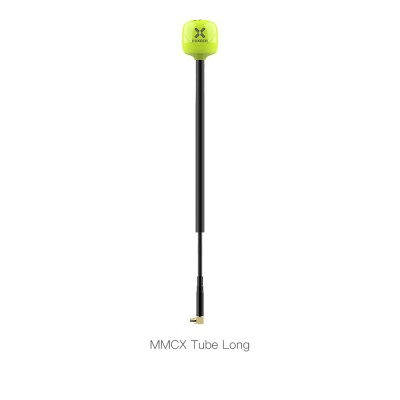

	UFL Tube Long/ Angle MMCX Tube Long: Φ11*165mm
