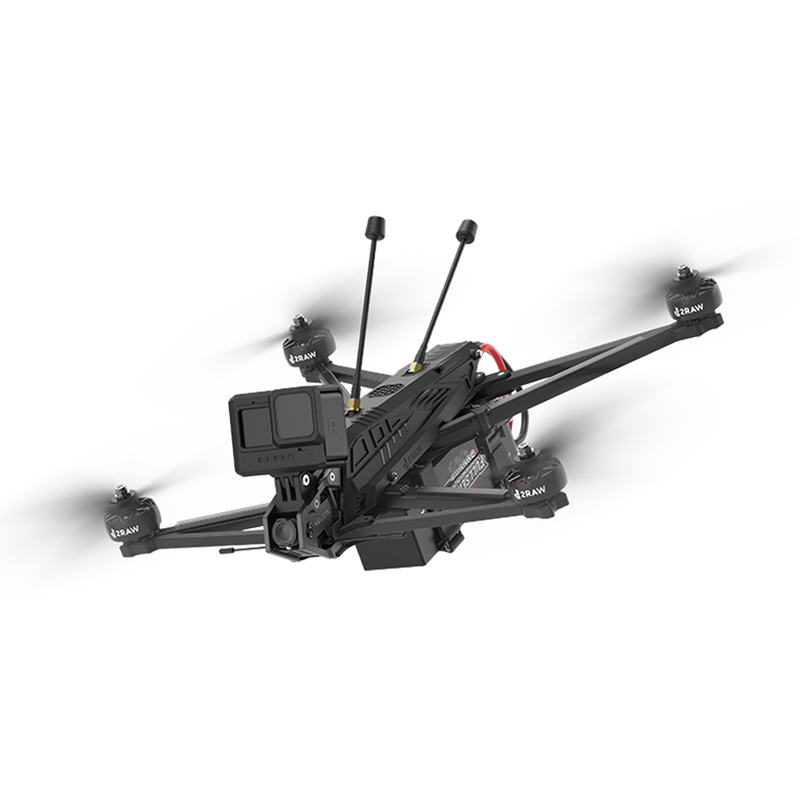

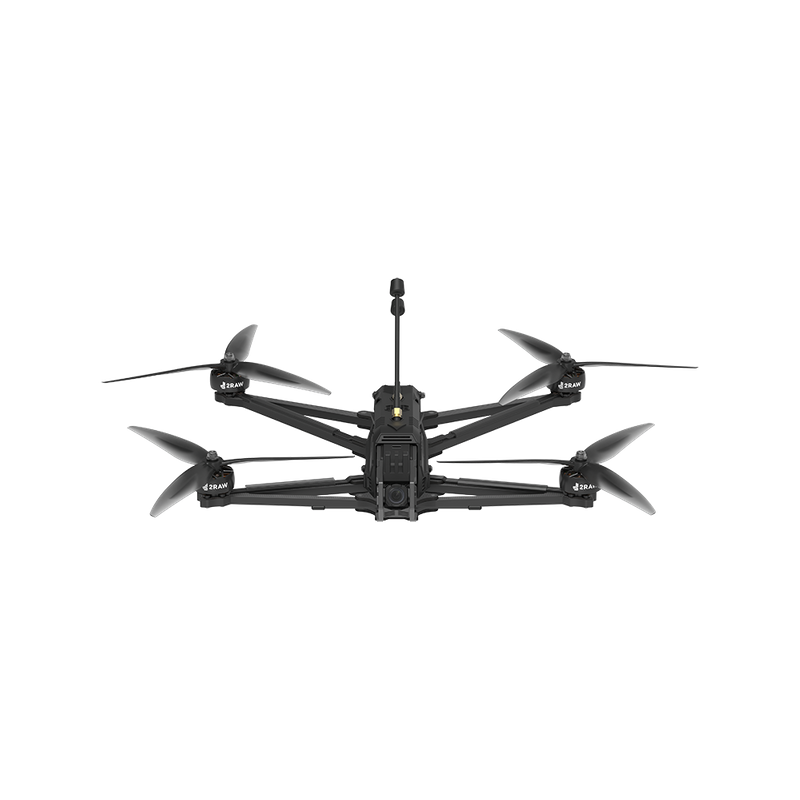

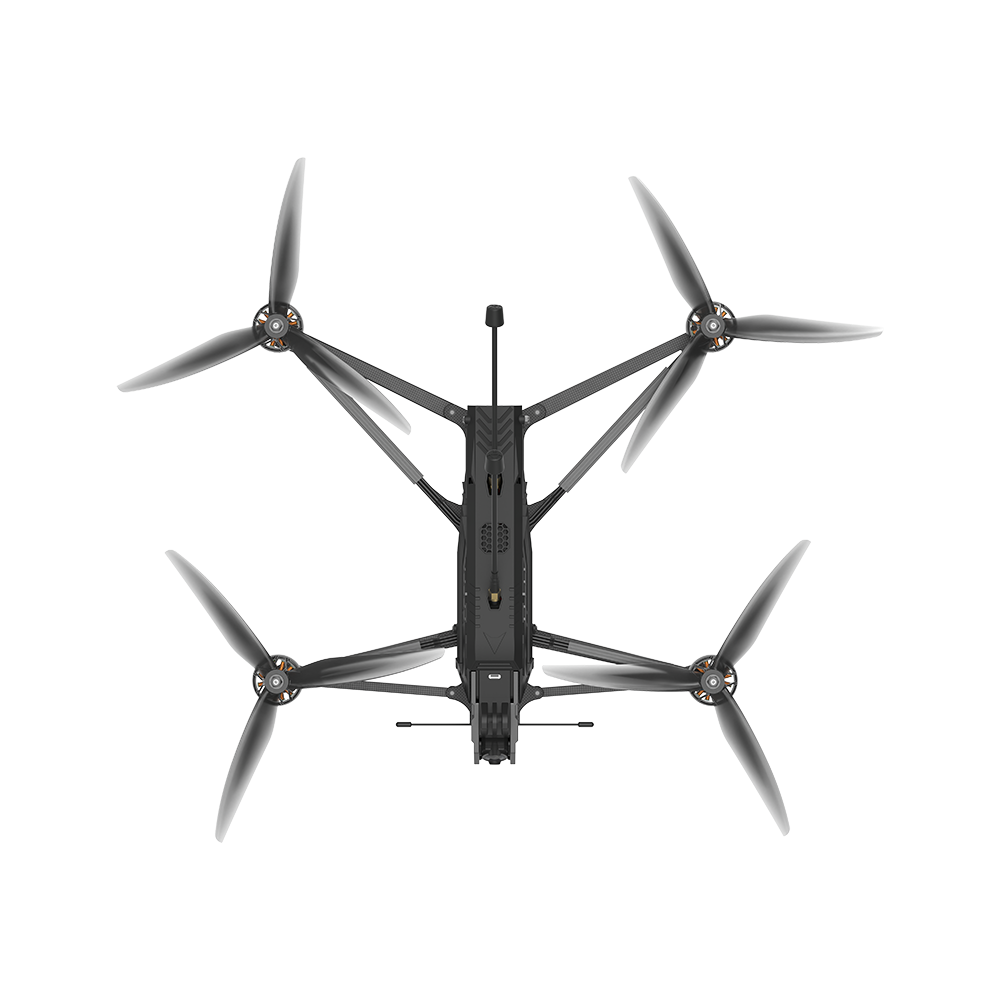

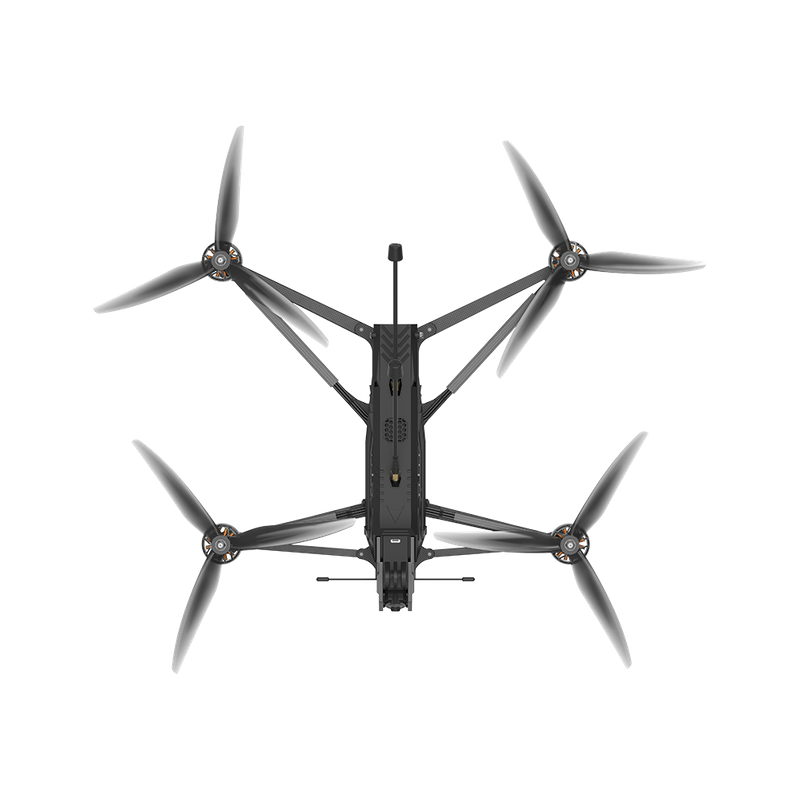

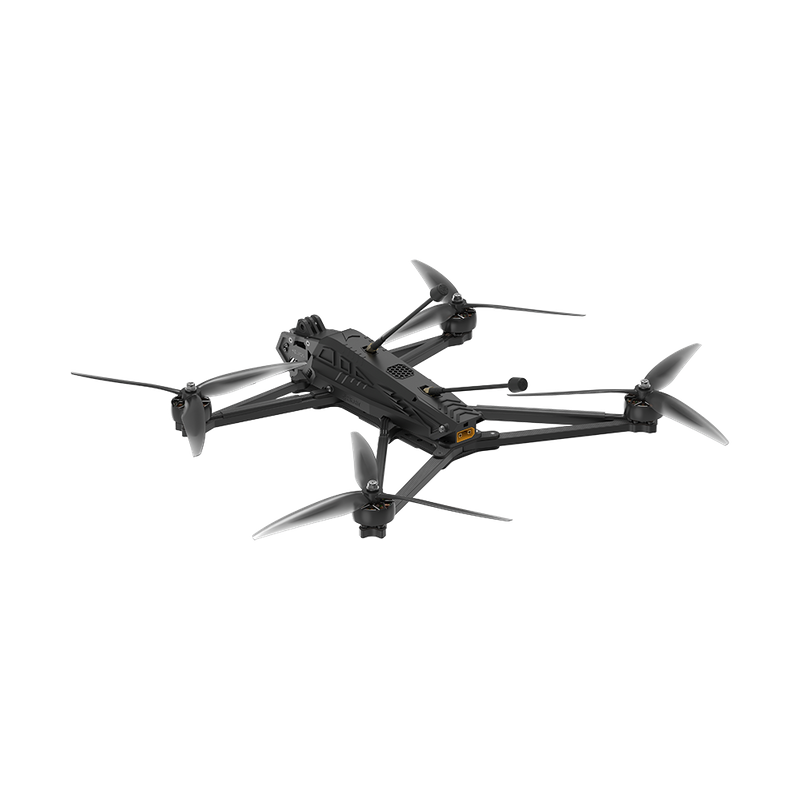

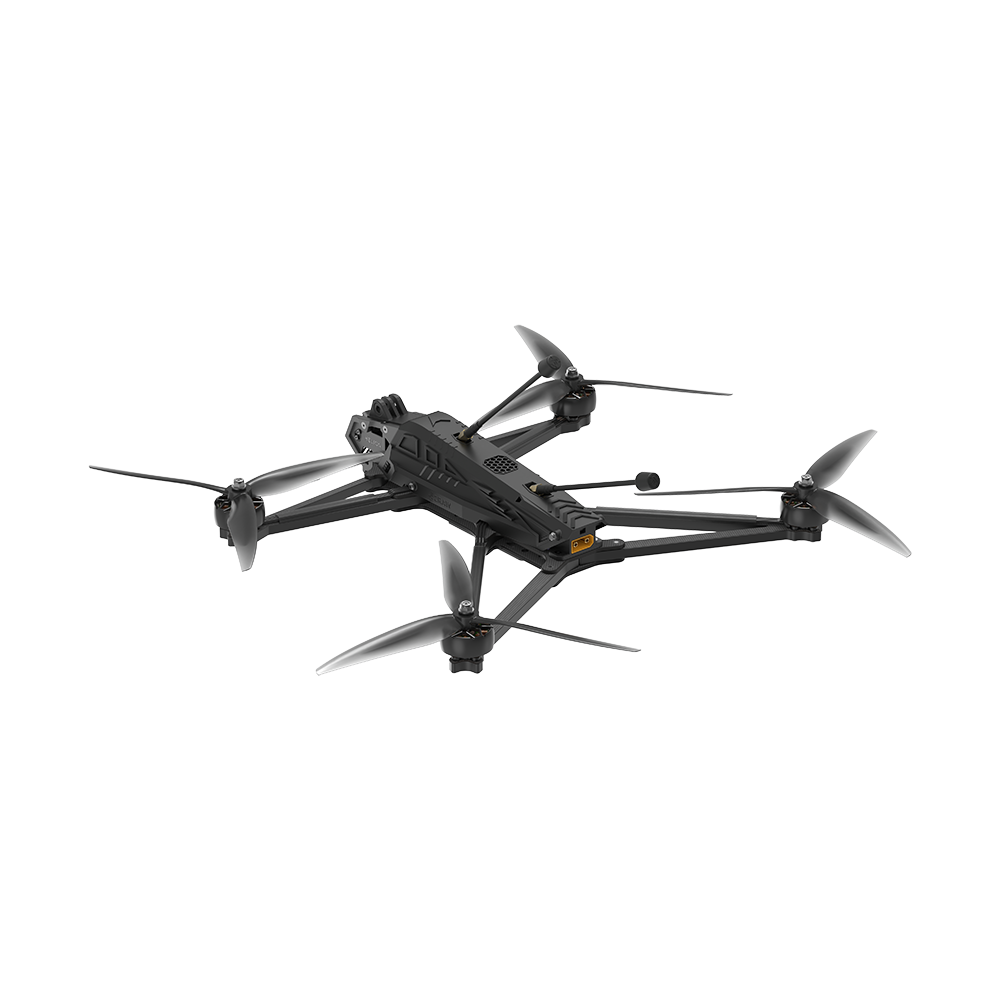

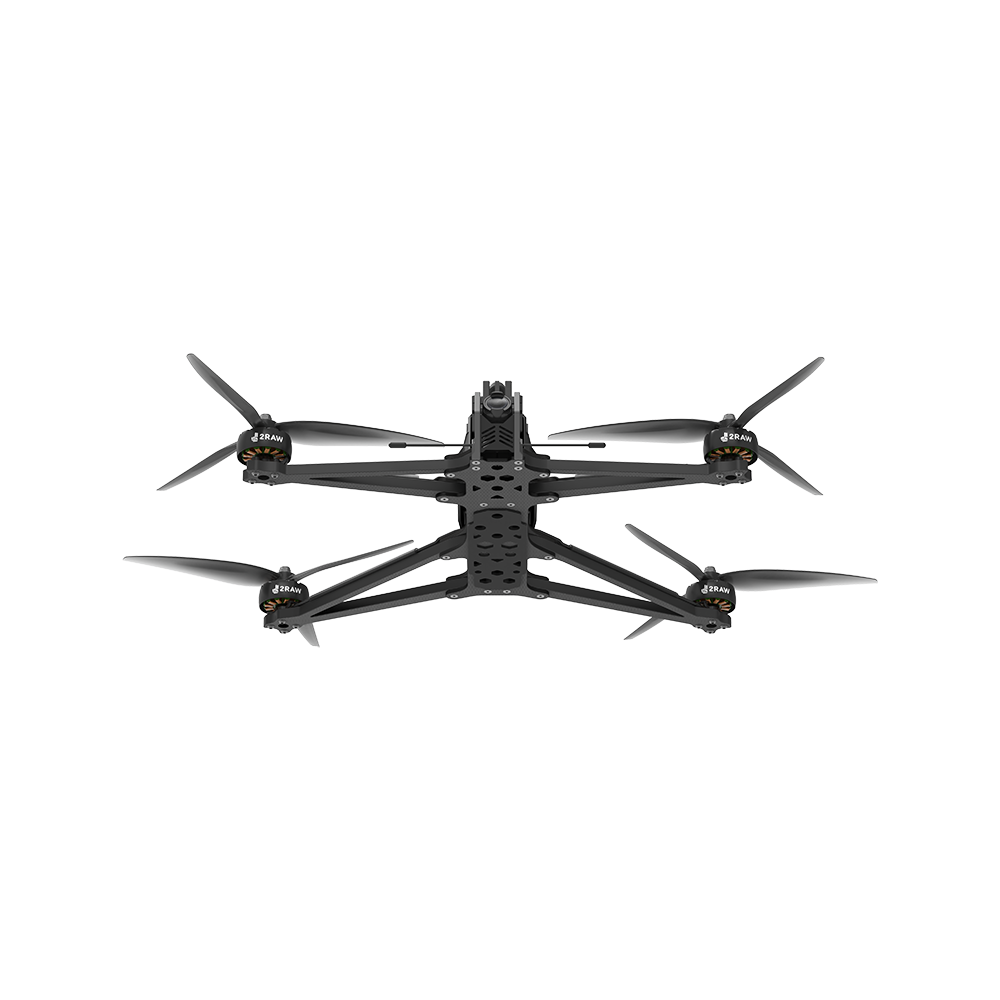

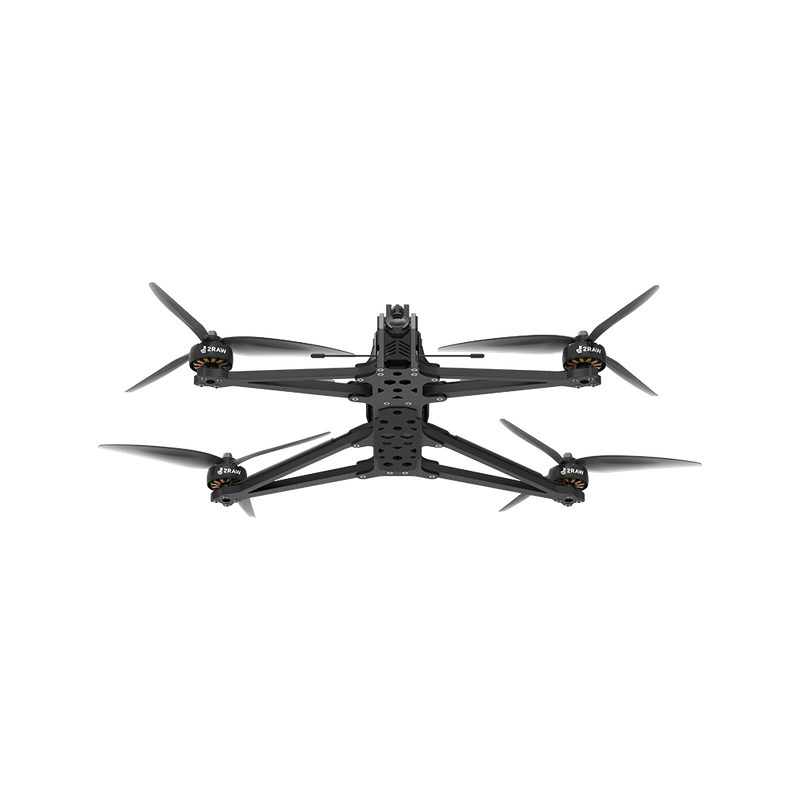

Helion 10 O3 6S HD

Product Name: Helion10 O3 6S HD

FC: BLITZ F7 Flight Controller

ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

Video Transmission: DJI O3 Air Unit

Geometry: A-Frame

Frame: 418mm wheelbase

Motor: XING2 3110 900KV motors

Prop: GEMFAN 1050 propellers

Weight: 950±20g

Takeoff Weight: Approx.1846±5g (With 6S 8000mAh)

Dimensions (L×W×H)：324x264x63mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 26mins with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Liion battery

Max Cruising Time: Approx. 23mins with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Liion battery

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O3 Air Unit

Communication Bandwidth: Max 40 MHz

FOV (single screen): 155°

Communication Frequency：2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)

End-to-End Latency

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.

810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.

1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate: 50 Mbps

Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)

Operating Temperature Range: -10º to 40º C (14° to 104° F)

Power Input: 7.4-26.4 V

Audio Transmission: N/A

1 x Helion 10 6S HD

2 x Battery pad

2 x GEMFAN 1050 propellers(Pairs)

2 x Battery strap

1 x Screw bag

1 x Amass XT90 to XT60 H Adapter Cable
