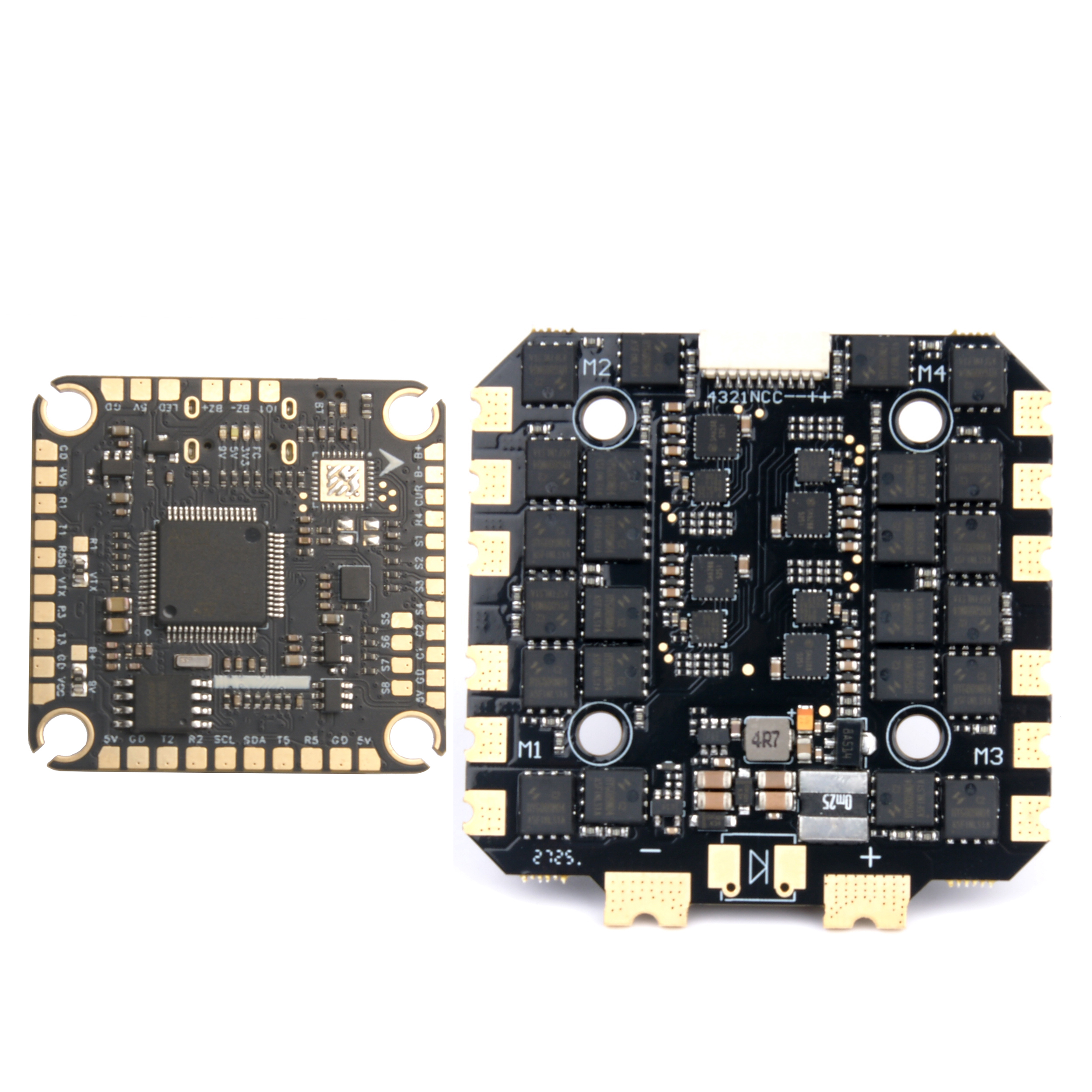

F722 V3 80A 8S FC ESC Flight Controller Stack for Drone Fpv

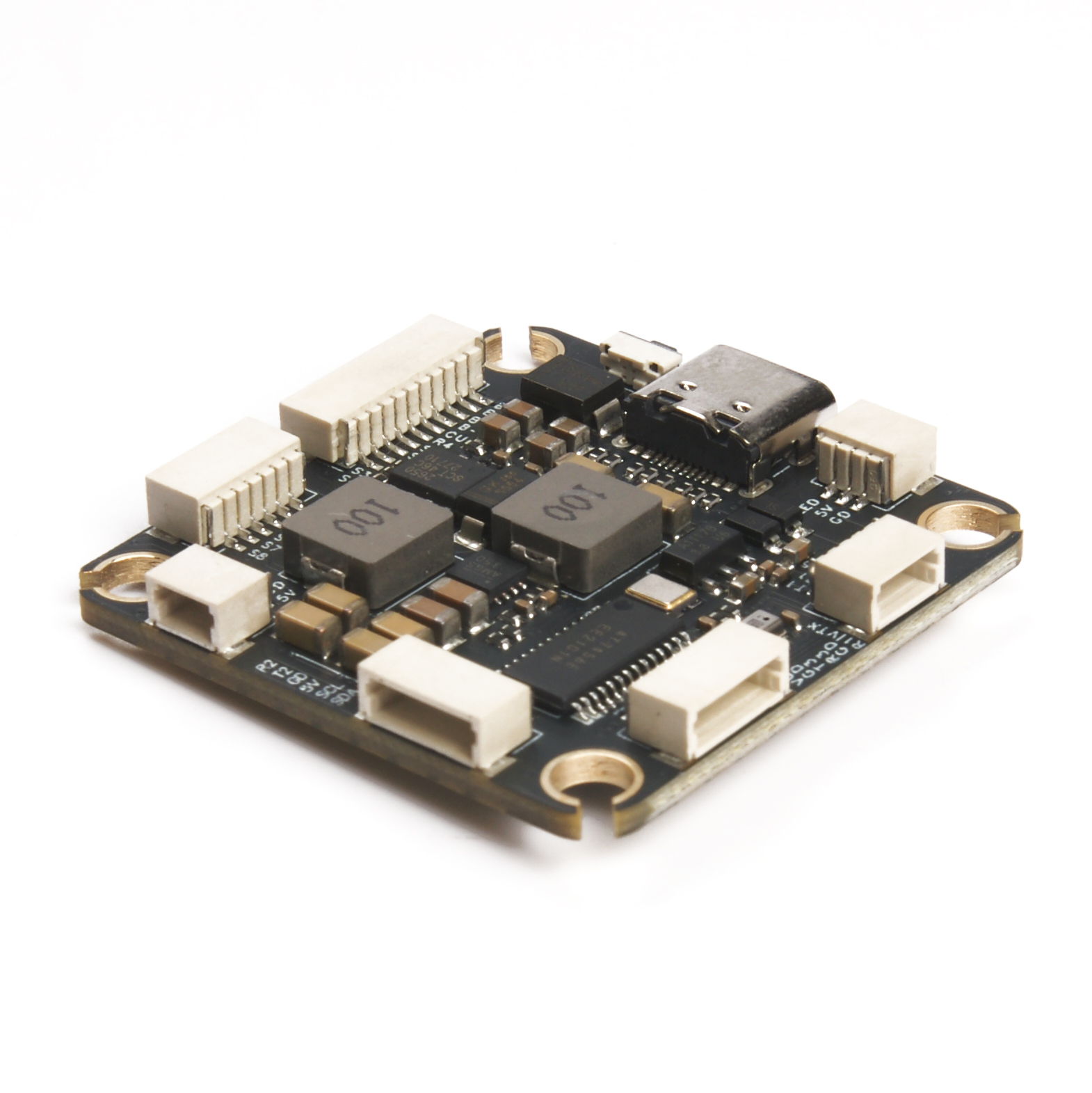

F722 Flight Controller:

Main Controller: STM32F722

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

DJI Air Unit: Supports wire bonding or 6-pin direct connection

Black Box: Built-in 16M

Ammeter Input: Supported

BetaFlight Camera Parameter Adjustment Pads: Supported (3-pin socket direct connection or front pad)

Input Voltage: 4S-8S Lithium Battery

Output Power: 5V/2.5A, 9V/3A

Motor Output: 8ch

General Serial Port: 5ch

Receiver Protocol: ELRS/CRSF/S.BUS/Futabayfysky/TBs Crossfre/DSMX

LED Strip: Supported

Buzzer Pads: Supported, BZ+, BZ- connect to 5V passive buzzer

BOOT Button: Supported. Press and hold the BOOT button while inserting the USB or powering on the device to enter DFU mode for flashing firmware.

Firmware Name: AOCODARCF722V2

Mounting Hole: 30.5x30.5mm (4mm diameter)

Dimensions: 37*37mm

Weight: 9.4g

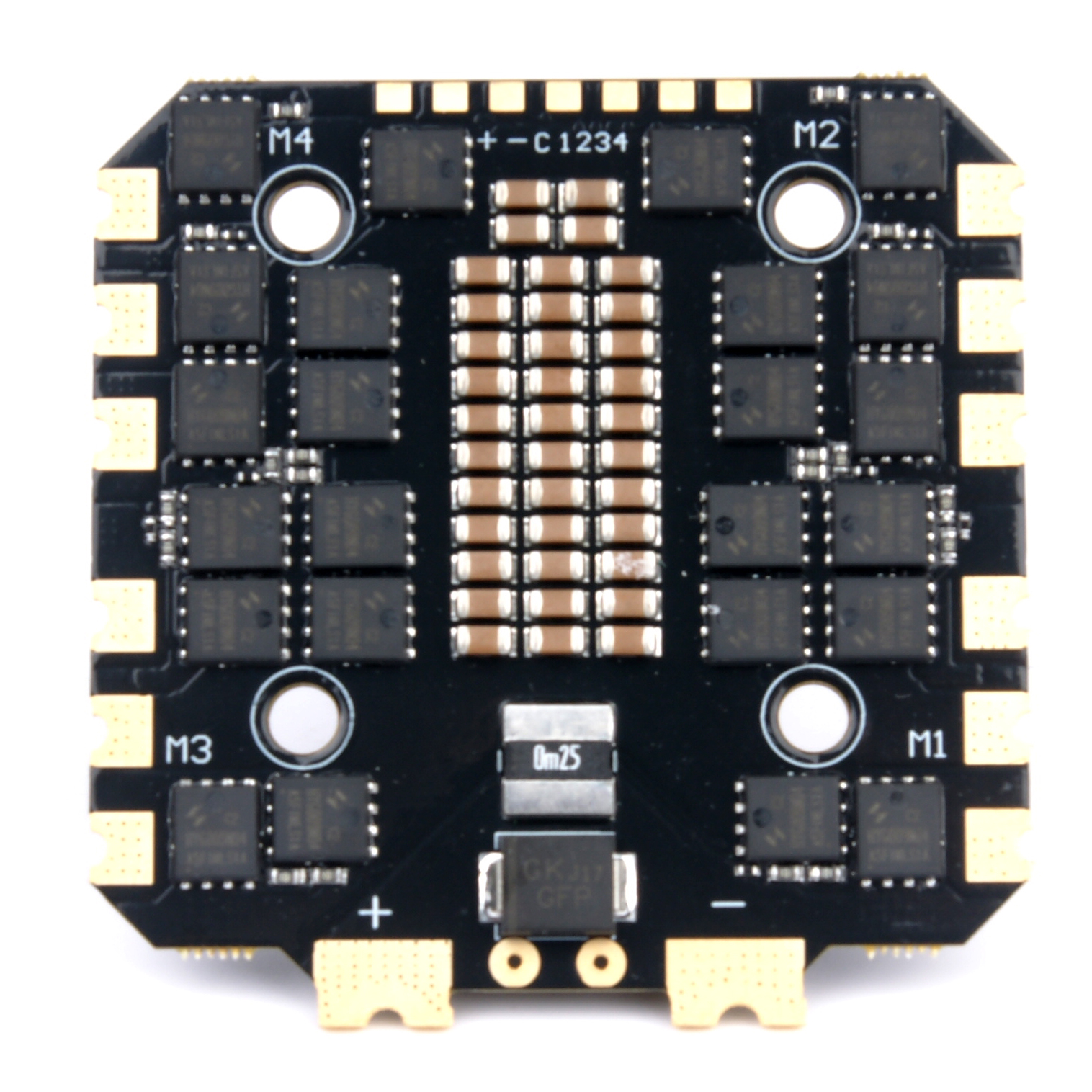

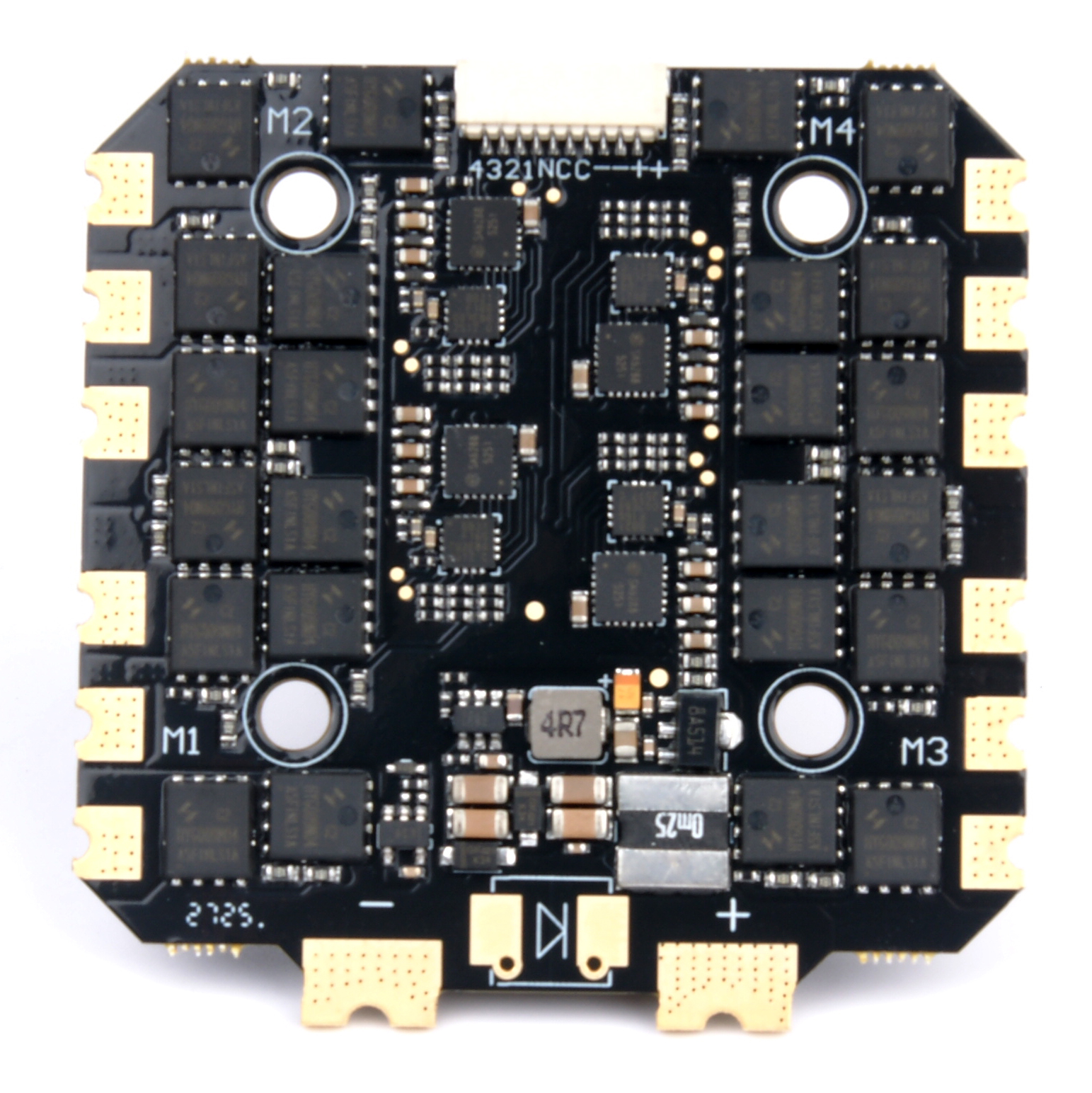

80A 8S ESC:

Firmware: Q_H_40_24_v0.19.2.hex

Wireless parameter tuning: Not supported; all parameters can be tuned via data cable connection to Betaflight.

Continuous current: 80A*4

Maximum current: 90A

Electronic speed control and telemetry: Not supported

TVS protection diode: Yes

External capacitor: 50V 2200uf high-frequency low-impedance capacitor

Temperature protection: Supported

Input voltage: 4S-8S lithium-ion battery

Output voltage: VBAT

Ammeter: Supported

Mounting hole: M4

Mounting hole size: 30.5x30.5mm (4mm diameter)

Dimensions: 57*56mm

Weight: 28g

Packing list:

F405 FC x 1

80A ESC x 1

8PIN SH1.0 connection cable x1

XT90power line x 1

M3 x 8 shock-absorbing balls x 8

Nut x 8

M3x25mm Metal Screw x 4

50V 2200uf  Solid stateelectrolytic capacitor x 1
