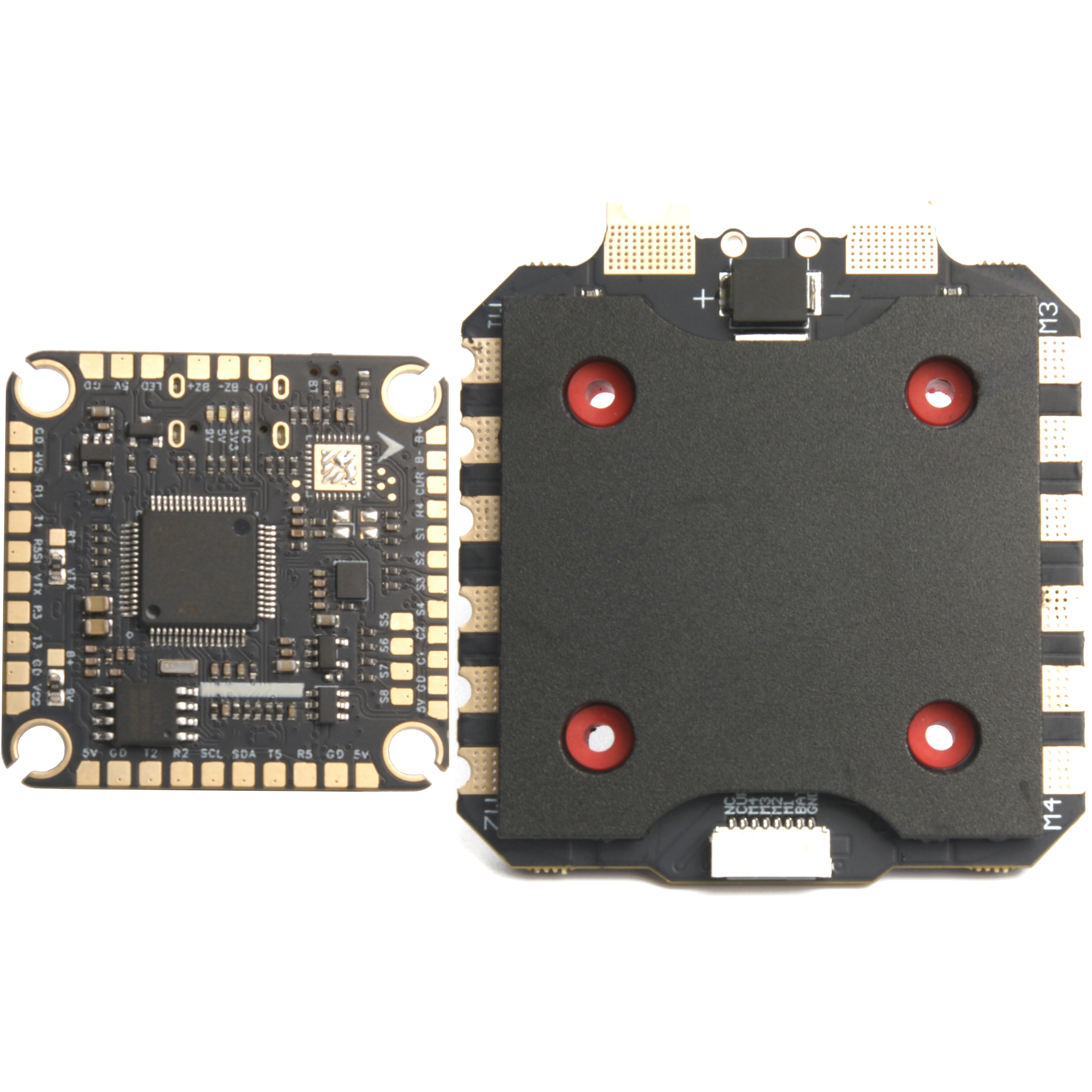

F722 100A FC ESC Flight Stack Fly Tower for Drone Fpv

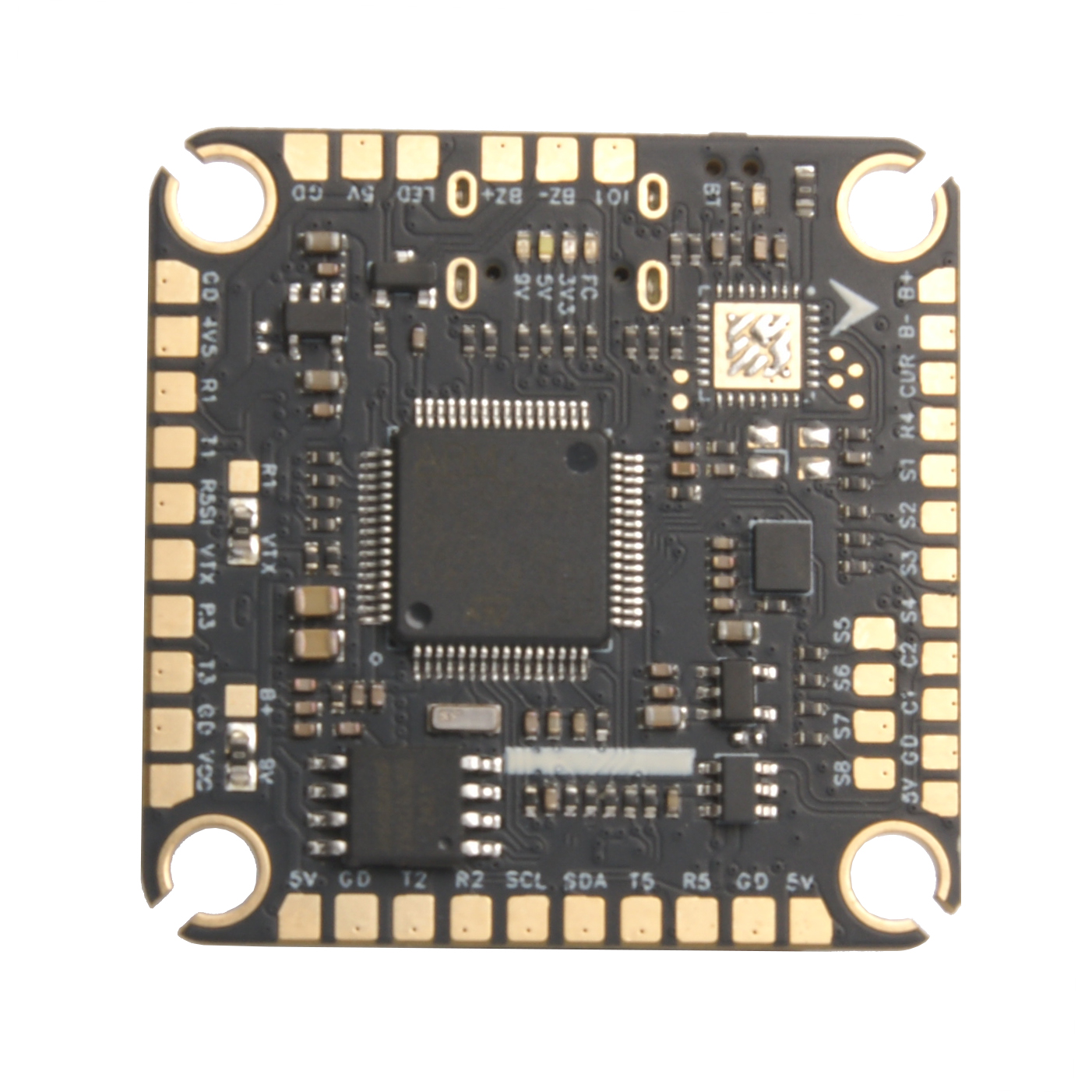

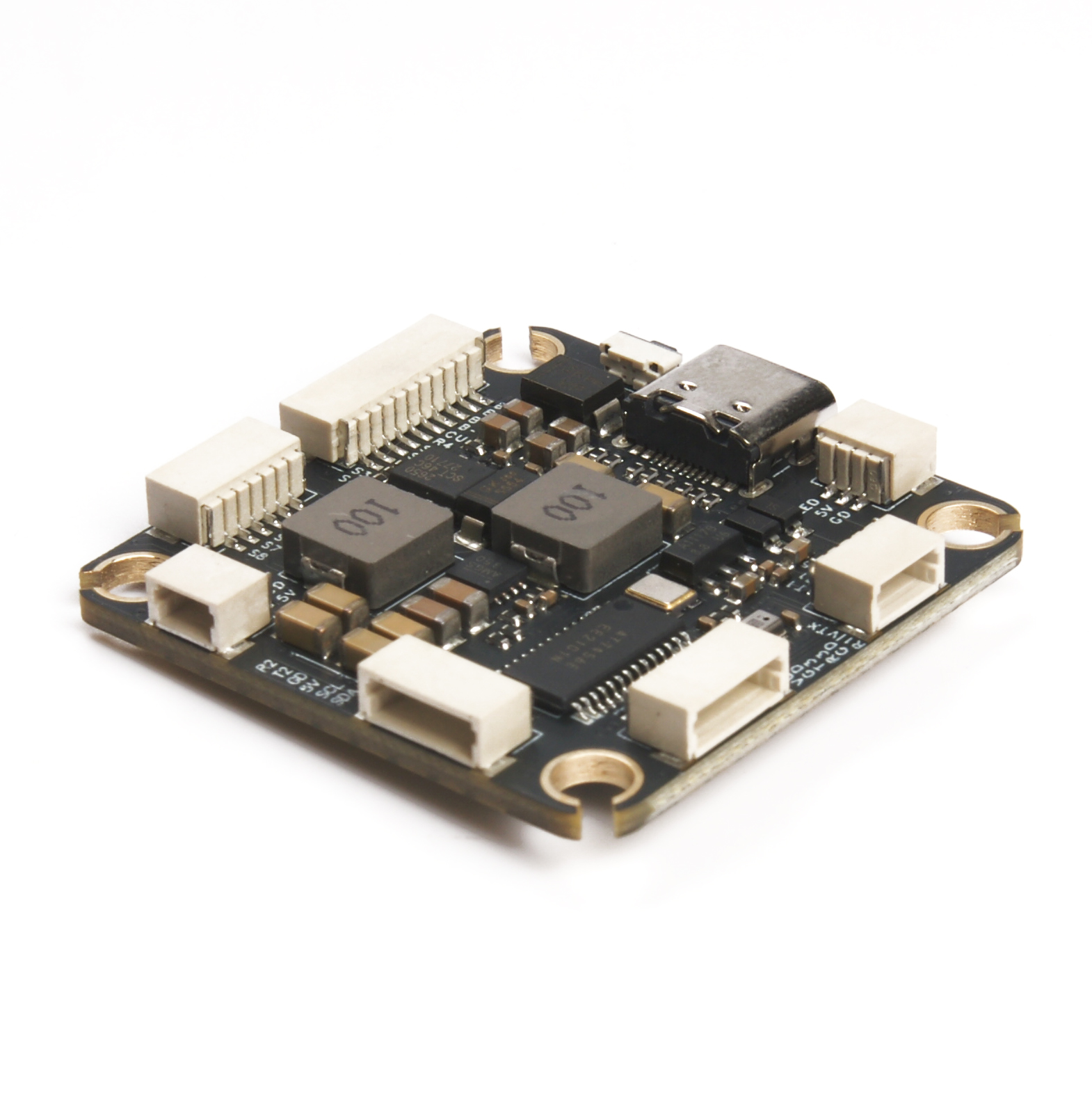

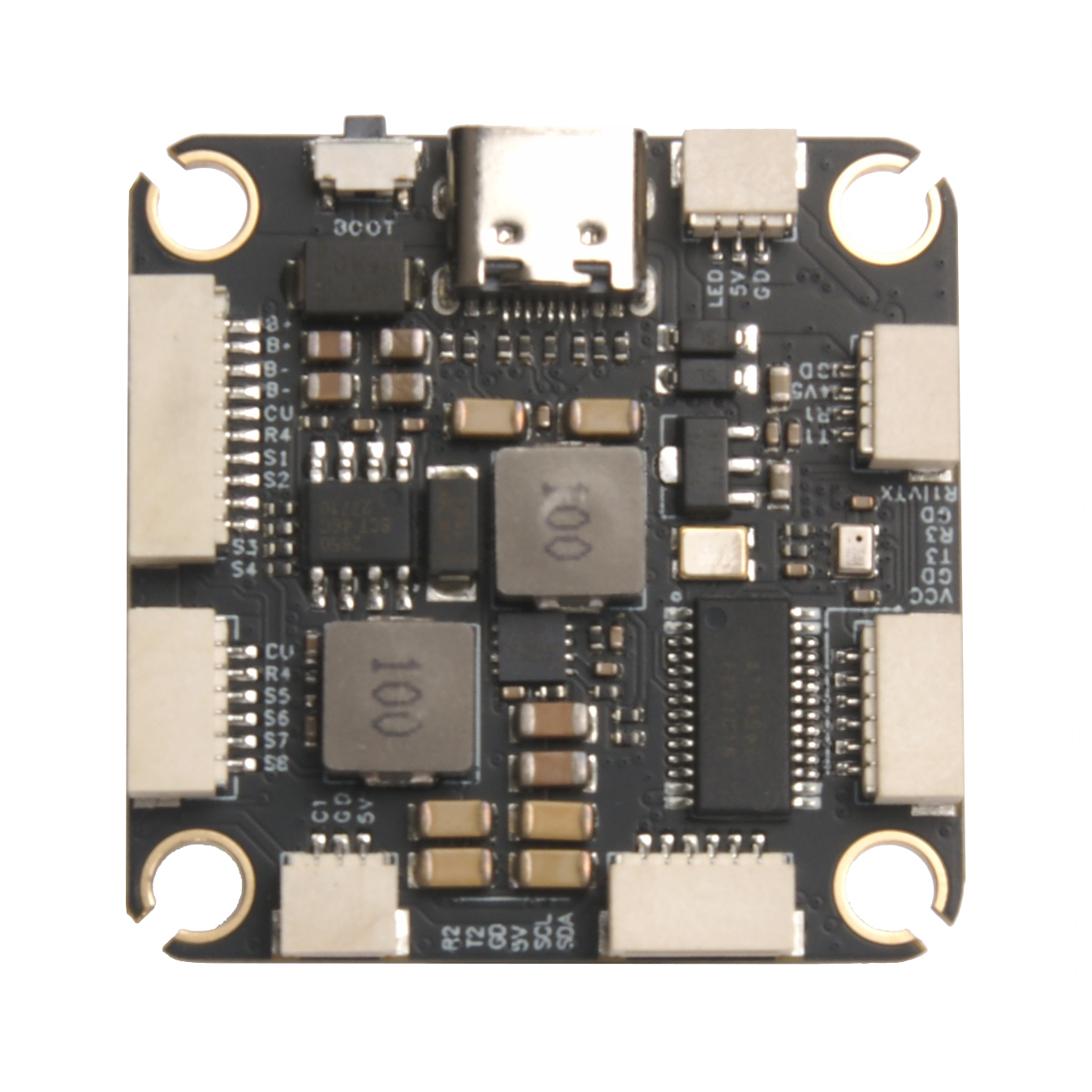

FC:

Main Controller: STM32F722

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

DJI Air Unit: Supports wire bonding or 6-pin direct connection

Black Box: Built-in 16M

Ammeter Input: Supported

BetaFlight Camera Parameter Adjustment Pads: Supported (3-pin socket direct connection or front pad)

Input Voltage: 4S-8S Lithium Battery

Output Power: 5V/2.5A, 9V/3A

Motor Output: 8ch

General Serial Port: 5ch

Receiver Protocol: ELRS/CRSF/S.BUS/Futabayfysky/TBs Crossfre/DSMX

LED Strip: Supported

Buzzer Pads: Supported, BZ+, BZ- connect to 5V passive buzzer

BOOT Button: Supported. Press and hold the BOOT button while inserting the USB or powering on the device to enter DFU mode for flashing firmware.

Firmware Name: AOCODARCF722V2

Mounting Hole: 30.5x30.5mm (4mm diameter)

Dimensions: 37*37mm

Weight: 9.4g

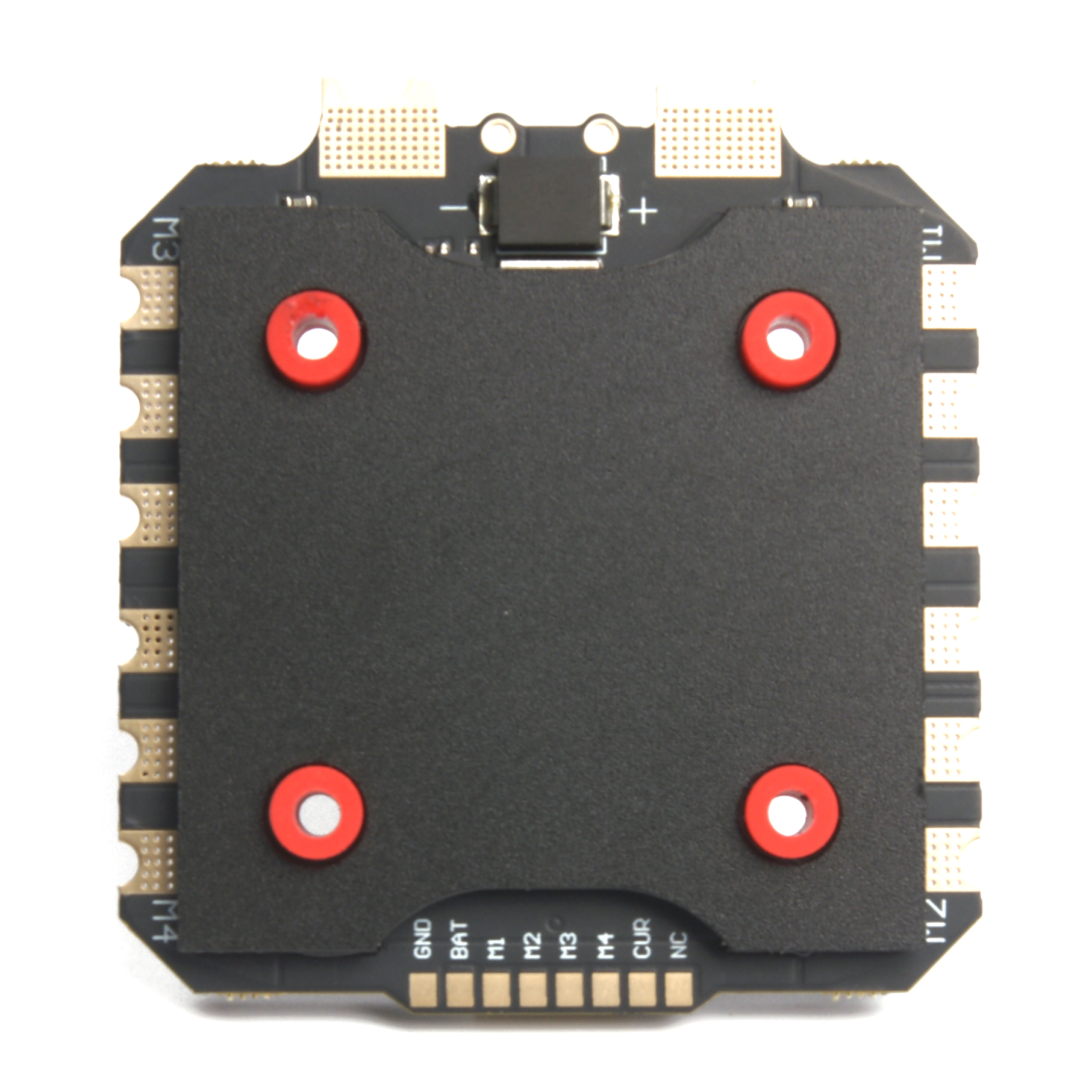

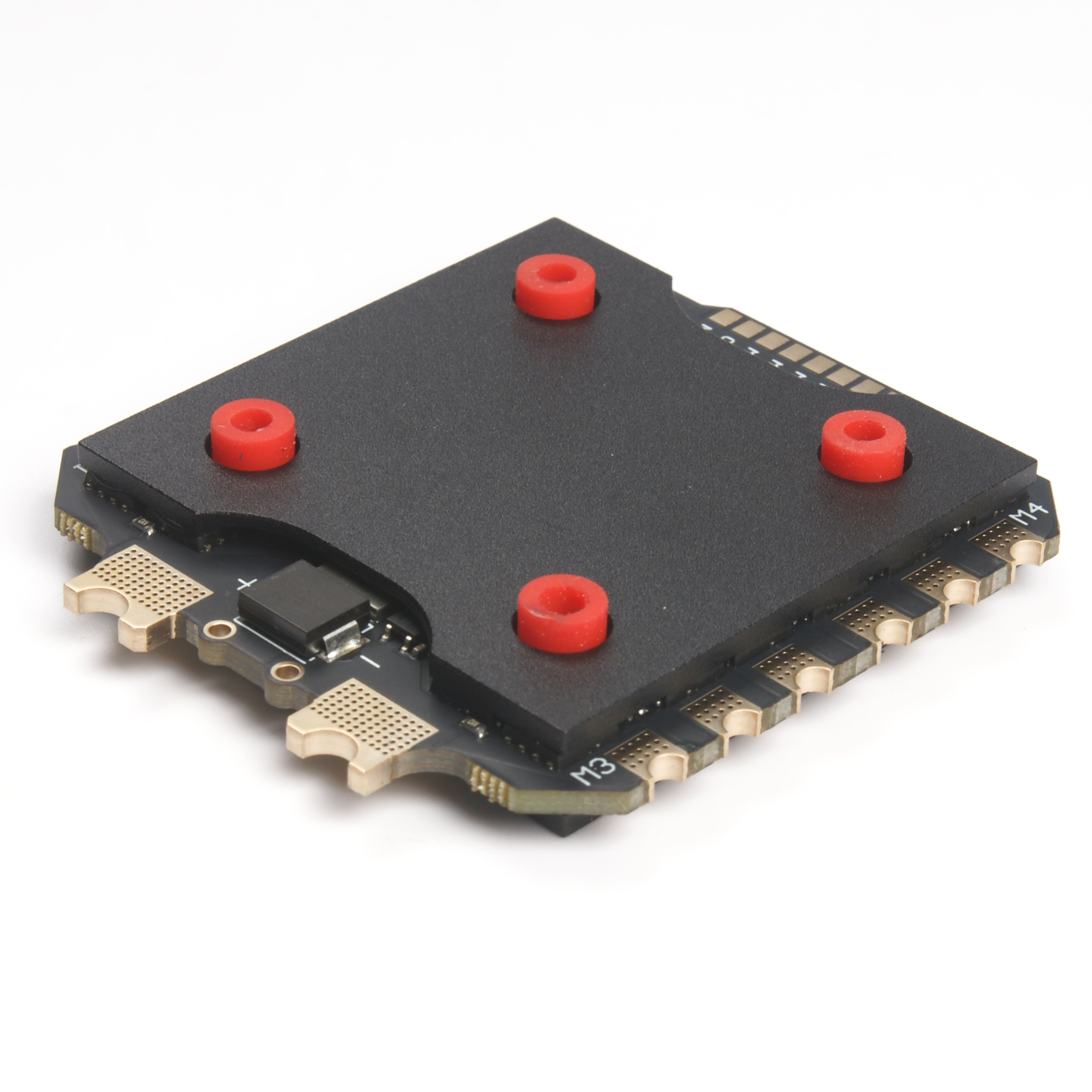

ESC:

Firmware: B_X_30_REV16_7

Continuous Current: 100A*4

Maximum Current: 105A (5s)

Supported Protocols: Dshot 150/300/600

TVS Protection Diode: YES

External Capacitor: 50V 2200uf High-Frequency Low-Impedance Capacitor

Temperature Protection: Supported

Input Voltage: 3-8S Lipo

Output Voltage: VBAT

Ammeter: Supported (Calibration Value 200)

Mounting Hole: M4

Hole Spacing: 30.5x30.5mm (4mm Hole Diameter)

Dimensions: 56.3*61.1mm

Weight: 29.5g
