SCT F405 V5 60A
SCT

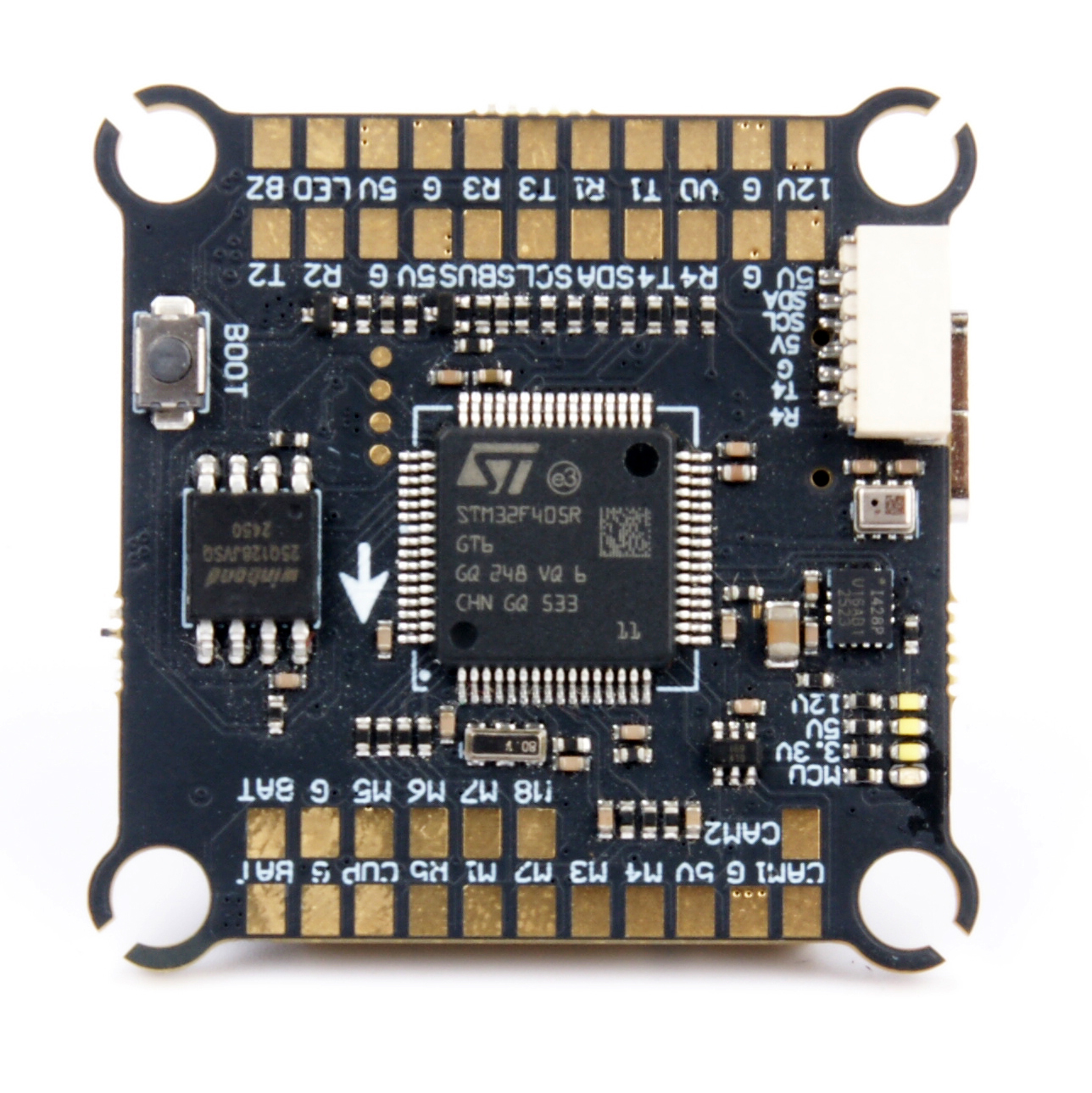

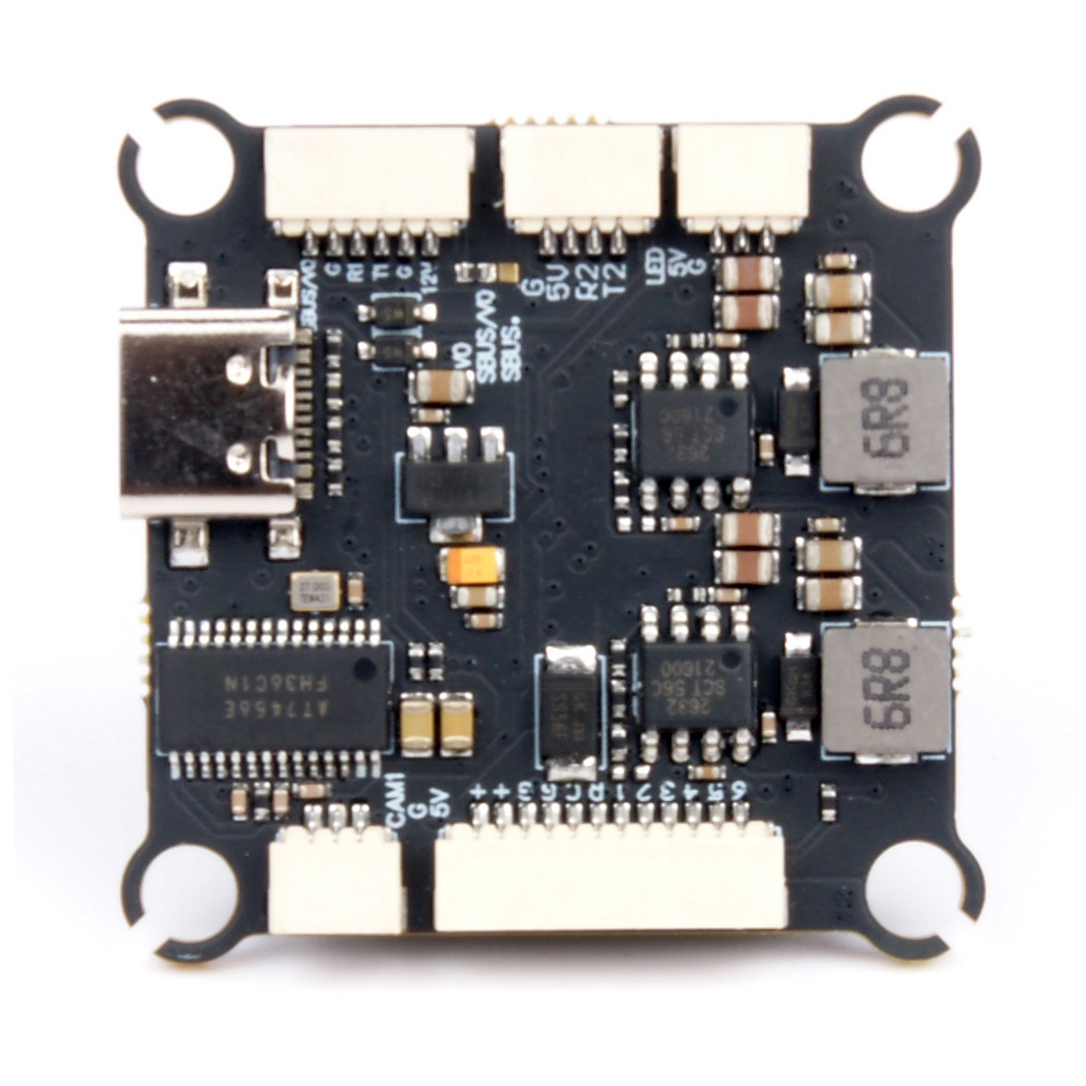

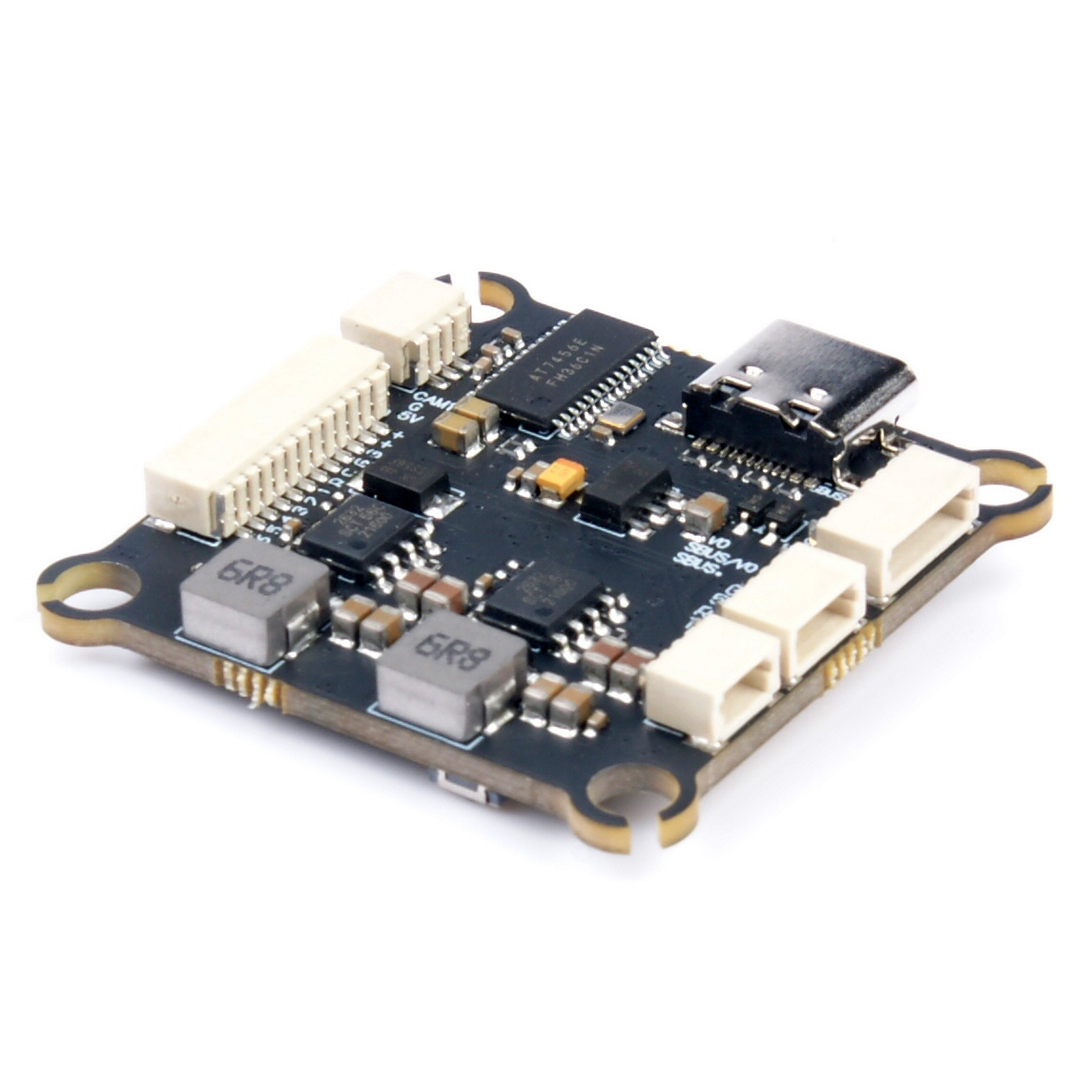

F405 Flight Controller:
Main controller: STM32F405
Gyroscope: ICM42688P
USB interface type: Type-C
Barometer: Built-in, SPA06-003
OSD chip: AT7456E
DJI Air Unit: Supports wire bonding or 6-pin direct connection
GPS connection: 6-pin direct connection or wire bonding
Black box: Built-in 16M
Ammeter input: Supported
BetaFlght camera parameter adjustment pad: Supported (3-pin socket direct connection or front pad)
Input voltage: 4S-8S lithium battery (via the 10-pin interface on the back or the GND and BAT pins in the pad)
5V BEC output: 8 groups of 5V outputs (PCBA has 4 +5V pads + 4 sockets for 5V output), total current output 2A
12V BEC Output: 2 sets of 12V outputs (PCBA has 1 +12V output, and one socket on the board contains a +12V output), total current output 2A
ESC Signals: Front M1-M4, M5-M8 (supports 4-8 axes)
UART Serial: 4 serial ports
Traditional Beteflight LED Pads: Supported, 5V, GND, and LED pads on the PCBA surface
Buzzer Pads: Supported, 5V and BZ connected to the 5V passive terminal for buzzer
Boot Button: Supported, press and hold the BOOT button while inserting the USB or powering on to enter DFU mode for firmware flashing
SmartPort: Supported, any serial port TX can be used
Firmware Target Name: SPEDIXF405
Mounting Hole Dimensions: 30.5x30.5mm
Dimensions: 36*36mm
Weight: 7g

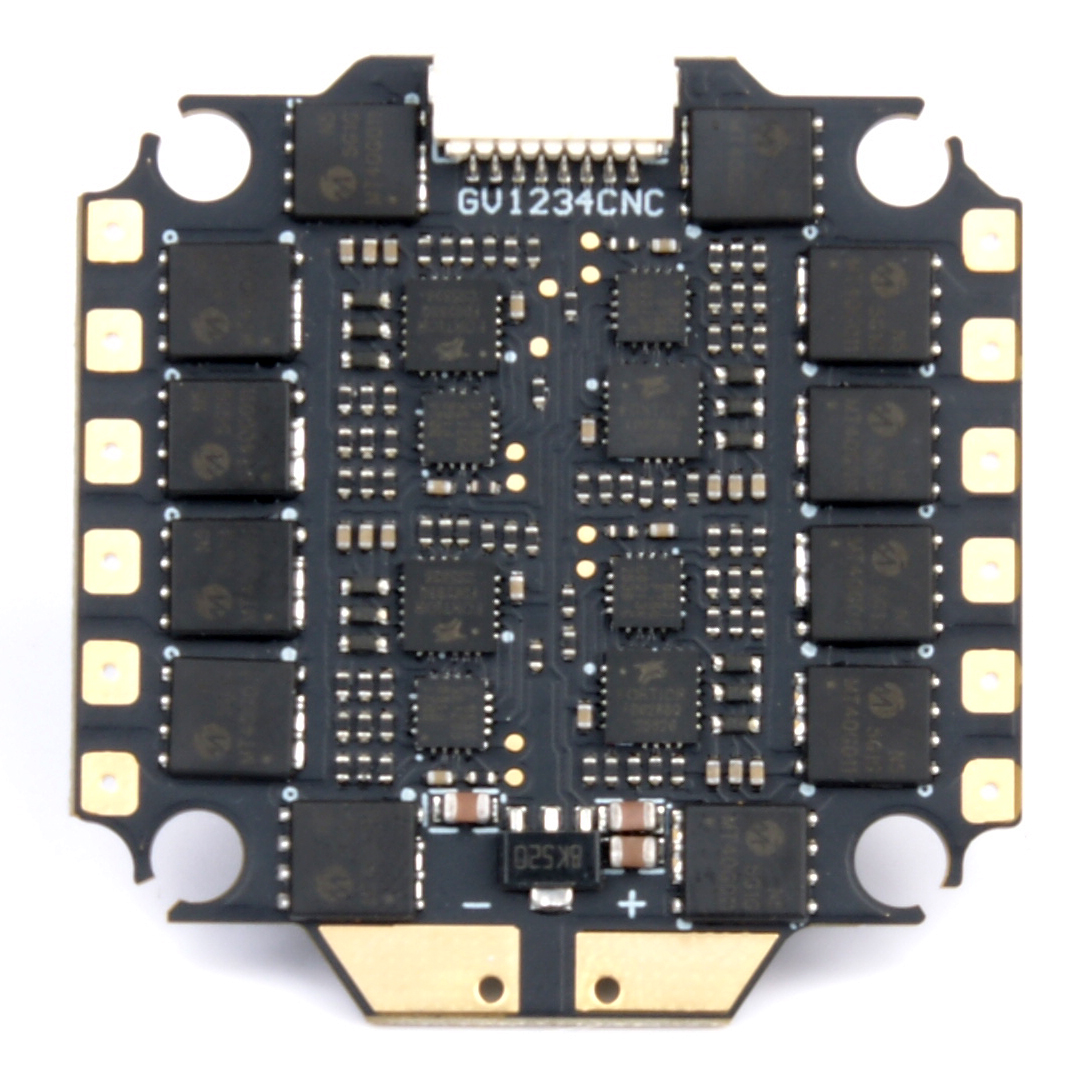

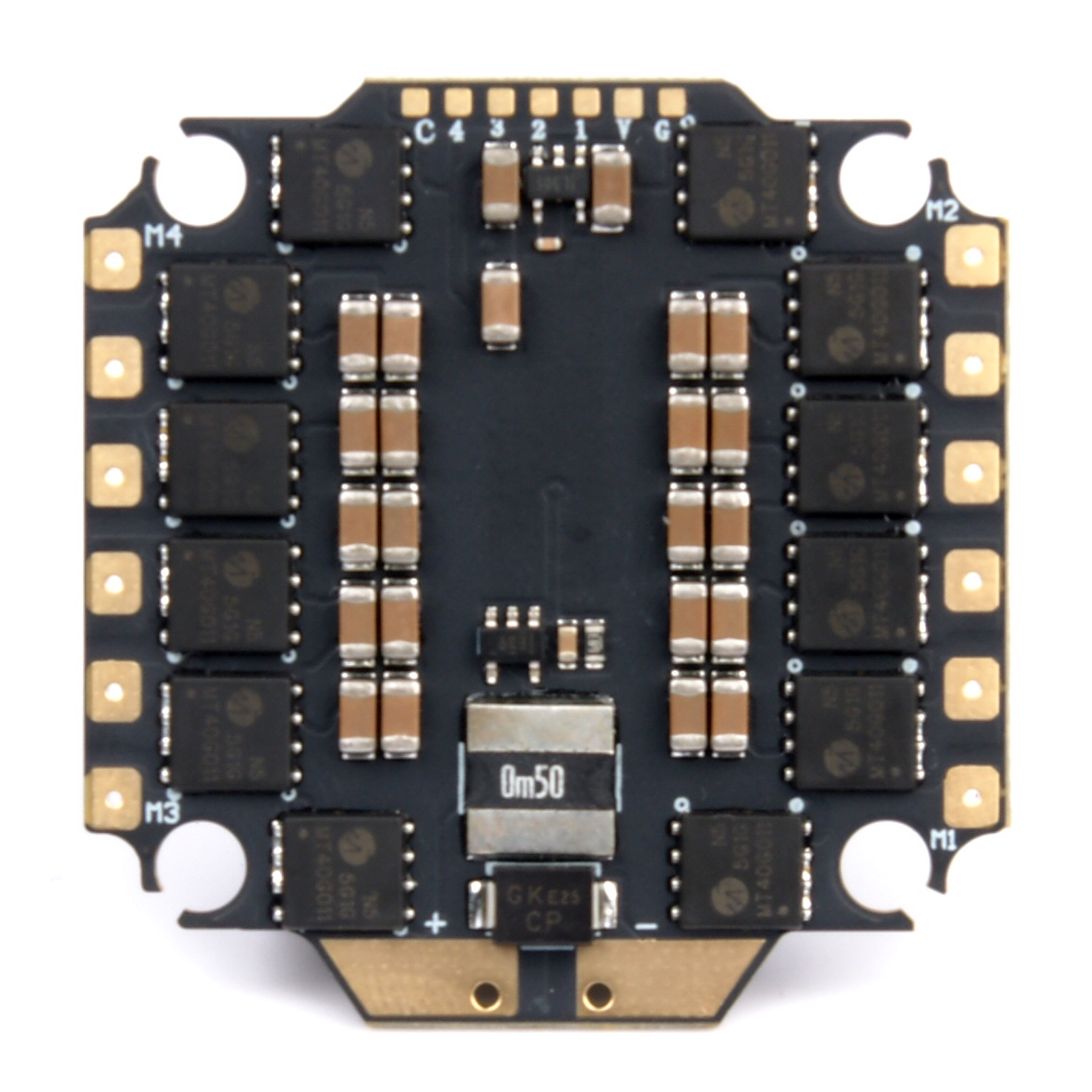

65A ESC:
Firmware: J_H_30_REV16_7
Wireless parameter tuning: Not supported; all parameters can be tuned via data cable connection to Betaflight
Continuous current: 60A*4
Maximum current: 70A (5 seconds)
TVS protection diode: YES
External capacitor: 1000uf high-frequency low-impedance capacitor
ESC/motor protocol: DSHOT300/600
Input voltage: 3S-6S lithium-ion battery
Output voltage: VBAT
Ammeter: Supported
Mounting hole: M4
Mounting hole size: 30.5x30.5mm (4mm diameter)
Dimensions: 42*41mm
Weight: 11.5g
Packing list:
F405 FC x 1
60A ESC x 1
8PIN SH1.0 connection cable x1
XT60power line x 1
M3 x 8 shock-absorbing balls x 8
Nut x 8
M3x25mm Metal Screw x 4
35V 1000uF Solid stateelectrolytic capacitor x 1
