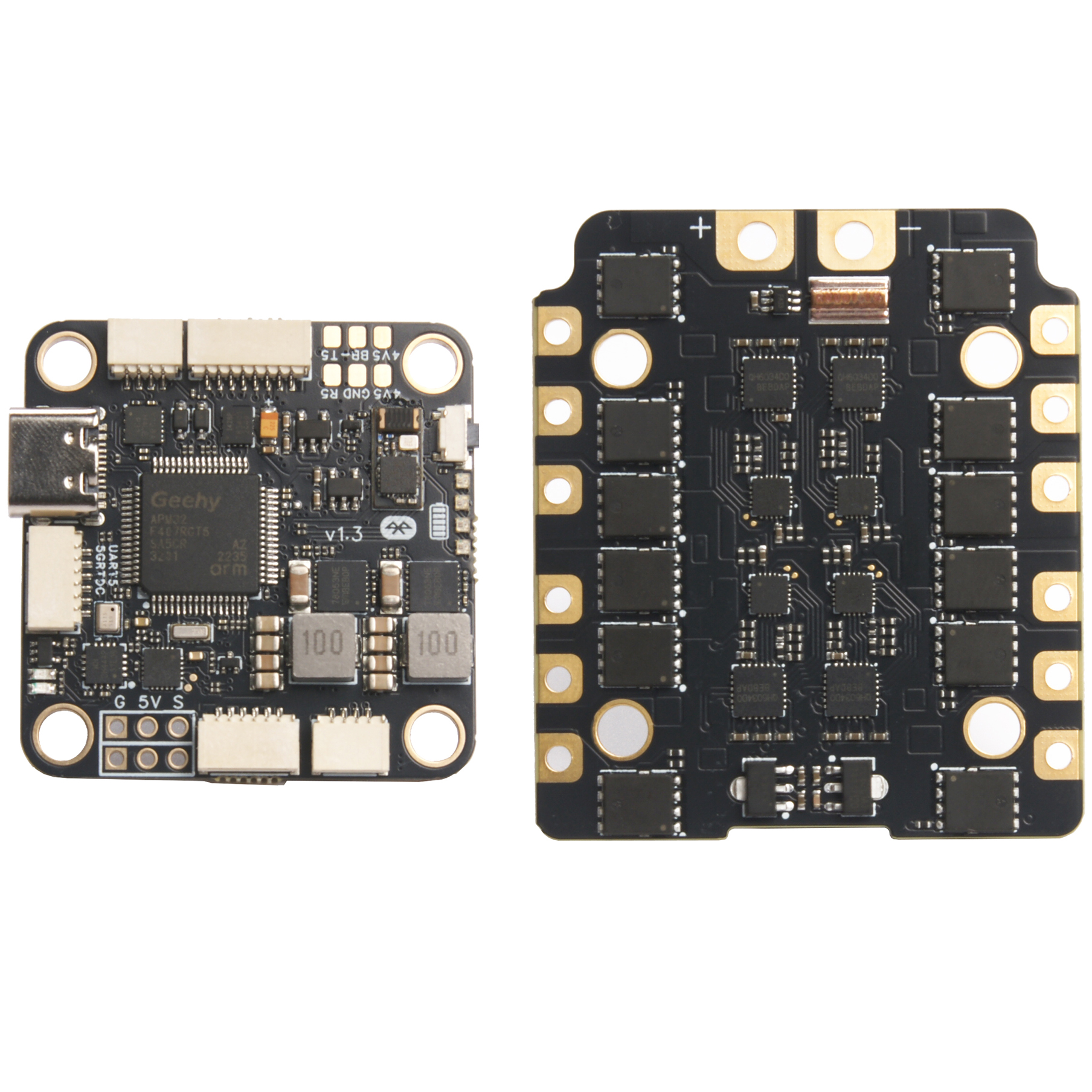

F405 65A FC ESC Flight Stack Fly Tower 30X30mm for Racing Drone Fpv

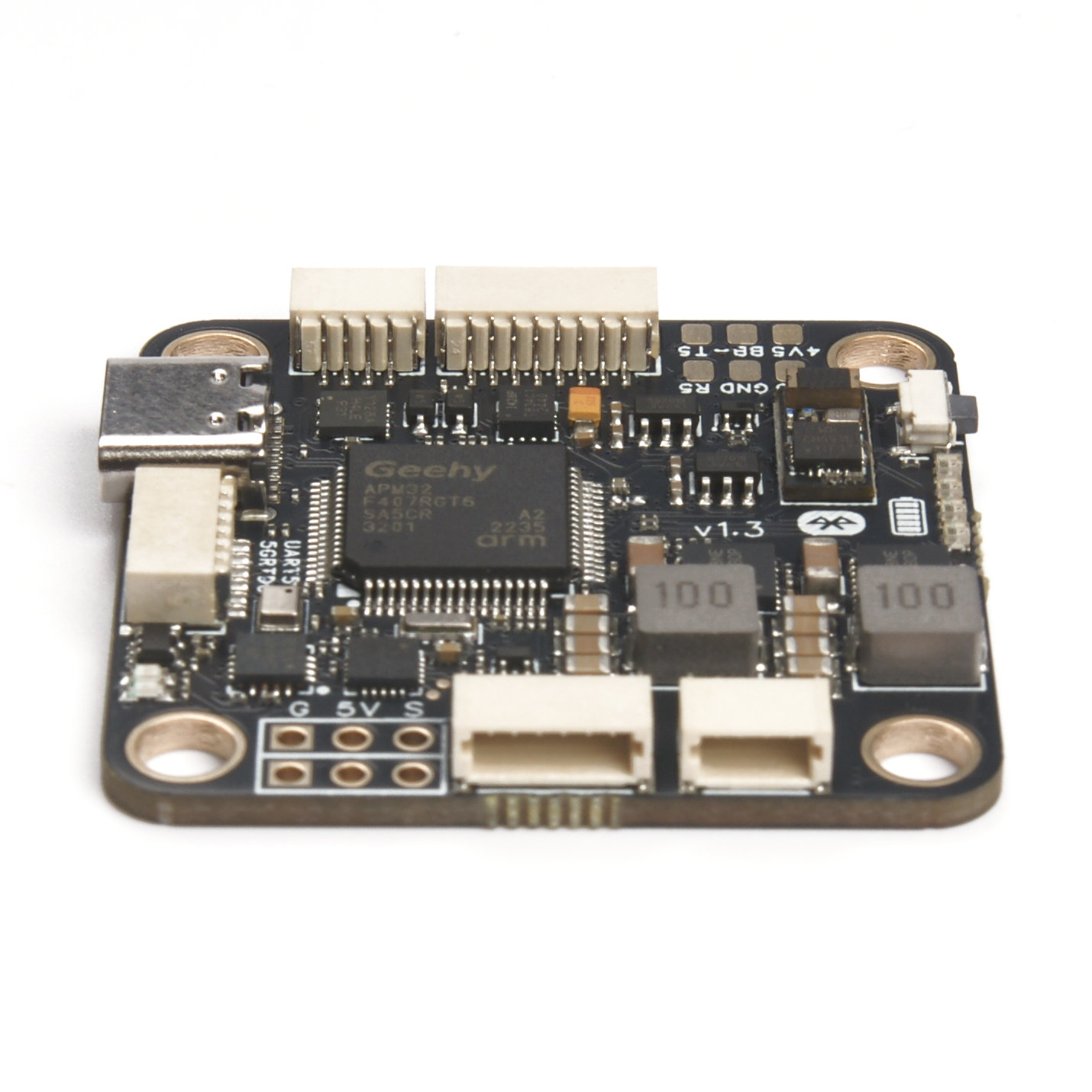

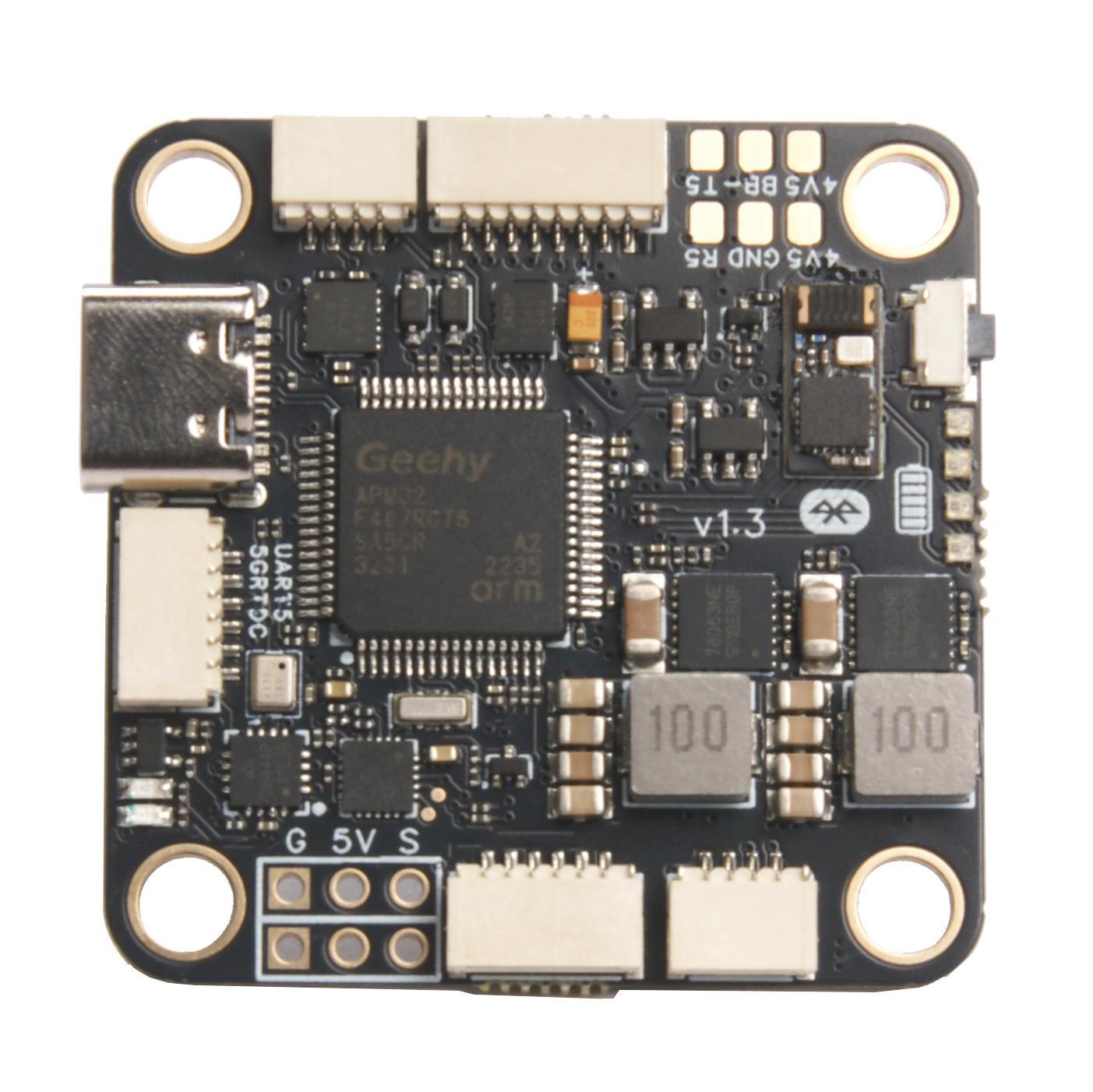

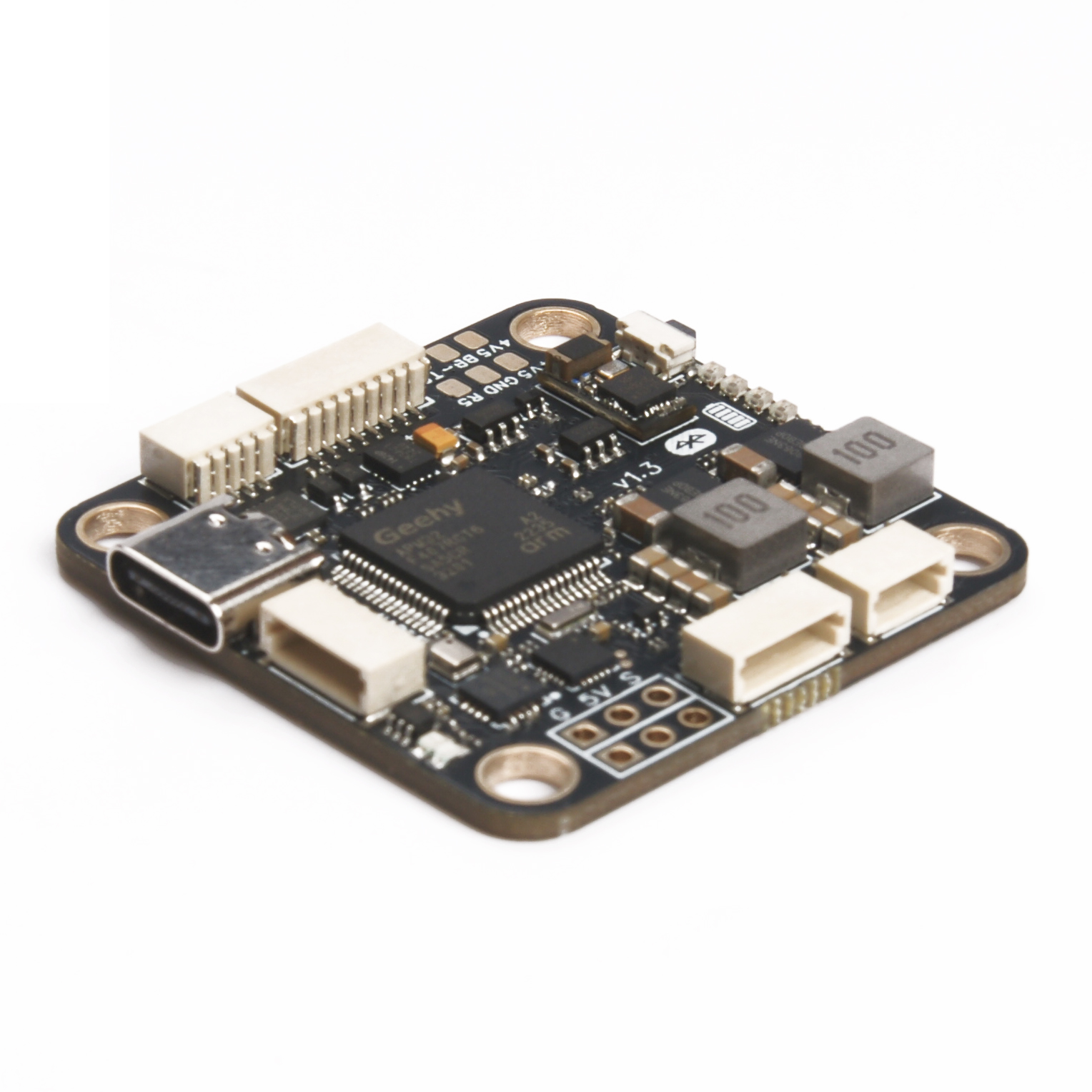

FC:

Product Name: F4 FC With Bluetooth connection and Two BECs

MCU: F405/F407  （also available as F722 MCU）

IMU(Gyro): ICM42688

USB Port Type: Type-C

Barometer: Optional

OSD: Yes

6-pin DJI Air Unit Plug: Yes

Blackbox: Optional 16Mbit

Current Sensor Input: Supported. For the 4in1 ESC in stack, use scale 168

Power Input: 3S - 8S Lipo

5V Output: 5V 2A

10V Output: 10V 2A

4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal: 4x Motor output

UART: 6 x UARTs

ESC Telemetry: Yes

I2C: Yes

Traditional Betaflight LED Pad: Yes

Buzzer: BZ+ and BZ- pad used for 5V Buzzer

BOOT Button: Yes

SBUS: Yes

Supported Flight Controller Firmware: BetaFlight(Default) / Arducopter / Inav   （F722 has no Arducopter firmware support）

Firmware Target Name: Firmware will be pre-flashed when order the FC

Mounting: 30.5 x 30.5mm( 4mm hole diameter)

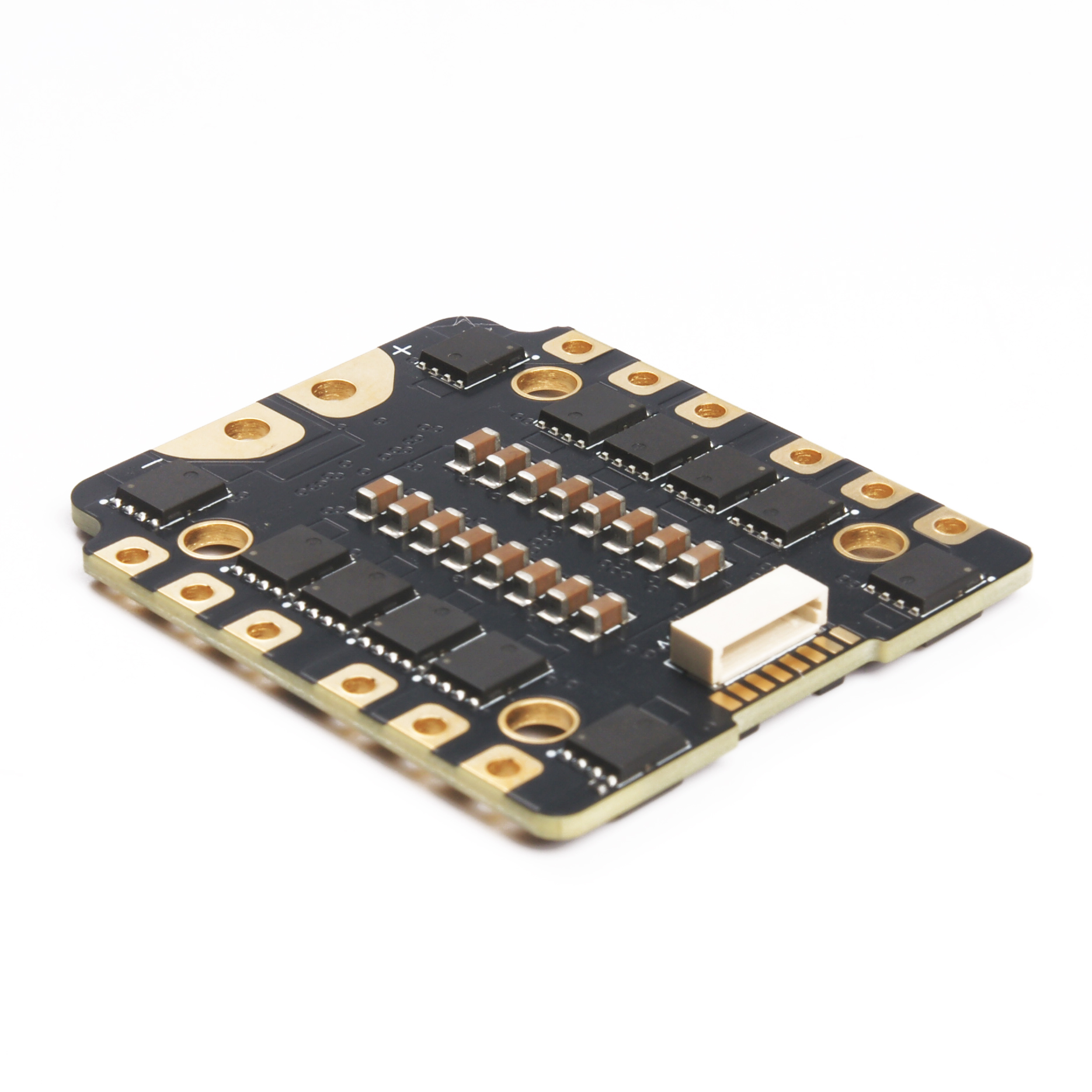

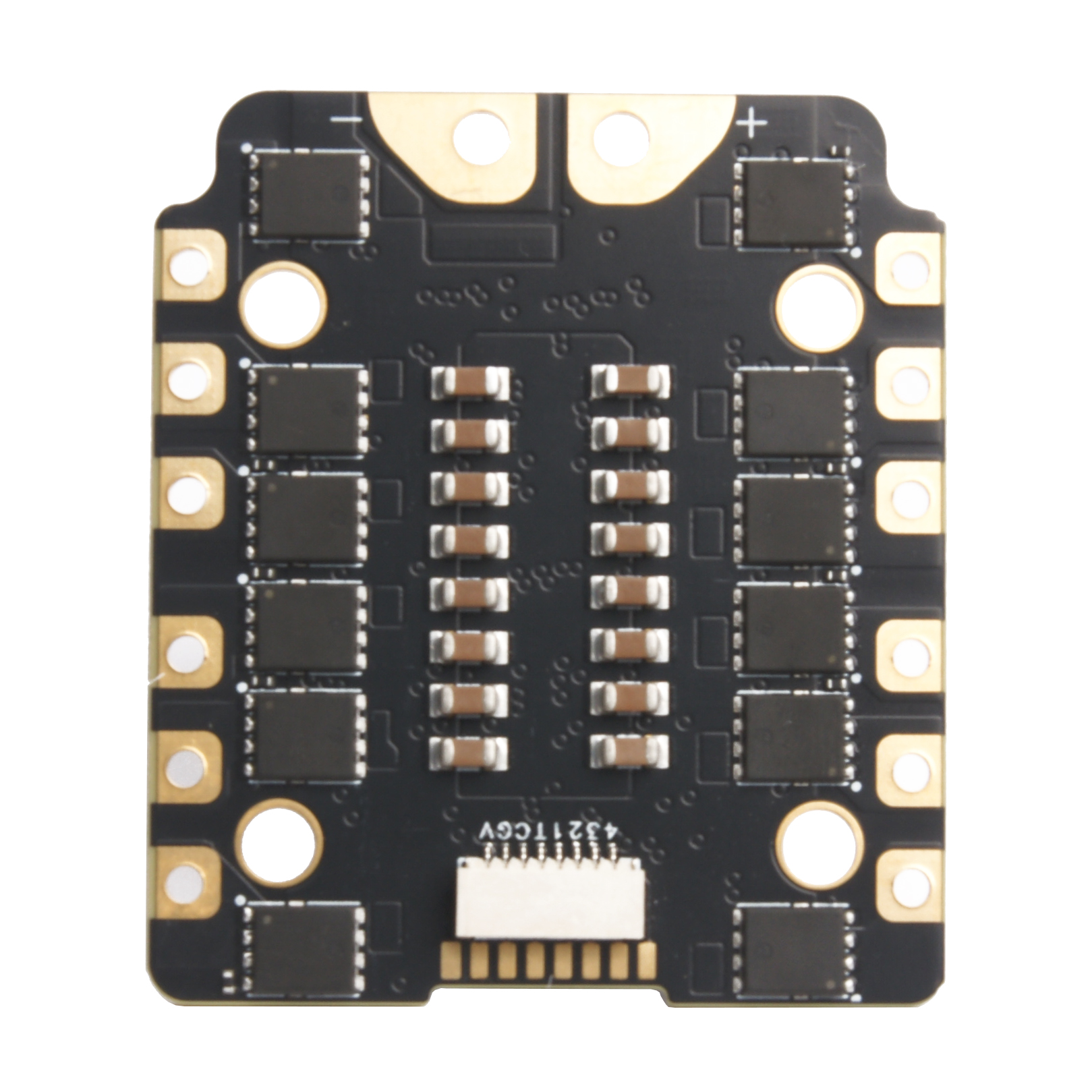

ESC:

Product Name: 65A 32bit 4in1 ESC

Firmware: 32Bit Bluejay compatiable firmware, optional AM32

PC Configurator Download Link: https://esc-configurator.com/

Continuous Current: 65A * 4

Burst Current: 75A (no less than 10s)

External Capacitor: 1000uF Low ESR Capacitor(In the package)

ESC Protocol: DSHOT300/600

Power Input: 3-8S LiPo

Power Output: VBAT

Current Sensor: Support (Scale=35 Offset=0)

ESC Telemetry: Optional

Mounting: 30.5 x 30.5mm( 4mm hole diameter)
