Specifications:

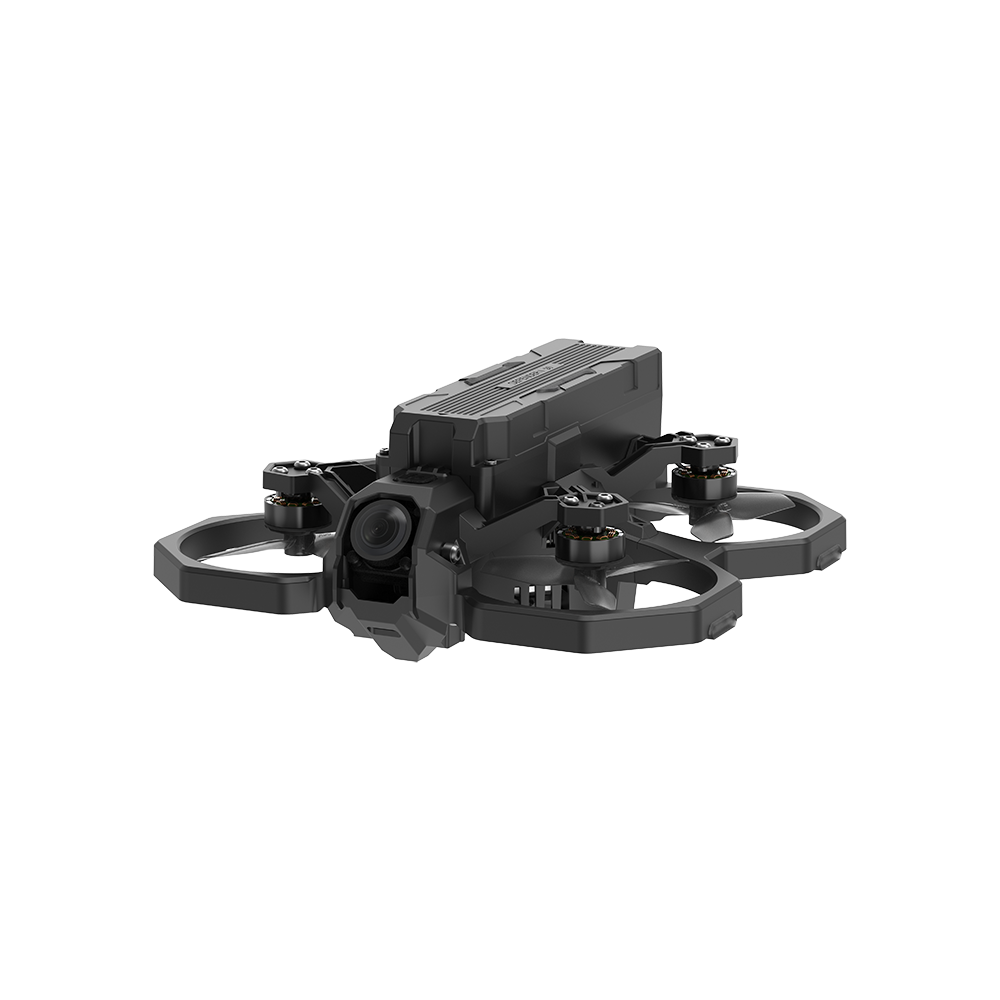

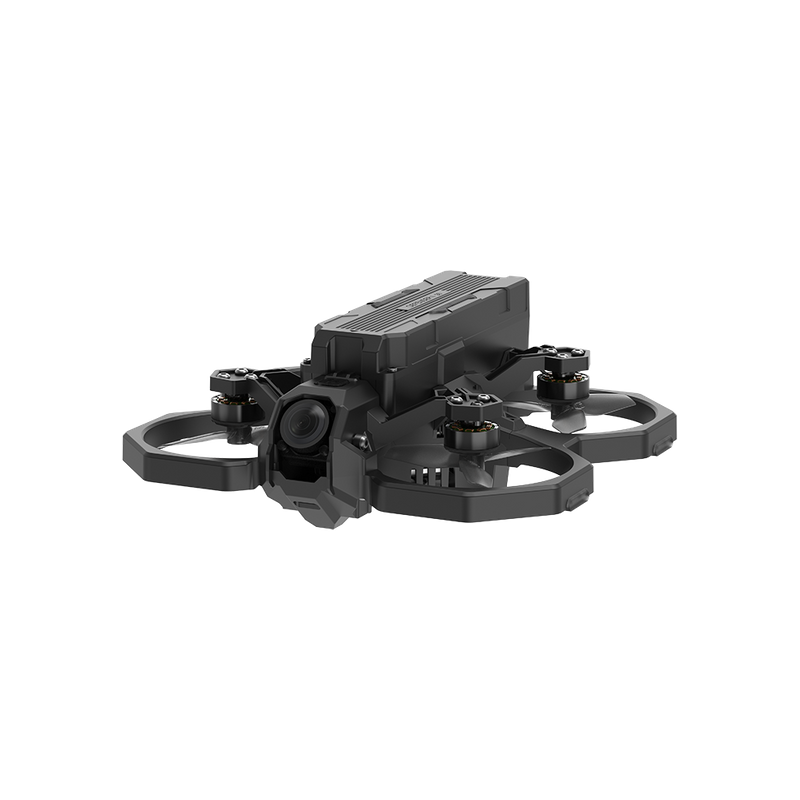

Product Name: Defender 20 O3 3S HD
Flight Electronics: Defender 16/20 F411 AIO
Video Transmission: DJI O3 Air Unit (Naked version)
Frame wheelbase: 97mm
Motor: Defender20 1204motors
Prop: Defender20 2020-3 props
Weight: 178±5g
Takeoff Weight: Approx. 247±5g (With 900mAh Battery)
Dimensions (L×W×H): 135x136x52mm
Max Speed: 75km/h (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 7.5 mins(with 3S 900mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: N/A
Product Name: Naked DJI O3 Air Unit
Communication Bandwidth： Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only)；5.725-5.850 GHz(RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

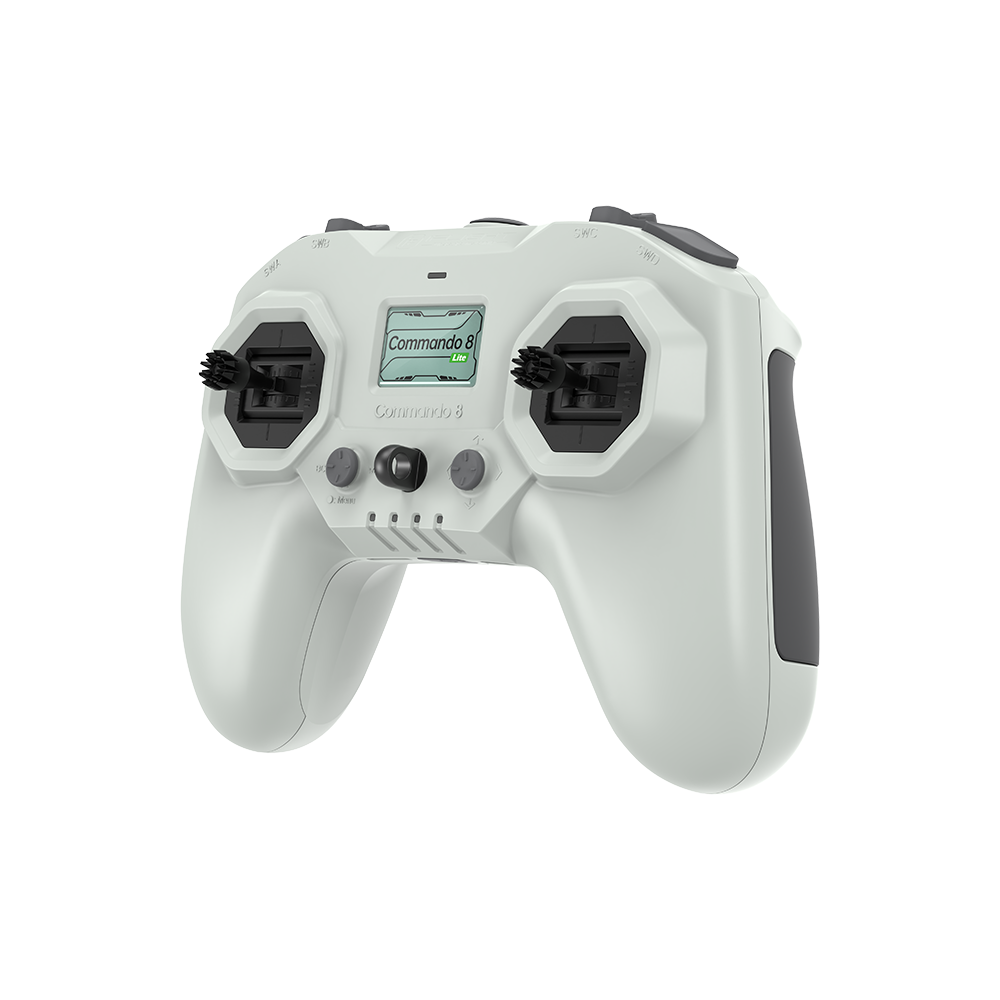

Product Name: Commando 8 ELRS Lite Radio
Weight: 275g (±10g）
Communication Frequency: 5.725-5.850 GHz
Transmission Power(EIRP):
2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm
Operating Current/Volts: 0.6 A @ 7.6 V
Charging Time: 1 hour and 30 mini
Operating Time: Approx. 8 hours
Operating Temperature Range: 0°C to 40°C（32°F to 104°F）
Charging Temperature Range: 5°C to 40°C（41°F to 104°F）

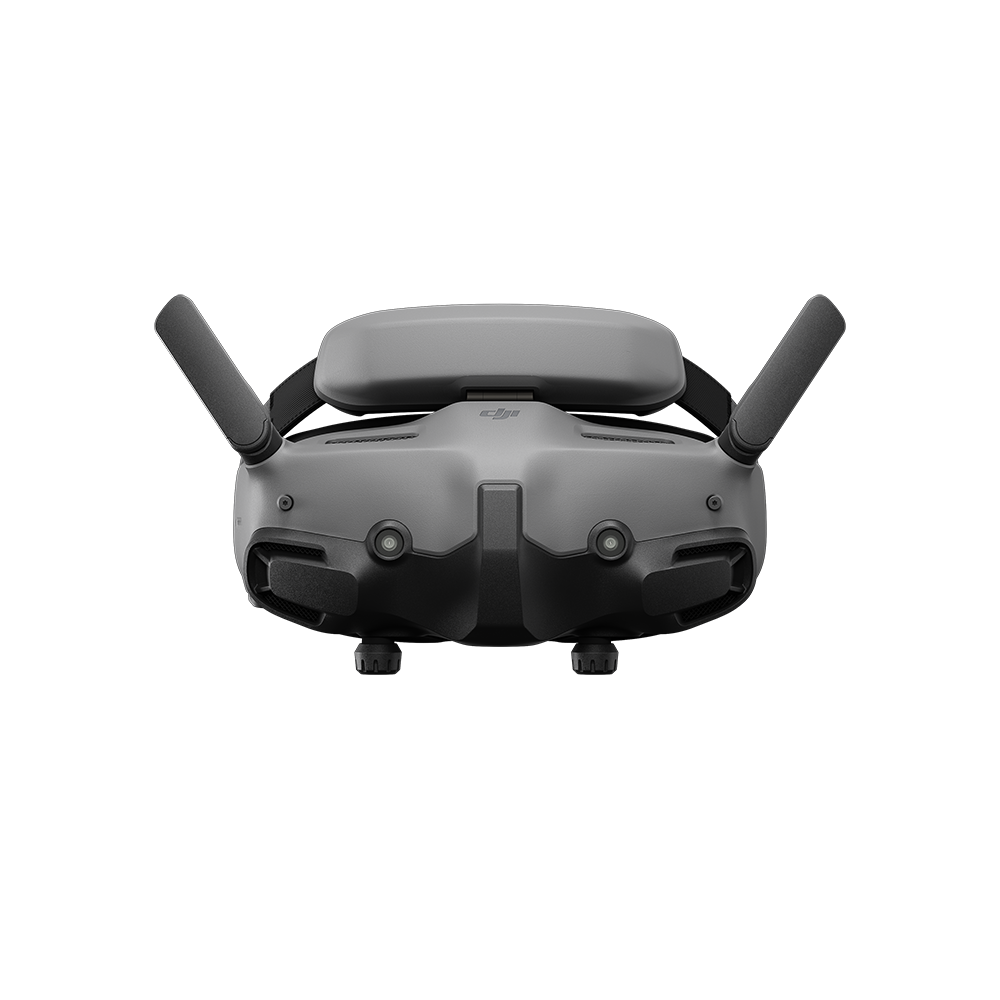

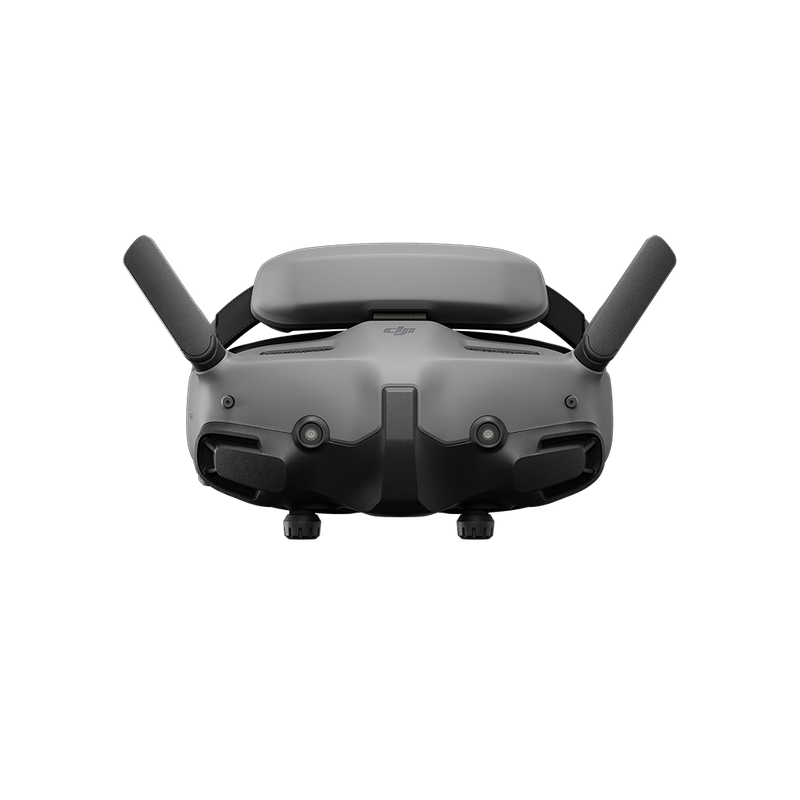

Product Name: DJI Goggles 3
Weight: Approx. 470 g (battery included)
Dimensions (L×W×H): With antennas folded: 170×109×112 mm (L×W×H)
With antennas unfolded: 205×109×112 mm (L×W×H)
Screen Size (single screen): 0.49 inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm
Diopter Adjustment Range: -6.0 D to +2.0 D
FOV (single screen): 44°
Communication Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz:< 33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)
5.1 GHz:< 23 dBm (CE)
5.8 GHz:< 33 dBm (FCC)< 30 dBm (SRRC)< 14 dBm (CE)
Max Video Transmission Bitrate: 60 Mbps
Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
Battery Voltage: 5.6-8.4 V
Supported SD Cards: microSD (up to 512 GB)

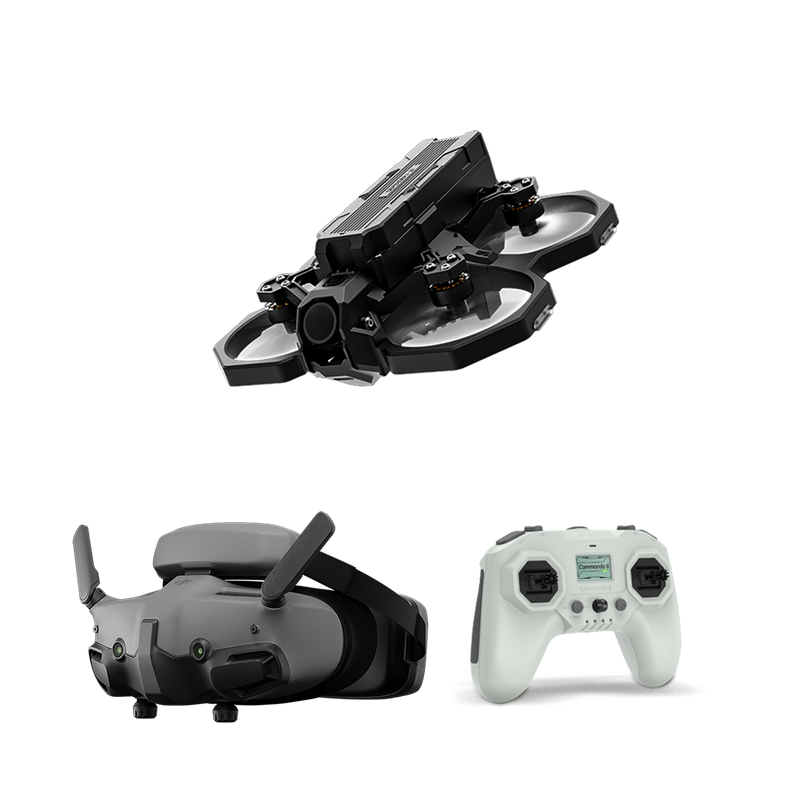

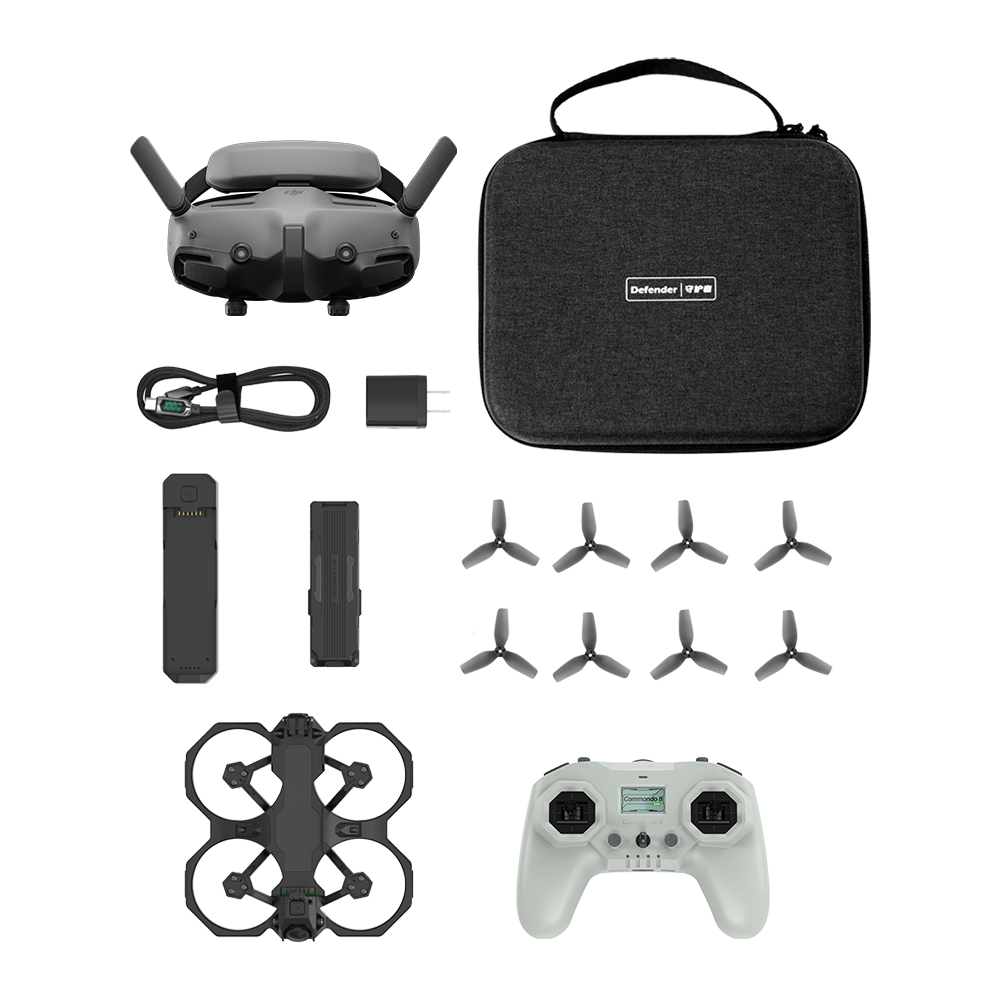

1 x Defender 20 O3 HD BNF
1 x Commando 8 ELRS Lite Radio
1 x DJI Goggles 3
1 x Defender 20 900mAh Battery
1 x Charging Adapter Board
4 x Defender 2020 Props (pairs)
1 x Propeller Removal Tool
1 x PD30W Charger
1 x Type C Digital Display Charge Cable
1 x Defender 20 Carrying Case
